Tech Data: Bolt Pattern To Hub: 5x115 mm(4.5\") & 5x120 mm(4.75\") · Bolt Pattern To Wheel: 5x112 mm · Adapter Center Bore: 74.1 mm · Adapter Thickness: 32 mm(1.25\") ? full specs belowFitment:Panoz:
- Esperante 01-07
- AIV Roadster 99-00
IMPORTANT FITMENT NOTICE: Fitment: ? wheels drilled for 5x112 are required - factory wheels no longer bolt on ? double drilled - match your factory pattern to one of the two hub patterns in the title In The Box: ? adapters wi? \'s chart confirms thread pitch only ? unsure? Message us and we\'ll verify fitment before you buy. ESPLUS Company Logo ESPLUS precision wheel hardware ESPLUS
Precision wheel hardware Store Home Hot Products response Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current message supportApplication context stays together Lug Nuts Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts Lug Bolts Ball Seat Lug Bolts Cone Seat Lug Bolts Wheel Locks Locker Lug Nuts Locker Lug Bolts Wheel Spacers Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts Wheel Adapters 5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter Precision wheel hardware · Fitment-first specification Dual Drilled Wheel Adapters Bolt Pattern Conversion To 5x112 Bolt-On 6061-T6 Aluminum Pre-Installed Hub Nuts New 5x112 Wheels Required Double Drilled Conversion Adapter To 5x112 - Hub-Side Nuts Pre-Installed - 90-Day Warranty

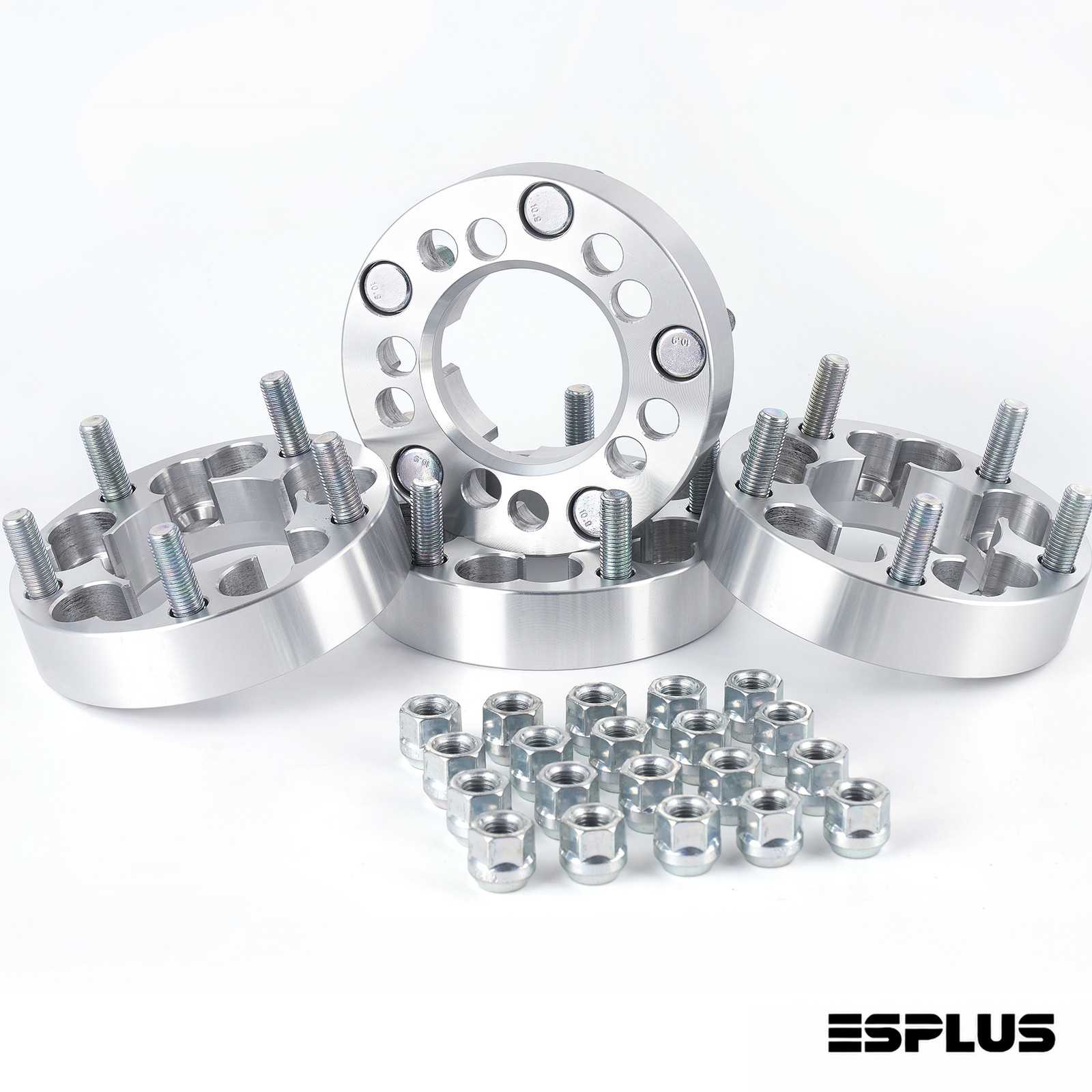

[4] Wheel Adapters Conversion 5x4.5\" to 5x112 1.25\" Thick for Panoz Esperante
Runs 5x112 Wheels On Your HubBuilt-In Studs, Bolts To The HubPre-Installed Nuts For The Hub SideReuse Your Factory Lug NutsNew 5x112 Wheels RequiredTwo Hub Patterns, One Plate Fitment-first engineering 01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph. 02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering. 03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement. Technical Data Numbers, not adjectives.
Every dimension your wheel cares about ? measured, verified, documented.
A 32mm Thick 5x115/5x120 to 5x112 Wheel Adapter Type · Double Drilled Adapter ×4 PCS/Set Bolt Pattern To Hub5x115 mm(4.5\") & 5x120 mm(4.75\")Bolt Pattern To Wheel5x112 mmAdapter Center Bore74.1 mmAdapter Thickness32 mm(1.25\")Adapter Outer Diameter150 mmStud Thread PitchM12x1.5Color and FinishChromeMaterial MadeT-6061 AluminumQuantity Per Order4 PcsCalifornia Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Vehicle Compatibility Fits your car.
Verified, not guessed.
Bolt-on double drilled conversion adapter giving the wheel a 5x112 bolt circle; requires 5x112 wheels - your factory pattern must match one of the two hub patterns in this listing\'s title.
1Brands 2Vehicles 1Regions NA United States 1 Featured Panoz United States · 2 models Bolt Pattern (PCD) Conv. New PCD Wheel Required5x112 HubCentric Support Use Same Thread Fastener ModelRegionYear Range AIV Roadster US 1999-2000 Esperante US 2001-2007
Not sure? Message us ? we verify your exact year & model before you buy.
Product Display A closer look at the product.
Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.
Check Before You Order Some fitment details only your vehicle can tell you.
The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.
Why It\'s Built Different Performance you can torque down. Bolt Pattern Conversion To 5x112
The plate bolts to your factory hub and gives the wheel a true 5x112 bolt circle, opening wheel styles your original pattern cannot take; the hub fitment sold here is carried in this listing\'s title.
6061-T6 Aluminum, Machined Flat Faces
The plate is 6061-T6 aluminum with both mounting faces machined flat, so hub, adapter, and wheel clamp on true, even surfaces.
Grade 10.9 SCM Steel Press-In Studs
Wheel-side studs are Grade 10.9 SCM carbon steel pressed into the plate and cut to the same thread as your factory studs, so your original lug nuts thread straight on.
Double Drilled Hub Side
One plate machined with two hub-side bolt circles; the exact patterns this listing serves are named in its title, so a single adapter covers both hub layouts.
Complete Hub-Side Hardware Included
Open nuts arrive pre-installed on the adapter studs - remove them, bolt the plate to your hub with them, then refit your factory lug nuts for the wheel. Nothing extra to buy for the hub side.
How to Install 3 steps to torque.
Follow the sequence below ? fitment is everything, so read Step 1 carefully.
01 Mount Adapter To Hub
Remove the pre-installed open nuts. Clean the hub face, set the adapter on the drilled circle that matches your bolt pattern, and thread those nuts onto the vehicle studs by hand.
Grit between hub and adapter keeps the plate from seating flat. 02 Torque In A Star Pattern
Tighten the hub-side nuts evenly in a star pattern until the adapter sits flat against the hub with no gap at any point on the plate.
A plate that does not sit flush must come off - find and clear the obstruction first. 03 Fit Wheel And Lug Nuts
Hang your new 5x112 wheel on the adapter studs, refit your original lug nuts, and torque in a star pattern to your vehicle\'s wheel spec. Recheck both nut sets after the first drive.
Confirm your lug nut seat matches the new wheels before final torque. 01 / 4 4 photos in this guide — tap the arrows or dots to see every step Important Fitment Notice Fitment:
- wheels drilled for 5x112 are required - factory wheels no longer bolt on
- double drilled - match your factory pattern to one of the two hub patterns in the title
In The Box:
- adapters with open nuts pre-installed on the studs
- piece count for this listing is in the title
Install:
- lug-centric: torque hub nuts in a star pattern until the plate sits flat
- recheck torque after the first drive
\'s compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through before ordering if anything is unclear.
Why ESPLUS Clarity before checkout.
Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.
Specification First
Thread, seat, dimensions, finish and quantity are organized for direct comparison.
Fitment in Two Layers
Vehicle compatibility and wheel-specific hardware checks are presented separately.
Component-Level Detail
Combination listings keep each component\'s quantity, gallery and technical data distinct.
Pre-Purchase Support
Message us through with your year, model, wheel and current hardware details.
Questions, answered Check the details that decide fit. Will this wheel hardware fit my exact vehicle?Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement. How do I confirm thread pitch and seat type?Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel. What should I verify on aftermarket wheels?Confirm the wheel\'s seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone. What torque specification should I use?Use the vehicle or wheel manufacturer\'s applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation. Where can I find current shipping and return terms?Use the Shipping, delivery and Returns sections of this listing as the current order-level terms. Those listing controls take priority over general informational text. Shipping · Returns · Fitment Order terms, kept current.
The controls attached to this listing are the source of truth for the transaction.
Shipping
Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the order when available.
Returns
The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the purchase record.
Fitment Responsibility
Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through before ordering.
