Heavy Duty 2-3 Shift ValvePart No.77754-41includes 10 check balls
When the GM 4L60-E family of transmissions evolved from the 700-R4, the overrun cluch apply no longer applied in 1st and 2nd when acclerating from a stop in D3 shifter position. This change was made to improve coastdown drivability in D3, but had the side effect of reducing reduced the torque capacity of the input section.
For greatly improved input sprag and Forward clutch durability, Sonnax heavy-duty shift valve 77754-41 for 4L60-E, 4L65-E and 4L70-E units will apply the overrun clutch in D3 1st, 2nd and 3rd gears.
- Improves input sprag and Forward clutch durability
- Critical upgrade for all heavy-duty and performance vehicles
- Easy to install

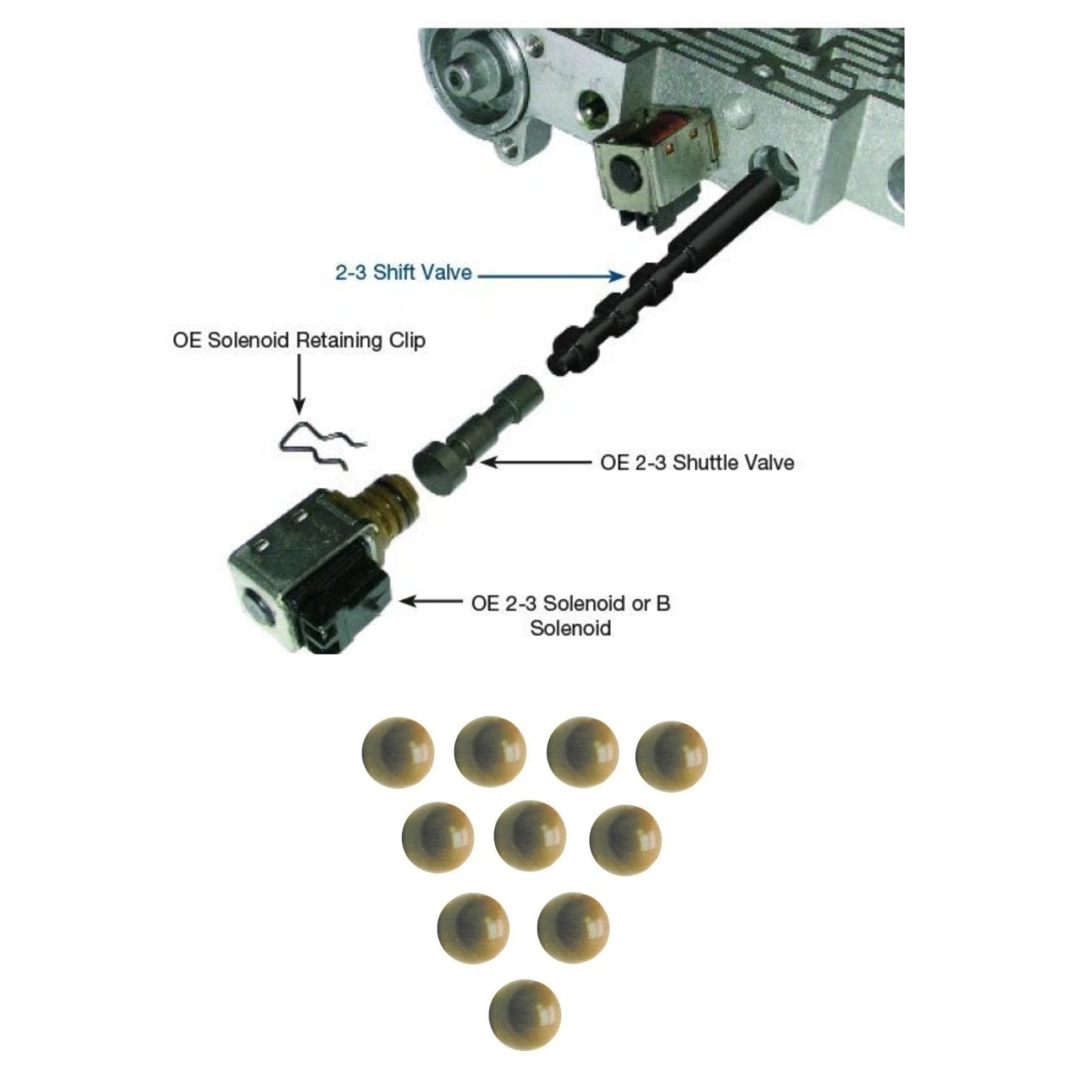

- Also installation kit included see steps:1. Remove and discard the OEM 2-3 shift valve.2. Retain all other OEM bore components.Installation / Assembly Steps:1. Drill through the indicated casting wall with a 1/8\" drill bit OR make a notchin the gasket surface at the same location. (This provides D3 oil to applyoverrun clutch in all manual gears.)2. Install the Sonnax replacement valve, using the photo (see Figure 1) for proper orientation.
