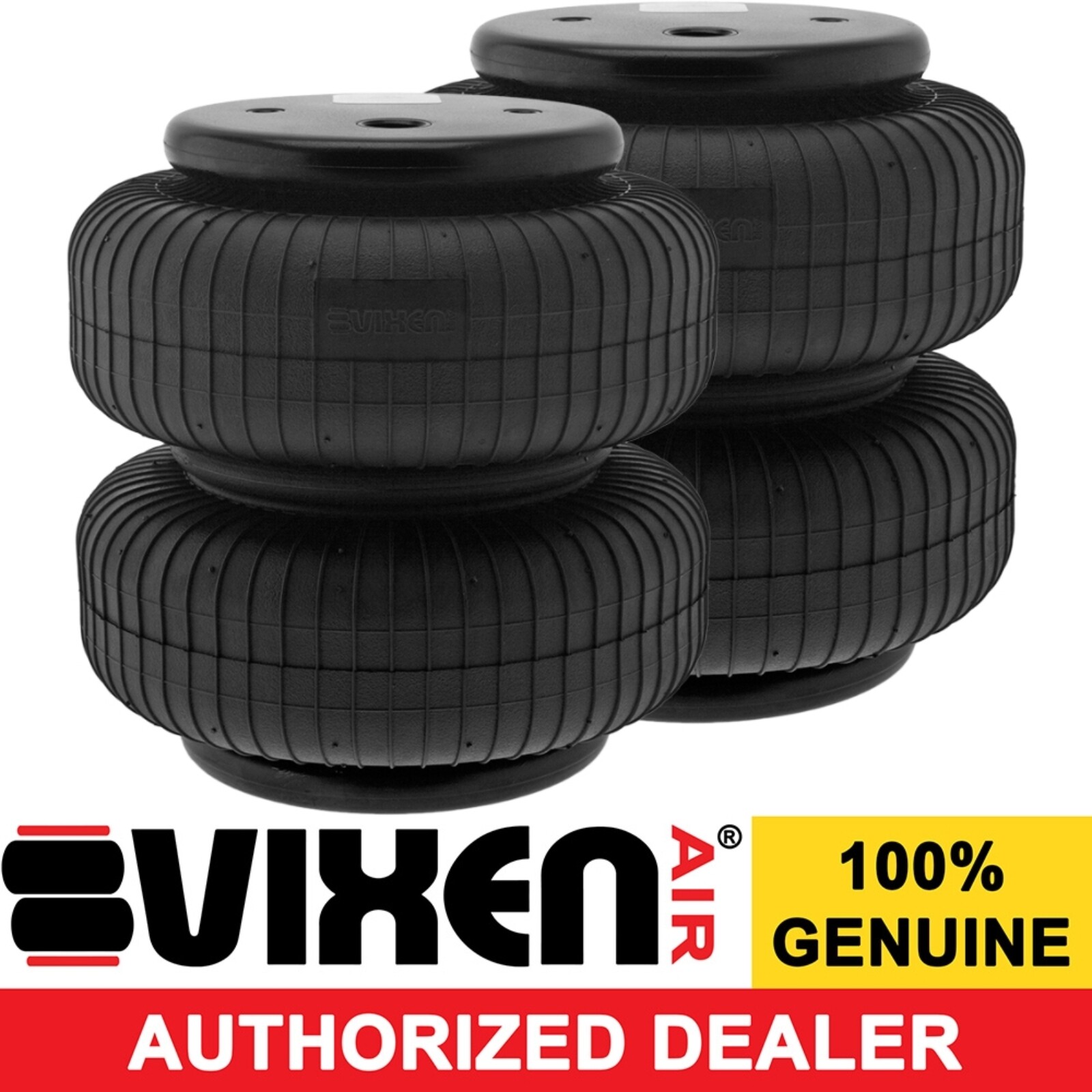

HookedOnTronicsBuys VXD3800DP Suspension Air Spring Dual PK½" NPT Single Air Port, 3/8-16 UNC Mounting Threads, 600 PSI Maximum Restrained Pressure, 349-3800 lbs Load Range, 9.7" Usable Stroke, More Responsive than Comparable Sized Air Springs (price is per pair)BRANDin ORIGINAL BOX
These heavy duty air bags can hold up to 600 PSI and they are extremely durable and resistant to damage from wear and tear, inflation shock, or just outright abuse. Their outstanding construction provides extreme durability and reliability. Featuring a large ½" air port for fast response and a stroke of 9.7" for the best performance.Ideal for those looking for additional load capacity. Definitely air bags designed to outperform!
Dual Value Pack
It's always recommended that you match your front two or rear two air springs in a 2 or 4-way set up. Buyingtwo at the same time not only saves you money, but ensures you get pairs of identical air springs.
½" NPT Air Port
These air springs feature an extra large ½" NPT port for installation. Be sure to use ½" air line for maximum performance.
3800-Style Bolt Pattern
When used in a 4 spring setup on a truck or SUV, 3800-style bags are normally used for the rear two springs. Featuring top bolt points that are 3-½" apart and three bolt points at the bottom that are 1-¾" apart.
- Heavy Duty Suspension Air Spring (Dual Pack)
- ½" NPT Single Air Port
- 3/8-16" UNC Mounting Threads
- 600 PSI Maximum Restrained Pressure
- 349-3800 lbs Load Range
- 9.7" Usable Stroke
- More Responsive than Comparable Sized Air Springs
- Dimensions:
- Height: 4-½" (Min) - 12-¾" (Max)
- Diameter: 9-¼" (0 PSI) - 10-¼" (100 PSI)
Never exceed more than truck manufacturers maximum load recommendations.
GeneralLoad Range349 - 3800lbsMaximum Pressure600 PSIPSIUsable Stroke9.7"Force to Collapse (Min Height)80lbsAir Port1 x ½ in. NPTMountingTop Fastener2 x 3/8 in. UNCBottom Fastener3 x 3/8 in. UNCDimensionsMinimum Height4-½"Maximum Height12-¾"Diameter (0 PSI)9"Diameter (100 PSI)10-¼"
WARRANTYVixen Air warranties this product to be free from defects in workmanship and materials for a period of (one) 1 year following the date of purchase.
