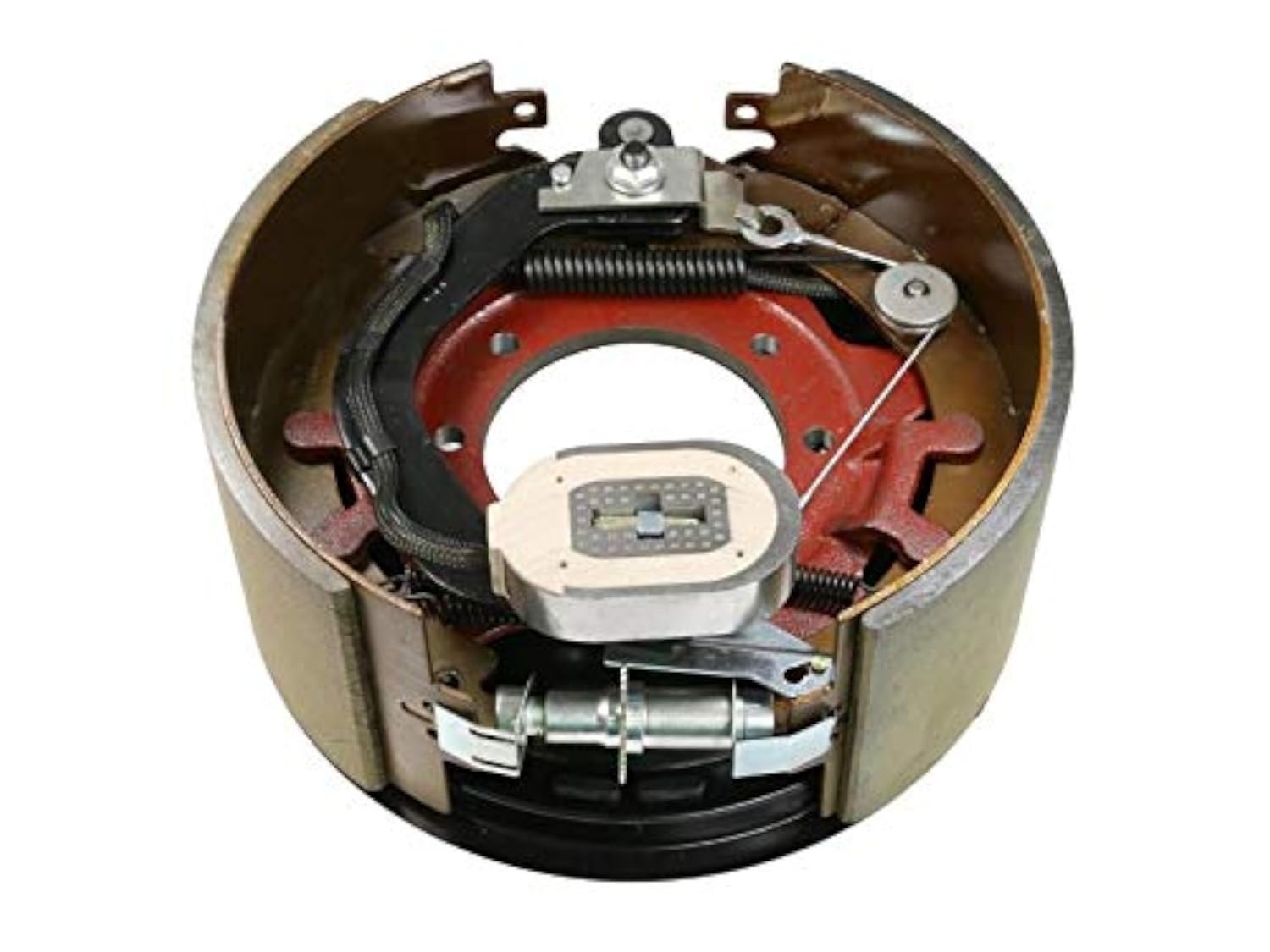

TRAILER BRAKE ASSEMBLIES / ELECTRIC / HEAVY DUTY 12.25" x 5" Left Hand Electric Trailer Brake Assembly - 12K-15K Capacity
A heavy-duty, forward self-adjusting (FSA) electric brake backing plate designed for 12,000 lbs to 15,000 lbs axle applications with a 7-bolt flange mounting pattern.
Part Number: BK-12HDE-01
12.25" x 5" Size
12K-15K Capacity
Overview
This BK-12HDE-01 electric brake assembly is a high-quality aftermarket solution designed for heavy-duty trailer applications where high-capacity stopping power is required. Engineered with an electromagnetic actuator, this assembly expands the 5-inch wide shoes against the drum for consistent performance under load. As a Forward Self-Adjusting (FSA) model, it eliminates the need for manual adjustment, maintaining optimal shoe clearance automatically during forward operation.
R&P Service Insight
This 7-bolt configuration is the industry standard for 12K and 15K axles. Proper orientation is critical for safety.
- Left Hand Orientation: Specifically for the Driver's Side; magnet arm must point toward the front of the trailer.
- Self-Adjusting: FSA technology ensures the brakes don't lose effectiveness as the shoe lining wears down.
- Heavy-Duty Build: Weighing nearly 28 lbs, this is built to handle the heat and stress of 15,000 lb axle loads.
R&P Knowledge Hub
Compatibility: Replacement for industry standard 23-446. Works with standard 12.25" drums designed for 5" shoes.
Vehicle / System Fit: Heavy-duty trailers utilizing 12,000 lb to 15,000 lb axles (Goosenecks, Dual-tandem equipment trailers, etc.).
Installation Notes: Requires a 7-bolt mounting flange. Bolts to the axle with a 60–90 ft-lb torque requirement.
Performance Insight: Electric magnets are non-polarity sensitive, making wiring straightforward, though heat-shrink connectors are highly recommended to prevent road salt corrosion.
Brand & Fitment Note
Selling Brand: R&P Carriages Aftermarket Replacement
Application Reference: References to part numbers such as 23-446 describe compatibility and application style for industry-standard 12K-15K running gear.
What This Means: This is a high-grade aftermarket assembly designed to match the fitment and function of original equipment on trailers with 12.25" x 5" brake systems.
Before Ordering: Verify you have a 7-bolt flange. Standard 7K axles use 5 bolts and will NOT accept this assembly.
R&P Repair Insight
Maintenance is the key to longevity for electric drum brakes. Always keep the friction surfaces "dry."
- Contamination Check: Never use grease or oil on shoes. Use only dedicated Brake Cleaner spray.
- Magnet Wear: Inspect the magnet face regularly. If copper coils are visible, the magnet has reached its wear limit.
- The Burnishing Step: New shoes must be seated. Perform 20–30 controlled stops (40mph to 20mph) after installation to "mate" the shoes to the drum.
Features
FSA Self-Adjusting
Automatically adjusts the shoe position as they wear, ensuring consistent stopping power without manual clicking.
15,000 lb Rating
High-capacity construction designed specifically for the rigors of heavy 12K and 15K axle loads.
7-Bolt Mounting
Standard heavy-duty mounting pattern for secure attachment to high-capacity axle flanges.
Left-Side Specific
Optimized shoe engagement for the driver-side (Left) rotation to provide maximum leverage.
Specifications
Specification
Detail
Part Number
BK-12HDE-01
Brake Type
Electric / Electromagnetic
Shoe Dimensions
12.25" x 5"
Axle Capacity
12,000 lbs - 15,000 lbs
Bolt Pattern
7-Bolt Flange
Side
Left (Driver Side)
Weight
Approx. 25–28 lbs
Adjustment
Forward Self-Adjusting (FSA)
Fitment / Application
Category
Details
Axle Type
12K to 15K Heavy Duty
Flange Bolt Circle
3.75" center-to-center (adjacent)
Center Hole
4.75" (Standard Heavy Spindle)
Notes
Verify orientation: Magnet arm must face the front of the trailer for proper shoe expansion.
Included Components
Quantity
Item
1
Complete Backing Plate Assembly (Left Hand)
2
Electric Brake Shoe & Lining (Pre-installed)
1
Electric Magnet Actuator (Pre-installed)
1
FSA Self-Adjusting Hardware Kit (Pre-installed)
Set
Internal Springs and Actuator Lever (Pre-installed)
IMPORTANT SAFETY NOTE: Ensure the trailer is properly supported by heavy-duty jack stands before removing the drum. Verify the 7-bolt mounting pattern matches your axle flange before installation. Burnishing the brakes (20-30 stops) is required to seat the new shoes to the drum for full braking power.
