12 Inch Uconnect 5 Radio Upgrade Wiring Harness For 2019-2024 Ram 1500 2500 3500:
$76.22

1. About this item

Radio upgrade integration wiring kit For 2019-2024 Ram 1500, 2500, and 3500 trucks.
Supports conversion from a 5 inch, 7 inch, or 8.4 inch Uconnect 3, 4, or 4C radio/display to a 12 inch Uconnect 5.
Six-piece kit includes the main harness plus screen, LVDS, USB, GPS, and WiFi/Bluetooth adapters.
Black wiring components are intended for the center-front radio and display area.
This kit does not make a Uconnect 5 screen plug-and-play; confirm the complete conversion requirements before ordering.

2. Vehicle Fitment

For 2019-2024 Ram 1500 with a 5 inch, 7 inch, or 8.4 inch Uconnect 3, 4, or 4C radio/display.
For 2019-2024 Ram 2500 with a 5 inch, 7 inch, or 8.4 inch Uconnect 3, 4, or 4C radio/display.
For 2019-2024 Ram 3500 with a 5 inch, 7 inch, or 8.4 inch Uconnect 3, 4, or 4C radio/display.

3. Reference Part Numbers

No confirmed OE/reference number was supplied. Identify this kit by the current Uconnect generation, source screen size, target 12 inch Uconnect 5 system, and connector functions.

4. Product Description

This integration kit groups the wiring adapters used when changing a supported radio/display setup to a 12 inch Uconnect 5 system. The main harness is accompanied by dedicated screen, LVDS, USB, GPS, and WiFi/Bluetooth connections.

Compare the supplied connector functions and listing photos with the planned radio and screen combination. This wiring kit alone does not make the Uconnect 5 conversion plug-and-play.

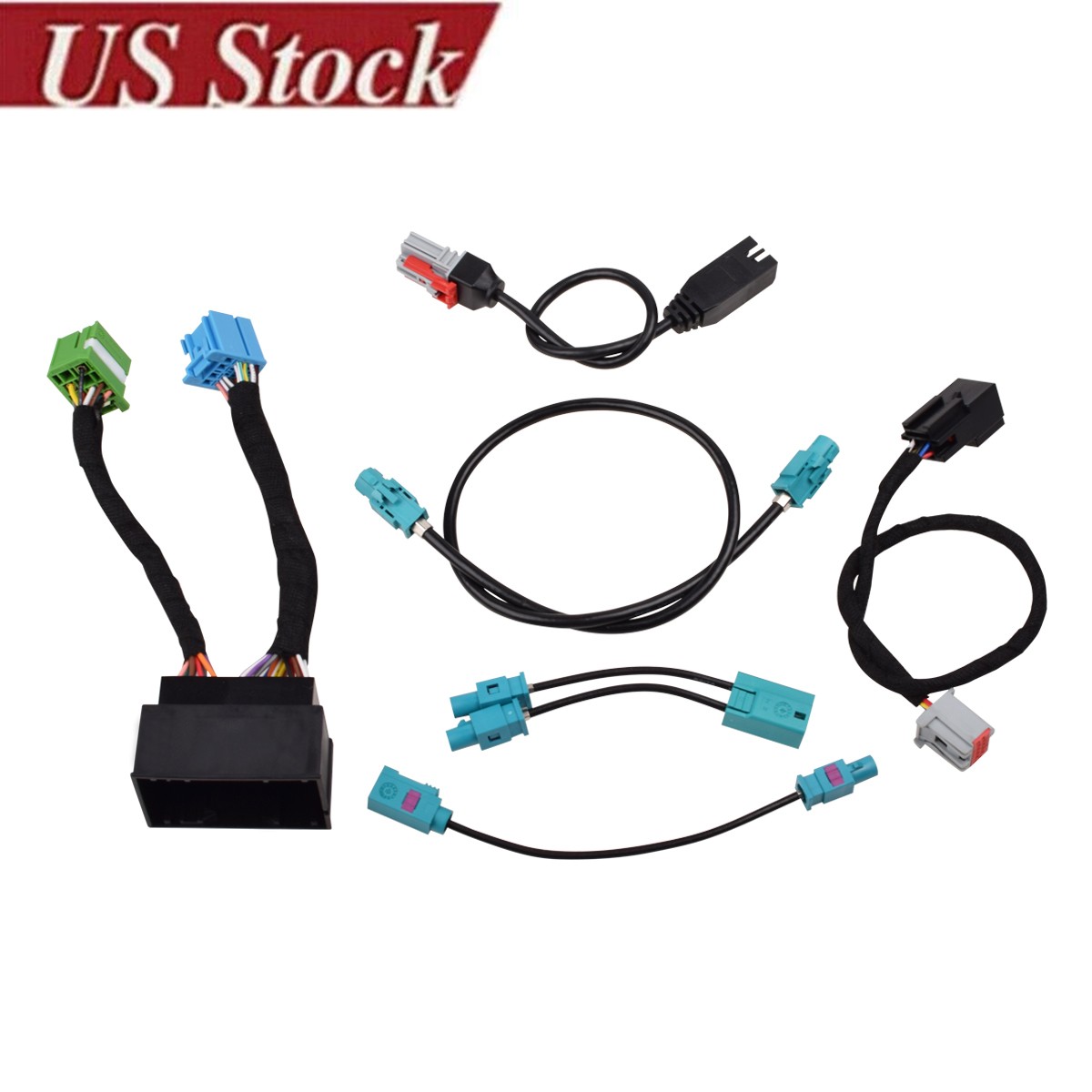

5. Package Includes

1 main Uconnect 5 wiring harness
1 Uconnect 5 screen adapter harness
1 LVDS cable
1 USB adapter harness
1 GPS adapter harness
1 WiFi/Bluetooth adapter harness

6. Important Fitment Note

Confirm the current screen is 5 inch, 7 inch, or 8.4 inch and uses Uconnect 3, 4, or 4C.
Confirm the intended replacement is a 12 inch Uconnect 5 system.
Compare all connector shapes and functions; this harness does not make the screen plug-and-play.
