Specifications-1

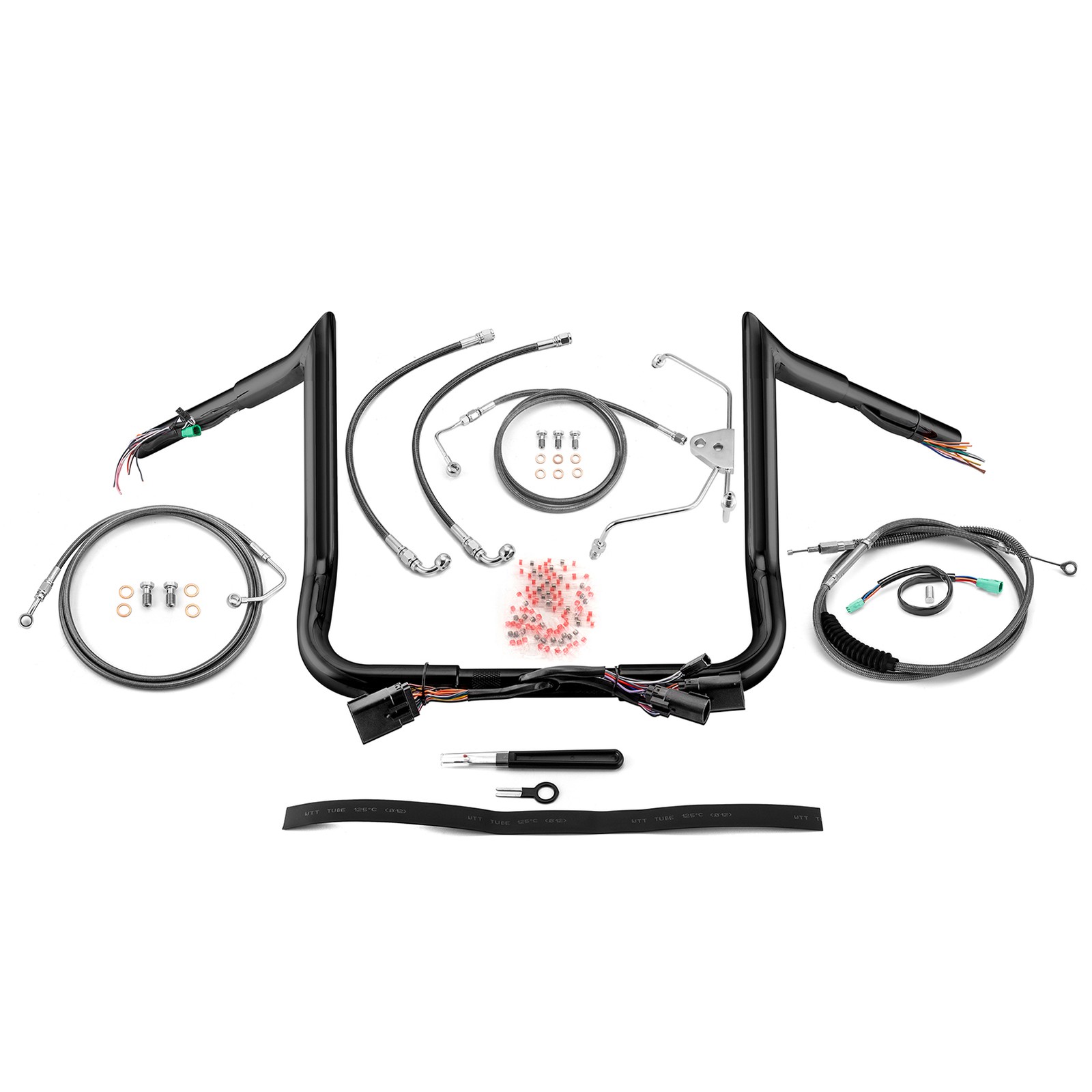

Item：Black Handlebar Cable Kit For 2009-2013 For Harley touring 12"-14" Handlebar ABS
Used On：12"-14" Handlebar (ABS)
Color：Black
Inner tube material：Teflon（PTFE,Temperature resistance from -70°C to 260°C）
Outer tube material：Polished Stainless steel preparation
Outer transparent tube material: PVC
●Throttle by Wire Extensions Specifications
Plug-&-Play
Overall Length：12"(304.8mm)
●Clutch cable Specifications
Overall Length：66 11/16"(1694mm)
Replace for Clutch Cable Part Number : #38630-88 、#38900-08、 #38667-08A
●Upper Hydraulic ABS Front Brake Line Specifications
Overall Length: 69"(1752.6mm)
Replace for Upper Front Brake Line Part Number: #41679-09
●Lower Hydraulic ABS Front Brake Line Specifications
Length-A：58"（1473.2mm）
Length-B：15"(381mm)
Travel Length：2 .75"（69.85 mm）
Replace for Upper Front Brake Line Part Number：#40612-09
Features
【Compatibility】
Our cable Kit is compatible with Milwaukee-Eight 2009-2013 For Harley Touring with ABS. Please check the detailed fitment list before purchasing.
【Convenience】
This line kit is designed to save you time and hassle when installing handlebar cables and lines,including the TBW、clutch and brake cables as well as the necessary hardware.
【Premium Quality】
Inner PTFE tubing braided with stainless steel reinforcement embedded in a tough PVC outer protector offers exceptional protection. The PTFE material is resistant to temperatures ranging from -70℃ to 260℃. Our kit offers a longer lifespan and increased durability, ensuring reliable performance for years to come.
【Better Work】
The hydraulic line hose will greatly improve your effectiveness because there is almost no expansion under pressure, less soft than rubber hoses at all times. This advantage reduces braking distances and increases the efficiency of the calipers;Easier and more responsive clutch squeezing.
【Easy To Use】
Direct replacement for the stock short/old line. The banjo fittings are removable and can be replaced with fittings of the desired angle and size according to your needs. Brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance.
【Package Includes】
1x Throttle by Wire Extensions
1x Clutch cable
1 x Upper ABS hydraulic front brake line
1 x Lower ABS hydraulic front brake lines
Includes necessary mounting Handlebar
Style: Bagger Bar-Sharp
Pre-wired: Yes
Color: Gloss Black
Process: Triple （copper & nickel plating & black powder coated)
Material: Steel
End Rise：12 "
Height: 15 "
Clamp area Diameter: 1 "
Clamp area Width: 5.5 "
knurl center Diameter:3.5 "
Center Width: 15 "
Bar Diameter: 1.25 "
Grip Area Bar Diameter: 1 "
Overall Width: 36.5 "
Pullback/Sweep: 12 "
Condition: Aftermarket Brand New
Features
【Fitment】
This PRE-WIRED Handlebar fits for 2008-2013 Street Glide/Electra Glide/Ultra Limited. (Please check the fitment list before purchasing0
Note: The End Rise is 12 ", and the height is 15 ", if you have questions about the height,please feel free to contact us by email.
【Easier & Faster Wiring】
Our Meathook Ape bar handlebar is PRE-WIRED and Plug & Play design, also notched for TBW for easier and faster installation.The inside of the handlebars are laid out pre-installed with switch cables 、 electronic throttle extensions and Heated Grips Wiring Harness extension, which can reduce the likelihood of wire damage or entanglement. the notched-for TBW design allows you to install the electronic throttle, offering a hassle-free installation process.
【Durable Construction】
Made from high-quality solid steel materials and a corrosion-resistant process, this handlebar is built to last. It is designed to withstand the toughest conditions, providing you with reliable performance even in harsh environments.
【Comfortable & Stylish】
With its ergonomic design and comfortable grip, this handlebar provides riders with improved handling and control, making for a better overall biking experience.The exterior takes on the Bagger Bar-Sharp design, and its sleek and elegant design adds an extra flair to your bike that stands out on the road.
【Package Includes】
1 x PRE-WIRED Bagger Bar-Sharp Handlebar
Fitment List
Fit for 2009-2013 Street Glide/Electra Glide
Compatible with Electra Glide Classic FLHTC · 2009–2013
Compatible withElectra Glide Standard FLHT · 2009
Compatible withElectra Glide Ultra Classic FLHTCU · 2009–2013
Compatible withElectra Glide Ultra Limited FLHTK · 2010–2013
Compatible withStreet Glide FLHX · 2009–2013
