Specification：
Internal dimension (mm): 460 * 160 * 320
Color: grey
Voltage (V): 12V
Current (A): 60-80A
Power (W): 960W
Rated cooling capacity (W): 1000-3000W
Speed range: 1000-3000
Applicable vehicle type: common to all vehicles
External dimension (mm): 550 * 240 * 440
Material: PC plastic
Performance coefficient: ≥ 2.5
Refrigerant: HFC134a
Refrigerant oil: POE68
Refrigerant charge (g): 600
Power cord specification (mm2): 3.5 m * 8
Compressor type and model: electric scroll compressor
Features：
1. Energy saving and money saving: Usually, the driver runs the engine for several hours to use the air conditioner when parking or taking a rest at night, which is harmful to the environment and wastes a lot of fuel, and wears out the engine faster. The parking air conditioner is powered by truck batteries, without an engine (thus protecting the engine from wear), which saves energy and fuel.
Remarks: diesel price: 1.3 USD/L, fuel consumption: 3.5L/H, working time: 8H/day, annual working time: about 180days. Fuel saving: $1.3 * 3.5L/H * 8H * 180Days=$6552, and the driver can save $6552 a year.
2. Safety: It is driven by safe DC power supply, with multiple protections: overvoltage protection, undervoltage protection, overload protection, overheating protection, safe and without danger.
3. The running sound is low, providing a quiet and comfortable environment for the driver.
4. Environmental protection: zero CO2 emission when the engine is stopped to protect the environment, making Treeliho a good partner for environmental protection;
5. Fast cooling: High wind speed makes it possible to quickly cool the car from a high temperature to a comfortable temperature.
COMPRESSOR TYPE
Semi-closed Horizontal Scroll Compressor
CONDENSER PARALLEL FLOW
14x20 in(18mm core depth)4 Rail Aluminum
EVAPORATOR UNDER-DASH
BEU-404-100
HOSES
#6 5/16 = 6 FT #8 13/32 = 4 FT #10 1/2 = 5 FT W/FITTING and CLAMP
FILTER
DRIER W/ PRESSURE SWITCH
2.5 X 7.5 in 3/8MIO X 3/8MIO W/ 1/4 CP ROI
CONDENSER FAN
10″ Diameter 12 Volts 80W 6 AMP Reversible – 4 Mounting Brackets included
AC CODITIONER
HIGH QUALITY CASE 32 pass 4way all Aluminum coil
expansion valve 1.5 Ton, thermostat and rotative 3speed blower switch

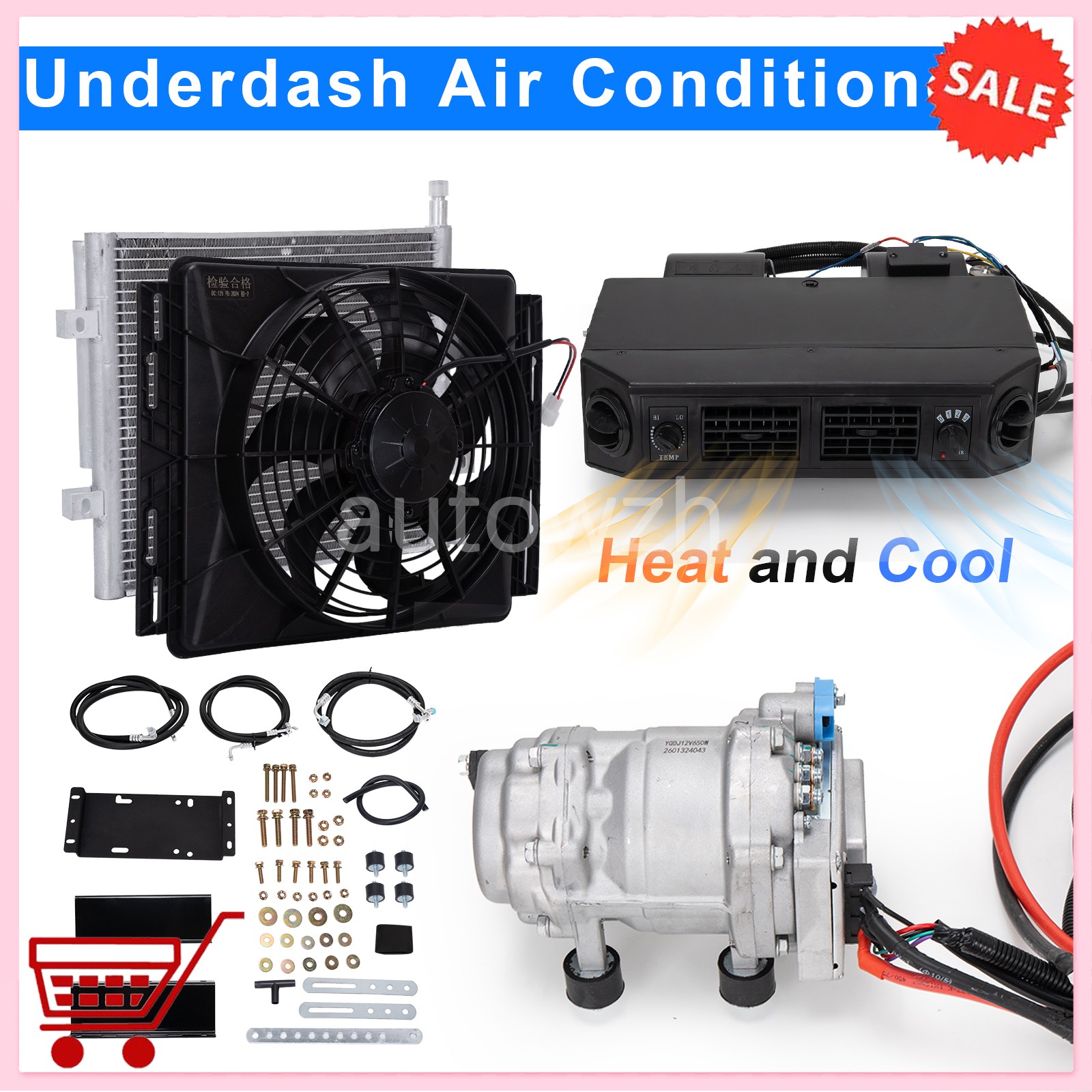

Package included：
1x Condenser*Fan*Dryer Bottle（Dimension：14*18*26cm with bottle，OR interface）
Fan（14*18-12V ，including 2P mother shell + 6.3 inserts) with carton）
1x Outlet
1x Integrated Electric Compressor
1x Wiring Harness
1x Fittings Kit
SCROLLCOMPRESSOR SPECIFICATION
Refrigerating capacity: 1.94kw max
Rated Voltage:12 Volt
Application:Automotive air-condition
Refrigerant: R134a
Compressor cooling:Inhalation refrigerant cooling
Displacement: 12ml/re
Refrigerator oil: EMKARATE RL68H/100ml
Note:
1.The total leakage of the compressor is not greater than 5g/year.
2.The noise is not greater than 74dB in rated speed.
3.Insulation resistance must be greater than 20MΩ .
4.The tolerance of None remarked dimensions
may be accordance with GB1804-m.
5. The performance of all unmentioned are in accordance with
GB/T 22068-2018.
