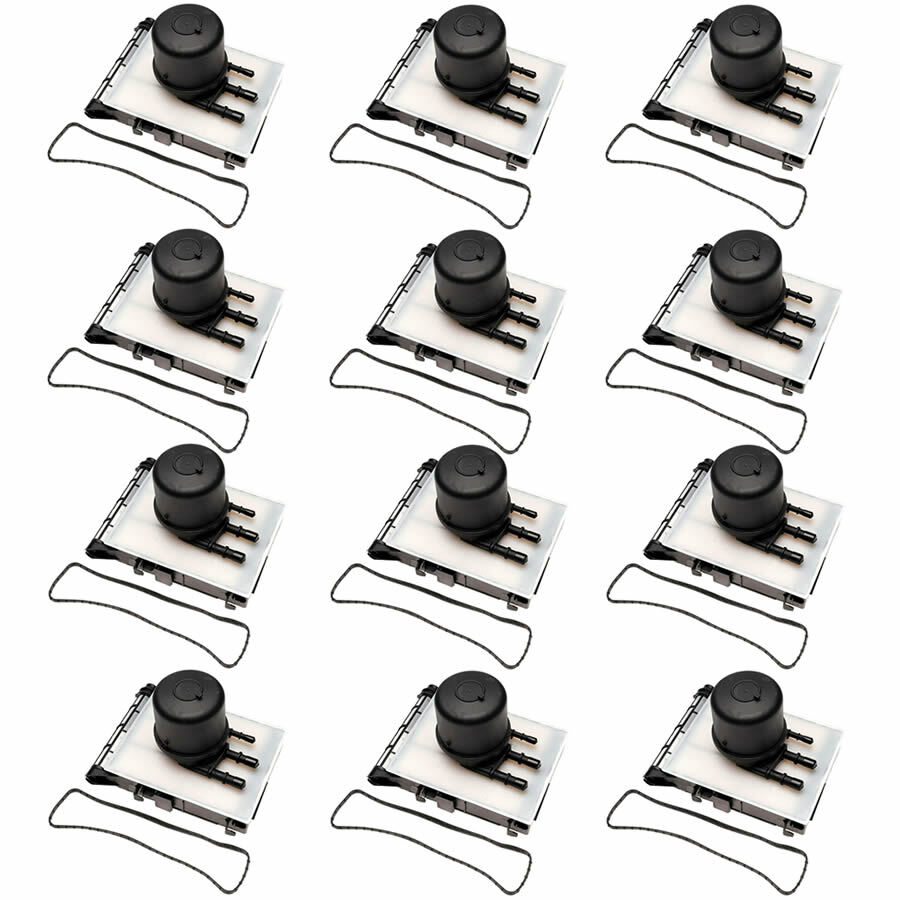

12X Diesel Fuel Filter Kit FOR Ford F-Series Super Duty Trucks 6.7L Powerstroke For Sale - New and Used

Product Description:Compatible with:Replacement for F250 F350 F450 F550 F600 F650 F750 Super Duty Powerstroke 6.7L 2017-2025， and more vehicles in the product description.Replaces part modern diesel\'s engine demands for optimum fuel flow which ensures the system is free of contaminants and water.98% water separation efficiency.Effectively filter impurities.Package includes:12 Packs(1 Pack includes 1 x engine mounted filter and 1 x frame mounted filter,and gasket for the filter.NOT includes the HC3Z-9A317-A clip).Recommended replacement period:The replacement of the fuel filter every 15,000 Miles.

Compatible with:

For F-250 Super Duty Powerstroke 6.7L V8 2017-2025For F-350 Super Duty Powerstroke 6.7L V8 2017-2025For F-450 Super Duty Powerstroke 6.7L V8 2017-2025For F-550 Super Duty Powerstroke 6.7L V8 2017-2025For F-600 Super Duty Powerstroke 6.7L V8 2017-2025For F-650 Super Duty Powerstroke 6.7L V8 2017-2025For F-750 Super Duty Powerstroke 6.7L V8 2017-2025

Changing frame rail filter:

Place the drain pan under the water in fuel separator filter housing under the cab between the frame rails,drain fuel.Remove 5 fuel filter housing mounting bolts using the 8mm socket,replace filter element and housing gasket.Reinstall filter housing and plug in water in fuel sensor connector.

Changing engine filter:

This fuel filter is located in the drivers side of the engine bay(with 3 fuel lines going into it).Remove all 3 fuel lines going to filter by sliding plastic clips over and pulling lines away from the filter one at a time.Loosen the filter from its housing by loosening it a 1/4 turn.Install new fuel filter and tighten.Cycle the key to the ON position and leave it for 30 seconds.Turn the key to the OFF position, and the back on-repeat this cycle 3 times.

---
