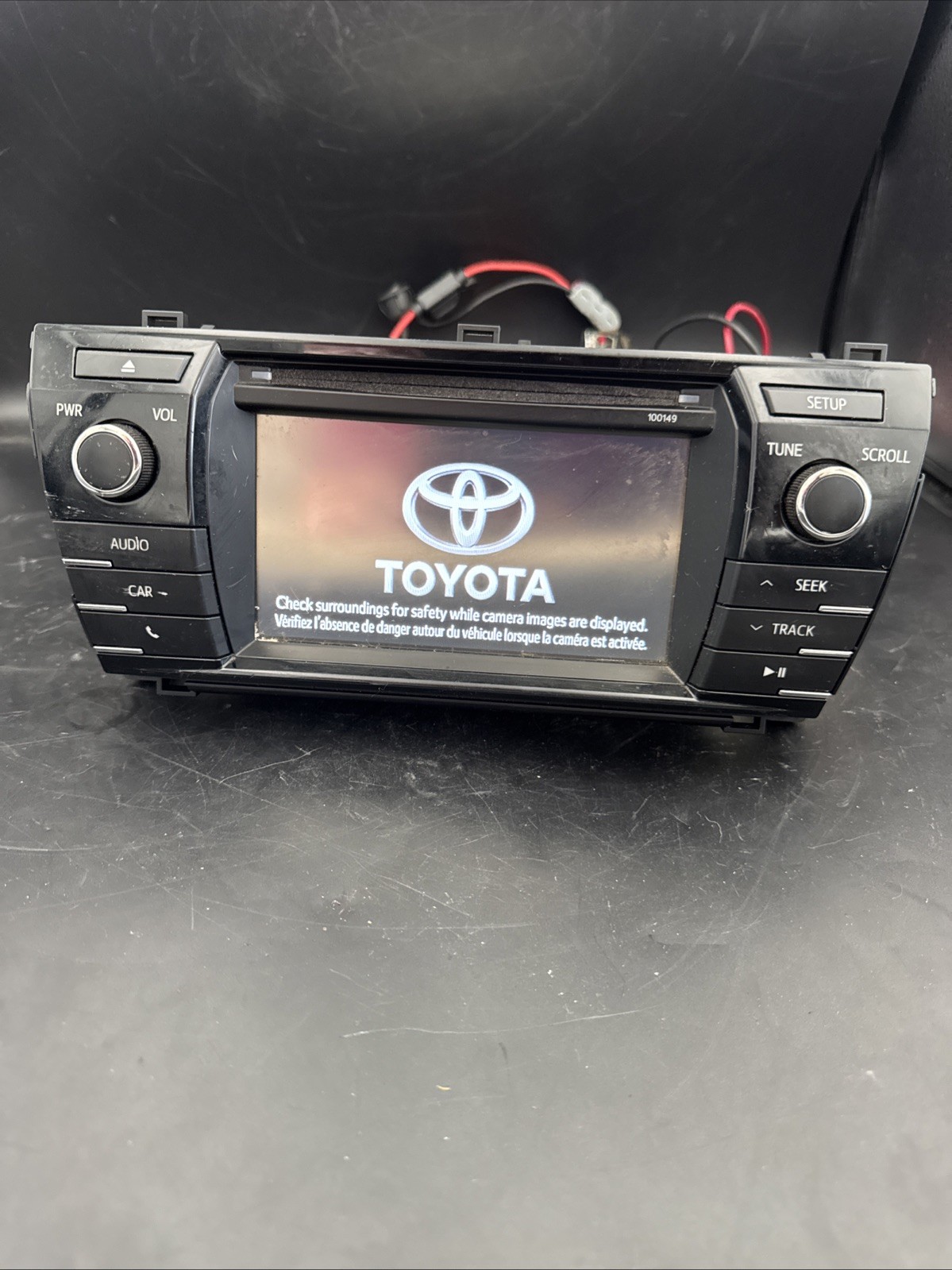

2014-2016 Toyota Corolla OEM Display Audio Head Unit 6.1" Touchscreen • AM/FM/CD • Bluetooth • Non-Navigation Part Number 86140-02050 • Faceplate ID 100149 SOLD AS-IS / FOR PARTS OR REPAIR — PLEASE READ IN FULL Item Details Brand Toyota Part Type OEM Display Audio Head Unit Part Number 86140-02050 Faceplate ID 100149 Screen 6.1-Inch Touchscreen Features AM/FM Radio, CD Player and Bluetooth Navigation Non-Navigation Condition For Parts or Repair — Touchscreen Defect What Works Bench tested using a regulated power supply. The unit powers up and boots normally to the Toyota splash screen with no boot loop. The display is bright and clear, with no dead pixels, cracks, “line of death” or delamination. All hard buttons and knobs work, including:
- Power/Volume
- SETUP
- TUNE
- SEEK
The CD mechanism loads and ejects. Touch responds over most of the screen. What Does Not Work The touch digitizer has unresponsive areas. The Sound Settings screen, including Treble/Mid/Bass and Fader/Balance controls, does not respond to touch at all. Other lower and right-hand areas of the screen may also be affected. Buyer should assume that the touchscreen digitizer needs to be replaced. The unit is priced accordingly. Known Touchscreen Failure This is a well-documented failure on these units. Toyota issued TSB T-SB-0172-16 covering a partially inoperative touchscreen on 2014-2015 Camry, Camry Hybrid and Corolla vehicles equipped with the base audio system. This is a touchscreen panel fault, not a mainboard or firmware fault. A software update does not repair the defective digitizer. Repairable Unit Replacement 6.1-inch digitizers are widely available for approximately $25-$40 and require no programming. Common replacement specifications:
- C061VTN01
- LA061WQ1(TD)(04)
- Approximate dimensions: 150 × 84 mm
- 12-pin connector
This unit is also suitable as a donor for the mainboard, CD mechanism, display components, buttons, knobs or faceplate. Bench Test Limitations The unit was tested on the bench only and was not installed in a vehicle. The following functions were not verified:
- Bluetooth pairing
- Steering-wheel controls
- Backup-camera input
- Amplifier and speaker output
Compatibility & Installation Intended for select 2014-2016 Toyota Corolla models equipped with the matching non-navigation Display Audio system. Match part number 86140-02050, faceplate ID 100149, connectors and factory equipment before purchasing. When replacing the same compatible unit, no dealer programming or coding is normally required. Package Contents The sale includes the exact Toyota radio shown in the listing photos only. Wiring, brackets, trim panels, microphone, camera, USB components and additional accessories are not included unless shown. Final Sale — No Returns This unit is sold AS-IS / FOR PARTS OR REPAIR at a discounted price. The touchscreen defect has been fully disclosed above. No returns are accepted. Please review all photos, read the complete description and ask any questions before purchasing. Genuine Toyota OEM | Touchscreen Defect Disclosed | For Parts or Repair | No Returns
