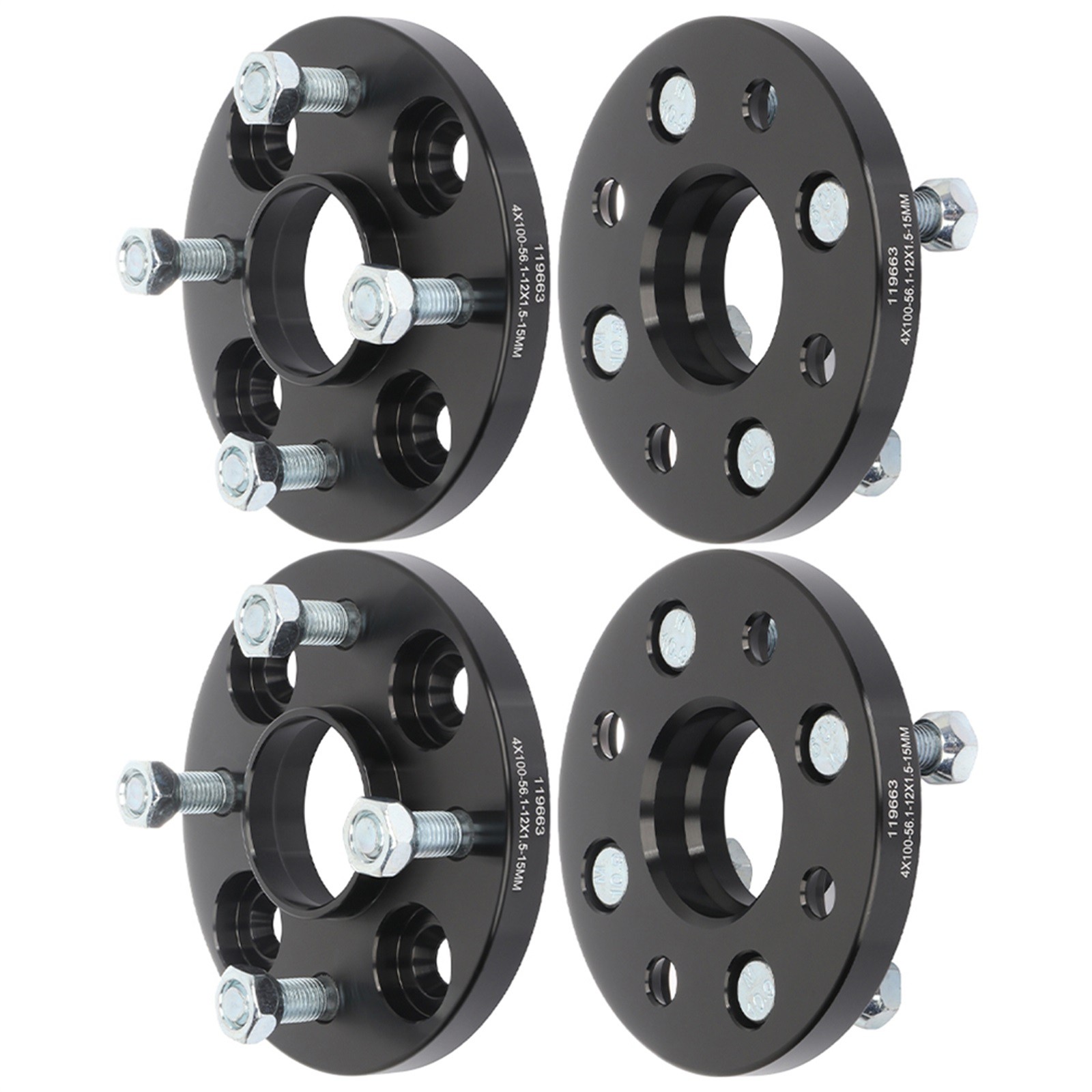

15mm/ 20mm/ 1\"/ 2\" 4x100 Hubcentric Wheel Spacers 12x1.5 For Honda Civic 4 Lug For Sale - New and Used

Thickness: 15 mm or 20 mm or 1 inch or 2 inch

Bolt Pattern:4x3.94 inch or4x100 mm

Thread Size:12x1.5

Bolt Shack Length: 34 mm

Torqued Down By Hand At: 70-80 FT/LBS

Hub Bore: 56.1 mm

Number of Pieces: 4

15mm/ 20mm/ 1"/ 2" 4x100 Hubcentric Wheel Spacers 12x1.5 For Honda Civic 4 Lug Thickness: 15 mm or 20 mm or 1 inch or 2 inch

Bolt Pattern:4x3.94 inch or4x100 mm

Thread Size:12x1.5

Bolt Shack Length: 34 mm

Torqued Down By Hand At: 70-80 FT/LBS

Hub Bore: 56.1 mm

Number of Pieces: 4

Note: Wheels May need Pockets; Check your factory studs, MSUT be 12x1.5

For 1986-2001 Acura Integra (All trims EXCEPT Type-R)
For 1982-1989 Honda Accord
For 1979-2005 Honda Civic (4-Lug Only.)
For 1993-1997 Honda Civic del Sol
For 1988-1991 Honda CRX
For 2006-2020 Honda Fit
For 1979-1991 Honda Prelude
For 1994-2001 Kia Sephia
For 2002-2014 Mini Cooper (4-Lug Only.)
For 2002-2003 Mitsubishi Lancer
For 1987-2020 Mitsubishi Mirage (Will Not Fit 1.6i VR, 1.6i ZR & 1.8T.)

Mini Cooper Models produced between 2002 and 2005 have 12mm lug bolts while those produced between 2006 and 2016 have 14mm lug bolts. Some 2006 Mini Coopers have the 12mm lug bolts. For the 2006 model owners, it’s best to first measure your bolt sizes before buying your wheel spacers. Remember to measure the diameter of the threaded part, not the size of the wrench required to remove or install the bolt.

1. Check Your Vehicle Bolt Pattern/ PCD, Hub Bore Size, Thread Pitch, Vehicle fitment compatibility is only a guide.

2. Measure the fender gap and stock bolt length to choose suitable thickness.

3. It is possible that your existing lug nut studs can be longer than the adapter itself, you may need to alter your existing studs if the adapters do not sit flush with the wheels. If the studs are longer than the adapter, and the wheels do not have a hollow spot in them, you may need to grind, or cut your existing lugs if you choose not to purchase shorter studs. Otherwise, the adapter bolt can't work as normal and will greatly shorten the bolt's working life and bring danger to you.

4. PLEASE CONFIRM what you actuall need, wheel spacers or wheel adapters, they are different. Wheel Adapters are used to change bolt patterns in order to properly fit wheels from one vehicle to the hub of a different vehicle.

5. Clean the studs thoroughly and remove any excessive dirt, oil, grease etc. Thread the supplied lug nuts to axle studs with TAPERED end facing towards the spacers. Install the nuts by hand ONLY and tighten them in a crisscross pattern. Do not use impact wrench. Recommended to use threadlocker.

6.Please check all lug nuts and bolts of the adapters after the first 50 -100 miles. They may get loose after long time running. Make sure you will recheck them every 3000-5000 miles and screw tight.

7. Returns are only accepted if unused and not installed.(ReturnsARE NOT ACCEPTED IF SPACERS-ADAPTERS HAVE BEEN INSTALLED TO YOUR VEHICLE)

What are common problems with wheel spacers?

The main issue with a wheel spacer is thatit moves the wheel to a wider position whilst the rest of the suspension arms remain in the same place. In particular, the king pin inclination axis remains in the same place. Therefore, fitting a wheel spacer moves the wheel outboard and alters the scrub radius of the car.

How do I know if I need wheel spacers?

Wheel spacers are usedwhen the offset of the wheel is not ideal for the end package that you want. Whether it's because of too narrow of axles or not enough wheel offset, wheel spacers can put your tires and wheels where you want them to be under your fender.

Item SpecificsBrand ECCPPManufacturer Part Number ECP844302HK05Type Wheel SpacerQuantity 4Spacer Thickness 15mm or 20mm or 1 inch or 2 inchVehicle Bolt Pattern 4x100mmWheel Bolt Pattern 4x100mmThread Pitch 12mm x 1.5 or 12x1.5 or M12x1.5Center Bore Size 56.1mmBolt Pattern 4 x 3.94 inch (4 x 100 mm)Hubcentirc YesStud Grade 10.9Torqued Down By Hand At 70-80 FT/LBSMaterial AluminumPlace of Delivery CAInterchange Part Number For 1986-2001 Acura Integra, 1994-2001 Kia SephiaOther Part Number For 1987-2020 Mitsubishi Mirage, 2002-2014 Mini Cooper 4 LugSuperseded Part Number For Honda Prelude Fit CRX Civic del Sol Accord 4 Lug Item SpecificsBrand ECCPPManufacturer Part Number ECP844302HK05Type Wheel SpacerQuantity 4Spacer Thickness 15mm or 20mm or 1 inch or 2 inchVehicle Bolt Pattern 4x100mmWheel Bolt Pattern 4x100mmThread Pitch 12mm x 1.5 or 12x1.5 or M12x1.5Center Bore Size 56.1mmBolt Pattern 4 x 3.94 inch (4 x 100 mm)Hubcentirc YesStud Grade 10.9Torqued Down By Hand At 70-80 FT/LBSMaterial AluminumPlace of Delivery CAInterchange Part Number For 1986-2001 Acura Integra, 1994-2001 Kia SephiaOther Part Number For 1987-2020 Mitsubishi Mirage, 2002-2014 Mini Cooper 4 LugSuperseded Part Number For Honda Prelude Fit CRX Civic del Sol Accord 4 Lug

• We accept all payment

​

• InternationalBuyers PleaseNote:
15mm/ 20mm/ 1"/ 2" 4x100 Hubcentric Wheel Spacers 12x1.5 For Honda Civic 4 Lug Thickness: 15 mm or 20 mm or 1 inch or 2 inch

Bolt Pattern:4x3.94 inch or4x100 mm

Thread Size:12x1.5


Bolt Shack Length: 34 mm

Torqued Down By Hand At: 70-80 FT/LBS


Hub Bore: 56.1 mm

Number of Pieces: 4

Note: Wheels May need Pockets; Check your factory studs, MSUT be 12x1.5

For 1986-2001 Acura Integra (All trims EXCEPT Type-R)
For 1982-1989 Honda Accord
For 1979-2005 Honda Civic (4-Lug Only.)
For 1993-1997 Honda Civic del Sol
For 1988-1991 Honda CRX
For 2006-2020 Honda Fit
For 1979-1991 Honda Prelude
For 1994-2001 Kia Sephia
For 2002-2014 Mini Cooper (4-Lug Only.)
For 2002-2003 Mitsubishi Lancer
For 1987-2020 Mitsubishi Mirage (Will Not Fit 1.6i VR, 1.6i ZR & 1.8T.)

Mini Cooper Models produced between 2002 and 2005 have 12mm lug bolts while those produced between 2006 and 2016 have 14mm lug bolts. Some 2006 Mini Coopers have the 12mm lug bolts. For the 2006 model owners, it’s best to first measure your bolt sizes before buying your wheel spacers. Remember to measure the diameter of the threaded part, not the size of the wrench required to remove or install the bolt.

1. Check Your Vehicle Bolt Pattern/ PCD, Hub Bore Size, Thread Pitch, Vehicle fitment compatibility is only a guide.

2. Measure the fender gap and stock bolt length to choose suitable thickness.

3. It is possible that your existing lug nut studs can be longer than the adapter itself, you may need to alter your existing studs if the adapters do not sit flush with the wheels. If the studs are longer than the adapter, and the wheels do not have a hollow spot in them, you may need to grind, or cut your existing lugs if you choose not to purchase shorter studs. Otherwise, the adapter bolt can't work as normal and will greatly shorten the bolt's working life and bring danger to you.

4. PLEASE CONFIRM what you actuall need, wheel spacers or wheel adapters, they are different. Wheel Adapters are used to change bolt patterns in order to properly fit wheels from one vehicle to the hub of a different vehicle.

5. Clean the studs thoroughly and remove any excessive dirt, oil, grease etc. Thread the supplied lug nuts to axle studs with TAPERED end facing towards the spacers. Install the nuts by hand ONLY and tighten them in a crisscross pattern. Do not use impact wrench. Recommended to use threadlocker.

6.Please check all lug nuts and bolts of the adapters after the first 50 -100 miles. They may get loose after long time running. Make sure you will recheck them every 3000-5000 miles and screw tight.

7. Returns are only accepted if unused and not installed.(ReturnsARE NOT ACCEPTED IF SPACERS-ADAPTERS HAVE BEEN INSTALLED TO YOUR VEHICLE)


What are common problems with wheel spacers?

The main issue with a wheel spacer is thatit moves the wheel to a wider position whilst the rest of the suspension arms remain in the same place. In particular, the king pin inclination axis remains in the same place. Therefore, fitting a wheel spacer moves the wheel outboard and alters the scrub radius of the car.

How do I know if I need wheel spacers?

Wheel spacers are usedwhen the offset of the wheel is not ideal for the end package that you want. Whether it's because of too narrow of axles or not enough wheel offset, wheel spacers can put your tires and wheels where you want them to be under your fender.

Item SpecificsBrand :ECCPPManufacturer Part Number :ECP844302HK05Type :Wheel SpacerQuantity :4Spacer Thickness :15mm or 20mm or 1 inch or 2 inchVehicle Bolt Pattern :4x100mmWheel Bolt Pattern :4x100mmThread Pitch :12mm x 1.5 or 12x1.5 or M12x1.5Center Bore Size :56.1mmBolt Pattern :4 x 3.94 inch (4 x 100 mm)Hubcentirc :YesStud Grade :10.9Torqued Down By Hand At :70-80 FT/LBSMaterial :AluminumPlace of Delivery :CAInterchange Part Number :For 1986-2001 Acura Integra, 1994-2001 Kia SephiaOther Part Number :For 1987-2020 Mitsubishi Mirage, 2002-2014 Mini Cooper 4 LugSuperseded Part Number :For Honda Prelude Fit CRX Civic del Sol Accord 4 Lug Item SpecificsBrand ECCPPManufacturer Part Number ECP844302HK05Type Wheel SpacerQuantity 4Spacer Thickness 15mm or 20mm or 1 inch or 2 inchVehicle Bolt Pattern 4x100mmWheel Bolt Pattern 4x100mmThread Pitch 12mm x 1.5 or 12x1.5 or M12x1.5Center Bore Size 56.1mmBolt Pattern 4 x 3.94 inch (4 x 100 mm)Hubcentirc YesStud Grade 10.9Torqued Down By Hand At 70-80 FT/LBSMaterial AluminumPlace of Delivery CAInterchange Part Number For 1986-2001 Acura Integra, 1994-2001 Kia SephiaOther Part Number For 1987-2020 Mitsubishi Mirage, 2002-2014 Mini Cooper 4 LugSuperseded Part Number For Honda Prelude Fit CRX Civic del Sol Accord 4 Lug
