Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 19.375\" x 20.5\" - Overall (H x W): 26.75\" x 24.75\" - Hose Locations (In x Out): Pass x Driver - Hose Fittings (In x Out): 1.5\" x 1.75\" - TOC: 1/8-27NPTPlease click on the \"Read more\" link below to view a complete item description with product videos and additional items to upgrade your cooling system.

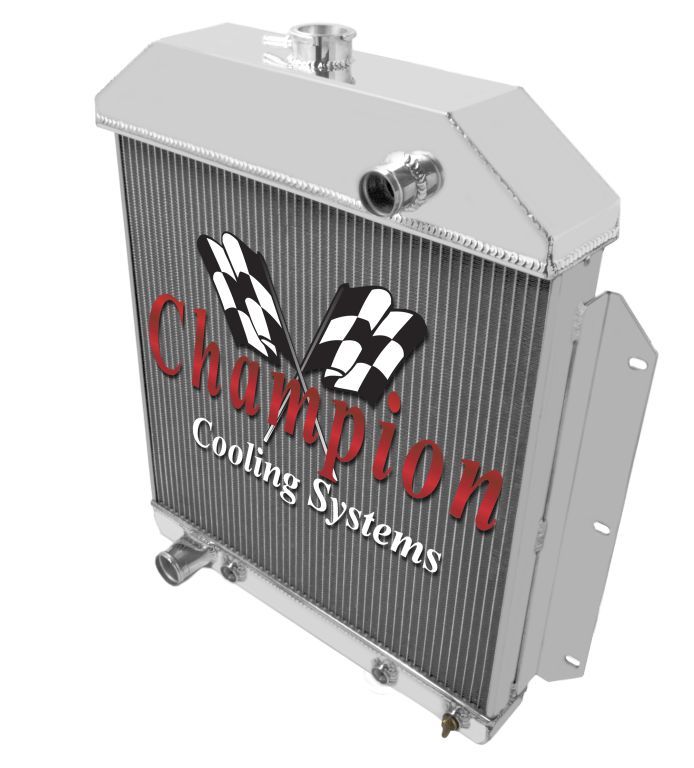

PART INFORMATION Shipping Payment Policies Contact Us Part Information Related Items Need A Different Set Up? (Click A Photo Below) Genuine Champion Cooling Systems Part #EC49FD This radiator is designed for either a Ford V8 289ci or 302ci engine but does NOT fit a Inline 6 Cylinder. Features
- Higher density core: cooling rows are spaced 3/8\" apart: giving you 25% more rows within the core than other aluminum radiators sold on and 35% more rows than OEM copper.
- Aluminum dissipates heat more efficiently than copper or brass.
- 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
- Lighter weight.
- Outperforms other 2, 3 and 4 row copper radiators.
- High performance appearance.
- You get \"BIG BLOCK COOLING\" and \"PEACE OF MIND\" when you drive your car with a Champion Cooling Systems radiator.
- You could easily spend $400 - $1,000 more for a radiator of similar quality.
Specifications
- Down Flow Or Cross Flow Type: Down Flow
- Mounting Type: Bracket
- Tank Material: Aluminum
- Core Material: Aluminum
- Overall Height: 26 3/4
- Overall Width: 24 3/4
- Core Height: 19 3/8
- Core Width: 20 1/2
- Inlet Location: Passenger
- Inlet Diameter: 1 1/2
- Outlet Location: Driver
- Outlet Diameter: 1 3/4
- Core Row Quantity: 2 Row
- Transmission Oil Cooler Fitting Type: 1/8-27NPT
- Internal Transmission Oil Cooler: Yes
- Filler Neck Attached: Yes
- Core Thickness: 1 1/2
- Core Tube Width: 0.75
- Tank Width: UPPER: 3.875 - LOWER: 2.5
This package includes a 2 Row All Aluminum Radiator. Shipping Shipping
Shipped within 24 hours from when payment is received Monday - Friday (excludes Holidays and weekends).
Tracking number is uploaded to and sent to your email once items are shipped.
Free Shipping Domestic: 48 states
FedEx Ground
(3-5 Business Days)
Additional Shipping (Charges may apply) for Alaska & Hawaii, Puerto Rico
Payment Guarantee Policies
\"Our Goal is a 100% satisfaction. If you feel it?s less than 100%
positive experience, please contact us. We will work out a resolution.\"
Within 60 days of receipt of your order, you may return radiators that:
- Are in their original packaging
- Have not been used, or disassembled
- Are not damaged due to improper installation
- Do not have missing parts, hardware or instructions
