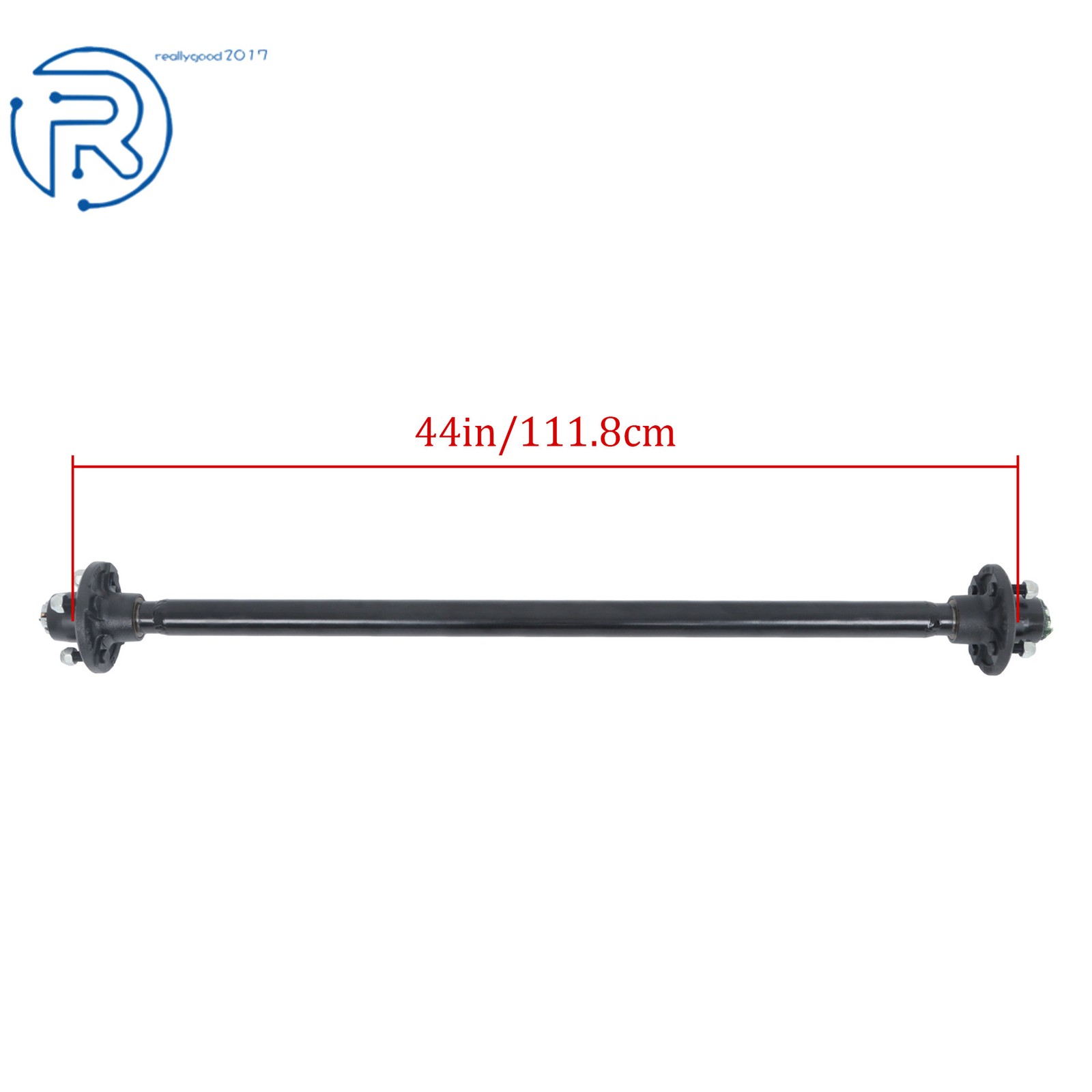

Specification:Condition: 100% New and High QualityType: trailer axleWarranty: 1 YearAxle Specifications: 2000 lbs Idler Trailer AxleCapacity: 2KInner bearing: L44649Outer bearing: L44649Pipe diameter: 45mmWall thickness: 5mm4 Bolt hubs (4" stud circle)Features: 2000 lbs Trailer Axle 4 lug-4" with Hub Face
Specification:
Condition: 100% New and High Quality
Type: trailer axle
Warranty: 1 Year
Axle Specifications: 2000 lbs Idler Trailer Axle
Capacity: 2K
Inner bearing: L44649
Outer bearing: L44649
Pipe diameter: 45mm
Wall thickness: 5mm
4 Bolt hubs (4" stud circle)
Features:
- Good performance - An axle is a component that holds the wheels in place and rotates with them to send or receive mechanical power or allow the wheels to rotate freely on it. The axle will bear and share the weight of the trailer. Become a carrier for installing shock absorption systems, braking systems, tires, and steel rims.
- Versatile Design - Suitable For All Medium Duty Trailers, Including But Not Limited To Trailer Axles, Ship Trailer Axles, Car Trailer Axles, Atv Trailer Axles, Lawn And Landscape Trailer Axles, Motorcycle Trailer Axles, Cargo Trailer Axles, Enclosed Trailer Axles, RV Trailer Axles, Etc
- Axles come fully assembled
- Packed with High-Temp Axle Grease
- Underslung-Axle is welded with spring seats on the bottom
- Allows for lower ride height
- For optimal usage, use with double eye springs
- Removable rubber plug on the hub cap with easy access to a grease-able zerk fitting
- Grease your axle without pulling off your whole entire hub
- High Strength Steel Axle Tube Construction to ensure
- Even Tire Wear
- A better highway experience
Very Important to get correct axle you need please double check and triple check your bolt pattern and your spring center measurement. See below on how to properly measure axle.
How to Determine what axle you need:
If you want to get the correct axle, you need to carefully check the spacing between your wheel hub surfaces and leaf springs. Please refer to the following instructions on how to measure.
If you build a trailer from scratch, then you don't have to worry about measuring anything. Just choose the width of the axis you want.
Wheel hub spacing (HF):
The length of the shaft measured from the bottom of one wheel stud to the bottom of the other wheel stud.
This dimension can be obtained by measuring the point where two wheels meet on one side of the shaft to the point where two wheels meet on the other side of the shaft.
This measurement is very important, and there is an allowable error of about one inch between your measurement spacing and the dimensions we display.
Leaf spring spacing (SC):
The approximate width of the trailer. It is a measurement from the center of the spring seat on one side of the axle to the center of the spring seat on the other side. This axle beam is welded with spring seats.
Application:
For All Medium Duty Trailers, Including But Not Limited To Trailer Axles, Ship Trailer Axles, Car Trailer Axles, Atv Trailer Axles, Lawn And Landscape Trailer Axles, Motorcycle Trailer Axles, Cargo Trailer Axles, Enclosed Trailer Axles, RV Trailer Axles & More
Package Includes:
1 × Axle with wheel hub kit
2 × gasket
2 × Spindle Nut
2 × Open mouth sales
2 × Dust cover
1 × U-shaped bolt kit (4 × U-shaped bolts+2 × plates)
2 × Leaf spring bracket (unwelded, customer needs to weld as needed)
Installation instructions:
Pre installed with wheel hub kit, equipped with U-shaped bolt kit, can be matched according to needs; Connect the leaf spring, tire, and wheel components. The leaf spring bracket is not welded and shipped in bulk. Customers need to weld it according to their own needs
Notes:
This 2K TK idler trailer axle features an 4-lug configuration, making it ideal for medium-duty trailers such as landscape trailers, small cargo trailers, and many others. The axle comes fully assembled, so you don't have to worry about attaching the hub face, Very Important to get correct axle you need please double check and triple check your bolt pattern and your spring center measurement. The spring seats are welded to the bottom of the axle, which allows for a lower ride height. If you have any questions about this axle, then please contact us as soon as possible. We're always here to help.
Item SpecificsCountry of Origin United StatesBrand netueraManufacturer Part Number 821793Part Type Trailer AxleInner bearing L44649Outer bearing L44649Warranty 1 YearPipe diameter 45mmWall thickness 5mmCapacity 2000lb
