** Please Check Your Wheel and Model Together **
** Compatibility Chart is for Thread Pitch Check Only **
** Please Double Check Shank Length Before Buying **
** Wheel Lug Shape is Determined by Your Wheel Requirements **
** Do not Guarantee Fitment with Wheel Cap **
** Do not Fit Ball Seat Required Stock Wheel **
** Designated For Aftermarket20mm FlangeCone Seat Required Wheel **

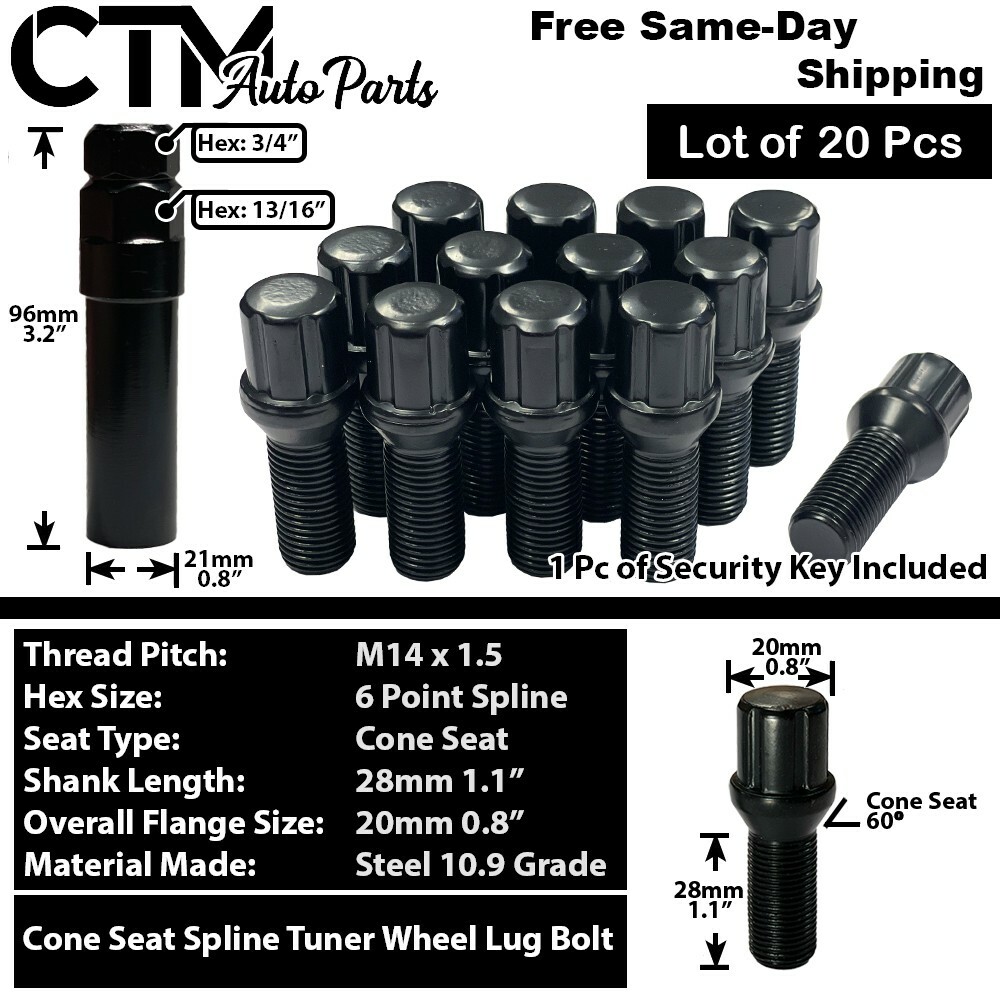

Product Specification:
About Lug Bolts
Lug Bolt Thread Pitch: M14x1.5
Lug Bolt Seat Type: 60 Degree Cone Seat
Lug Bolt Hex Size:6 Spline 0.8"
Lug Bolt Overall Diameter: 0.8"(20mm)
Lug Bolt Thread Shank: 1.1"(28mm)
Lug Bolt Grade: Grade 10.9
Lug Bolt Finish:Black
Lug Bolt Material Made: SCM Steel
About Socket Key
Socket Type: 6 Spline TunerLug Nuts/Bolts Socket
Socket Drive:13/16" & 3/4" Hex Drive
Socket Fit Lug Nuts: 6 Spline Typed Lug Nuts/Bolts
Socket Overall Diameter: 0.85"(21mm)
Socket Overall Length: 3.55"(90mm)
Socket Material Made: SCM Steel
Max Torque Power: 100 ft-lb
Requirements of the Vehicle Specification
Required Vehicle Hub Thread: M14x1.5
Requirements of the Wheel Specification
Required Vehicle Wheel Lug Bolts Seat Type: Cone Seat
Required Vehicle Wheel Lug Bolts Flange: 20mm or Smaller
Requirements of the Wrench Size
Required Wrench Socket Size: 6 Splined (Provided)
Maximum Wheel Spacer Thickness Allowed
Wheel Spacer Capability: Yes
Maximum Wheel Spacer Thickness Allowance: 1/8"(3mm)
What You Will Receive:
20 pcs Lug Bolts
1 pc Socket Key
Compatibility Chart and Important Part Note:
Please Carefully Check for Generation information
MakeModelYear MadeOrig. ThreadWheel Lug Flange Req.Spacer CompatibilitySpecial Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenAtlas Cross Sport2020-2022M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenBora1998-2015M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenBora2016-2018M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenBora SportWagen2008-2009M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenCC2009-2017M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenEos2006-2016M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenFox2004-2021M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf1992-2005M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf2003-2022M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf Alltrack2015-2022M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf Cabriolet2011-2016M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf GTI2013-2023M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf Plus2005-2014M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf R2014-2022M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf R Varaint2015-2020M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf Sportsvan2014-2020M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf SportWagen2010-2019M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf SV2014-2020M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf Touran2004-2020M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf Variant1999-2021M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGolf Variant Alltrack2015-2021M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenGTI2006-2021M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenID.42020-2023M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenJetta GLI2012-2021M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenJetta Variant2008-2012M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenLupo2005-2009M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenPassat Alltrack2012-2022M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenPassat CC2008-2016M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenPassat Variant1991-1997M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenPassat Variant1997-2022M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenPolo2001-2021M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenPolo Sedan2010-2021M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenR322008M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenTaos2020-2023M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenTeramont X2019-2021M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock WheelVolkswagenTiguan Limited2017-2018M14x1.520mm Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Cone SeatMax Thickness of 1/8"(3mm)Do not Fit Ball Seat Required Stock Wheel
