Product Type: Starter |
Replaces: 6008132412 6008132590 R600-813-2413 207-1564 3103952 5367755 8200725 |
- Starter Type: PLGR |
- Volts: 24 |
- Teeth On Drive: 11 |
- Rotation: Clockwise |
- Kw: 9 |
- Starter Housing Specifications: Rotatable DE Housing |
- Source: Aftermarket
Over 30,000 aftermarket & original parts Show navigation Hide navigation
- Visit Store
- Newly Listed
- Ending Soon
- On Sale
- Follow Seller

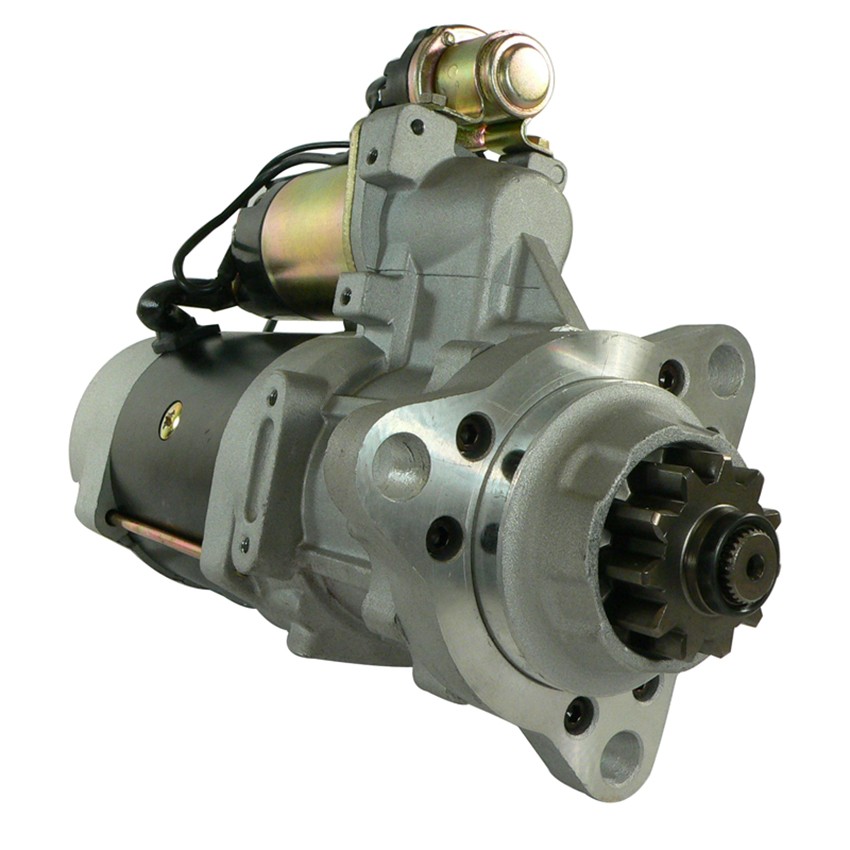

24V Starter Detroit DD60 Prevost Cummins ISM ISX MCI Bus Case STX 2071564
Replaces Part Numbers & Specifications
OEM PART NUMBERS:
• Caterpillar: 2071564
• Cummins: 2871253, 3021036RX, 3103952, 5284084, 5367755
• Delco: 8200330, 8200725
• Komatsu: 6008132412, 6008132413
• Komatsu: 6008132590, R6008132413SPECIFICATIONS:
• Type: PLGR (Positive Locking Gear Reduction)
• Family: Delco 39MT
• Voltage: 24V
• Power: 9kW (12.06HP)
• Rotation: Clockwise (CW)
• Teeth on Drive: 11
• Gear OD: 2.173in / 55.2mm
• Housing: Rotatable DE Housing
• Mounting Ears: 3x 16.8mm Unthreaded
• Semi-Solid Link Solenoid: Yes
• Overcrank Protection (OCP): Yes
• IMS Switch: Included
• Weight: 32.92 lbs / 14.96 kg
• Condition: NewCASE / MCI BUS / PREVOST APPLICATIONS:
• Case STX375, STX500, STX500QT w/ Cummins QSX 15.0L (2004-2007)
• MCI Bus All Models w/ Cummins ISX / M11 / N14 14.0L (1998-2007)
• Prevost Buses CAT C-12 / C-13 / ISM / DD-60 (1998-2007)
• Prevost Trucks CAT C-16 / Detroit DD-60 Series (1998-2008)
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new. ApplicationsShippingPaymentsPolicies
CASE AGRICULTURAL TRACTORS — CUMMINS QSX 15.0L 6-CYL INLINE TURBODIESEL:
• STX375 Cummins QSX 15.0L 6-Cyl Inline Turbodiesel (2004-2007)
• STX500 Cummins QSX 15.0L 6-Cyl Inline Turbodiesel (2004-2007)
• STX500QT Cummins QSX 15.0L 6-Cyl Inline Turbodiesel (2004-2007)MCI BUS — ALL MODELS BY ENGINE:
• All Models Cummins ISX 15.0L 6-Cyl Inline Turbodiesel (1998-2003)
• All Models Cummins M11 10.8L 6-Cyl Inline Turbodiesel (2004-2007)
• All Models Cummins N14 6-Cyl 14.0L Inline Turbodiesel (1998-2007)PREVOST BUSES — ALL MODELS BY ENGINE:
• All Models Caterpillar C-12 12.0L 6-Cyl Inline Turbodiesel (2004-2007)
• All Models Caterpillar C-13 12.5L 6-Cyl Inline Turbodiesel (1998-2003)
• All Models Cummins ISM 10.8L 6-Cyl Inline Turbodiesel (2007)
• All Models Detroit Diesel DD-60 Series 12.7L 6-Cyl Turbodiesel (2004-2007)PREVOST MEDIUM & HEAVY-DUTY TRUCKS — BY ENGINE:
• Truck Models Caterpillar C-16 15.8L 6-Cyl Inline Turbodiesel (1998-2007)
• Truck Models Detroit Diesel DD-60 Series 12.7L 6-Cyl Turbodiesel (1998-2008)
