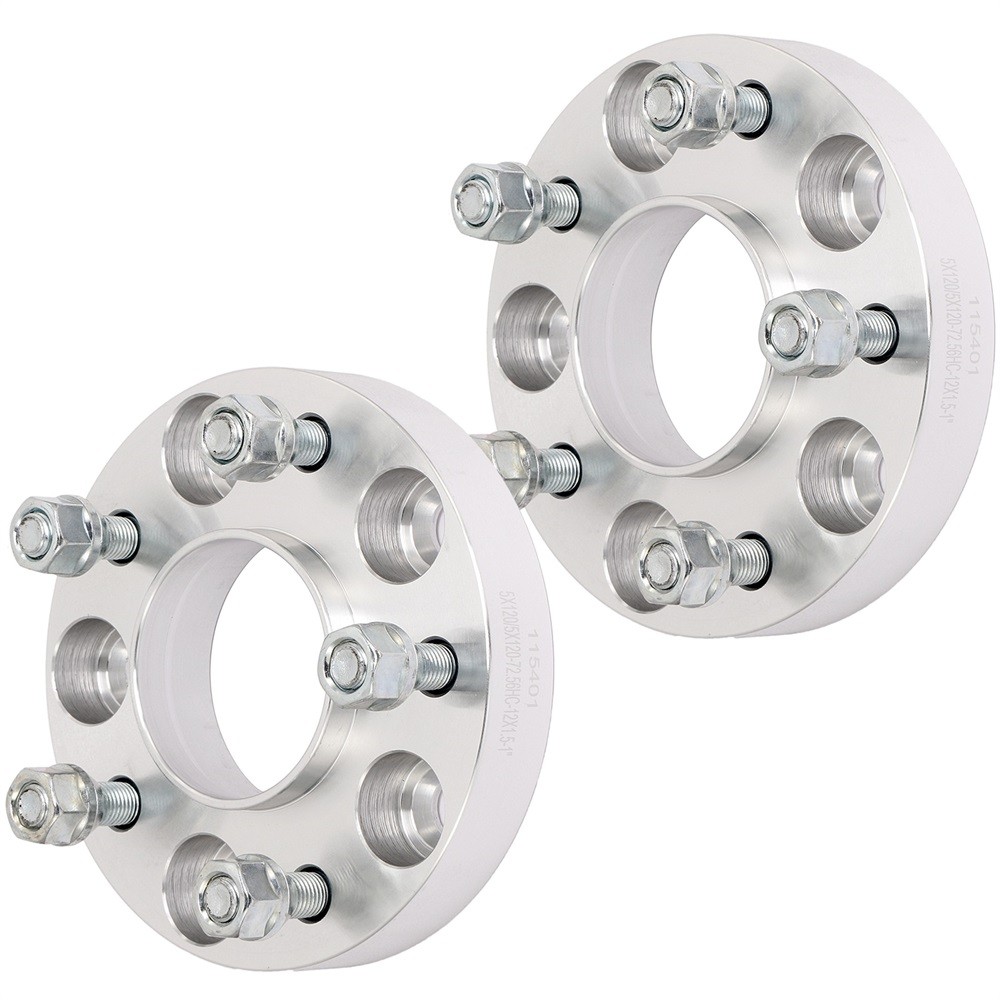

2X 25mm Hubcentric Wheel Spacers 5x120 For BMW Z4 325Ci 330Ci 330xi 12x1.5 Studs
FITMENT:
For BMW:
For 1 SERIES (E82, E88)-128i, 135i, M1, 1M COUPE
For 3 SERIES (E30)-M3
For 3 SERIES (E36)-318i, 318is, 318ti, 325i, 325is, 328i, 328is, M3
For 3 SERIES (E46)-323ci, 323i, 325ci, 325i, 325xi, 328ci, 328i, 330ci, 330i, 330xi, M3
For 3 SERIES (E90, E91, E92, E93)-325i, 325xi, 328i, 328xi, 330i, 330xi, 335d, 335i, 335is, 335xi, M3
For 5 SERIES (E28, E34)-525i, 528e, 530i, 535i, 535is, 540i, M5
For 5 SERIES (E60, E61 2004-2010)-525i, 525xi, 528i, 530i, 530xi, 535i, 535xi, 545i, 550i, M5
For 6 SERIES (E24, E63, E64)-633i, 635i, 645ci, 650i, M6
For 7 SERIES (E23, E32, E38)-730i, 730il, 733i, 735i, 735il, 740i, 740il, 750i, 750il
For 8 SERIES (E31)-840ci, 840i, 850ci, 850i
For 1996-2002 Z3 (TYPE RC)
For 1998-2002 M-COUPE/ROADSTER (TYPE MRC)
For 2003-2009 Z4 (E85, E89)
For 2006-2008 Z4 M COUPE/ROADSTER (M85)
For 2000-2003 Z8 (E52)
POSITION:
2x Wheel Thickness: 1 inch or 25 mm
Vehicle bolt pattern: 5x120 mm
Wheelbolt pattern：5x120 mm
Thread Size：12x1.5
Bolt Shack Length: 35 mm
Torqued Down By Hand At: 70-80 FT/LBS
Hub Bore: 72.56 mm
Number of Pieces: 2pcs
ADDITIONAL INFORMATIONS:
A. How longdrive on a spacer wheel:
Around 50 miles.Usually, the maximum speed you can drive on a space saver wheel is 50mph, and although there is no official restriction on the distance you can travel using one, around 50 miles is generally deemed to be the maximum safe distance for usage.
B. How to know if wheel spacers needed:
Wheel spacers are usedwhen the offset of the wheel is not ideal for the end package that you want.Whether it's because of too narrow of axles or not enough wheel offset, wheel spacers can put your tires and wheels where you want them to be under your fender.
C. Common issues with wheel spacers:
The main issue with a wheel spacer is thatit moves the wheel to a wider position whilst the rest of the suspension arms remain in the same place. In particular, the king pin inclination axis remains in the same place. Therefore, fitting a wheel spacer moves the wheel outboard and alters the scrub radius of the car.
NOTE:
1. Check Your Vehicle Bolt Pattern/ PCD, Hub Bore Size, Thread Pitch, Vehicle fitment compatibility is only a guide.
2. Measure the fender gap and stock bolt length to choose suitable thickness.
(For 1 inch or less or special adapters, if the stock studs are longer than the adapters, and the wheels do not have hollow spot in them, you may need to grind, or cut your existing lugs if you don't choose to purchase shorter studs.)
3.PLEASE CONFIRMwhat you actuall need, wheel spacers or wheel adapters, they are different.Wheel Adaptersare used to change bolt patterns in order to properly fit wheels from one vehicle to the hub of a different vehicle.
4.Do not use impact wrench.Please use hand wrench. Recommended to use threadlocker.
5. Returns are only accepted if unused and not installed.(ReturnsARE NOT ACCEPTED IF SPACERS-ADAPTERS HAVE BEEN INSTALLED TO YOUR VEHICLE)
Item SpecificsBrand CSDEXManufacturer Part Number 12245319Manufacturer Warranty 1 YearMaterial AluminumType Wheel SpacerColor SilverVehivle Bolt Pattern 5x120Wheel Bolt Pattern 5x120Hub Bore 72.56mmThread Size 12x1.5Thickness 1"Huncentric YesQuantity 2Torqued Down By Hand At 70-80 FT/LBSBolt Shank Length 35mmSurface Finish CNC Machined Polished Aluminum FinishStud Grade 10.9
