Product Description

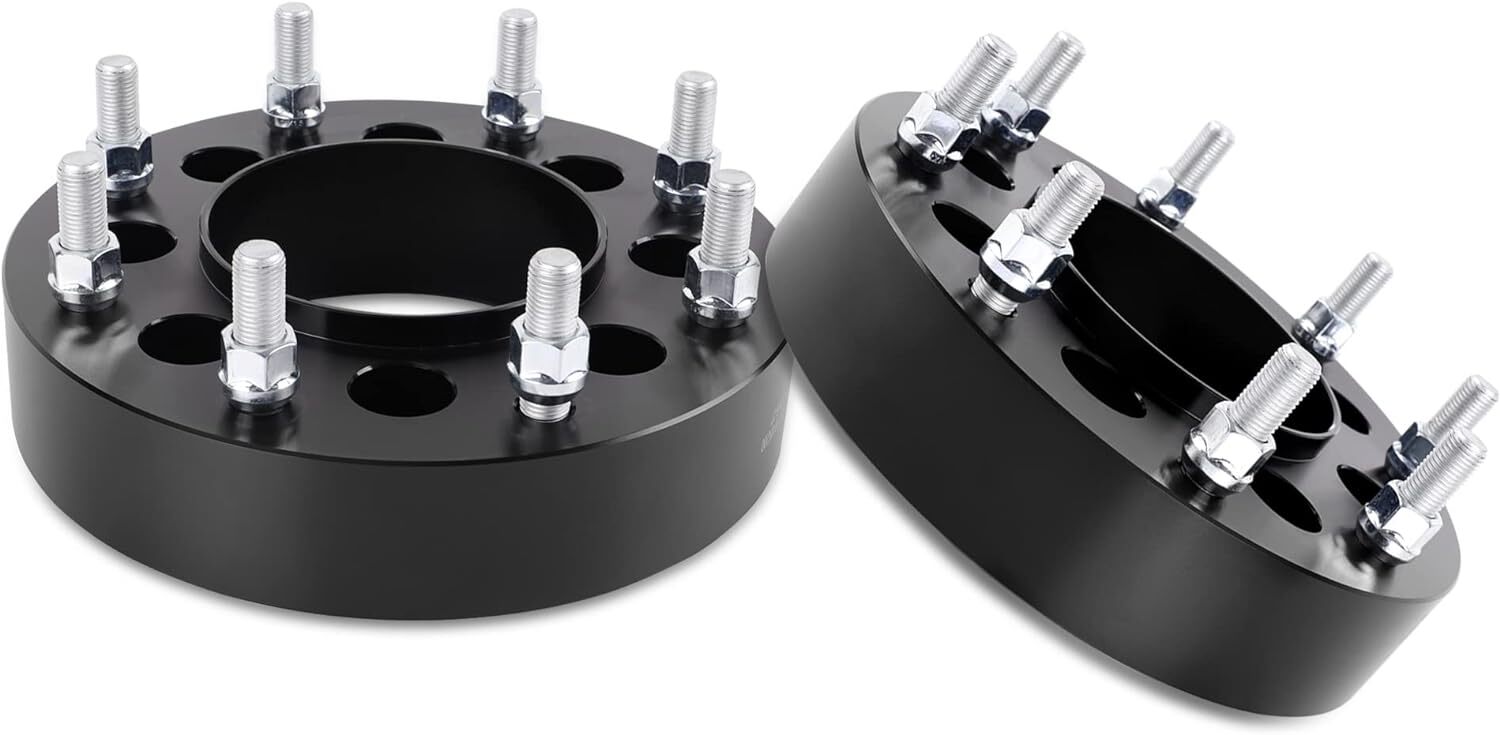

8x170 to 8x200 Wheel Adapters
Thickness: 2 inch (50.8mm)
Vehicle Bolt Pattern: 8x170mm
Wheel Bolt Pattern: 8x200mm
Thread Size: 14x1.5
Hub Bore: 125.6mm
PACKAGE INCLUDE:
2 x wheel spacers (2 inch per unit) with 16 open end 14X1.5 thread lug nuts
2x user manual.
Fitment:
2003-2023 F-250
2003-2023 F-350
2003-2005 Excursion
2003-2023 F-250 Super Duty
2003-2023 F-350 Super Duty
NOTE: Please make sure that these are the correct application for your vehicle. We do not guarantee any fitment onto any vehicle, we only guarantee that you will receive the item described as above.
This spacer adapter includes open end lug nuts to secure the spacers onto your factory hubs
If your factory thread size is different from 14x1.5 - Need to purchase a set of open end lug nuts in the correct thread pitch (your factory thread pitch) to complete the installation
Your Factory wheel studs may extend past the surface of the wheel spacers. In this case, you will need to:
1) Shorten the factory studs
2) The wheels need to have open slots (cavities) between mounting holes.
3) Purchase a set of shorter studs and replace them with the factory studs.
