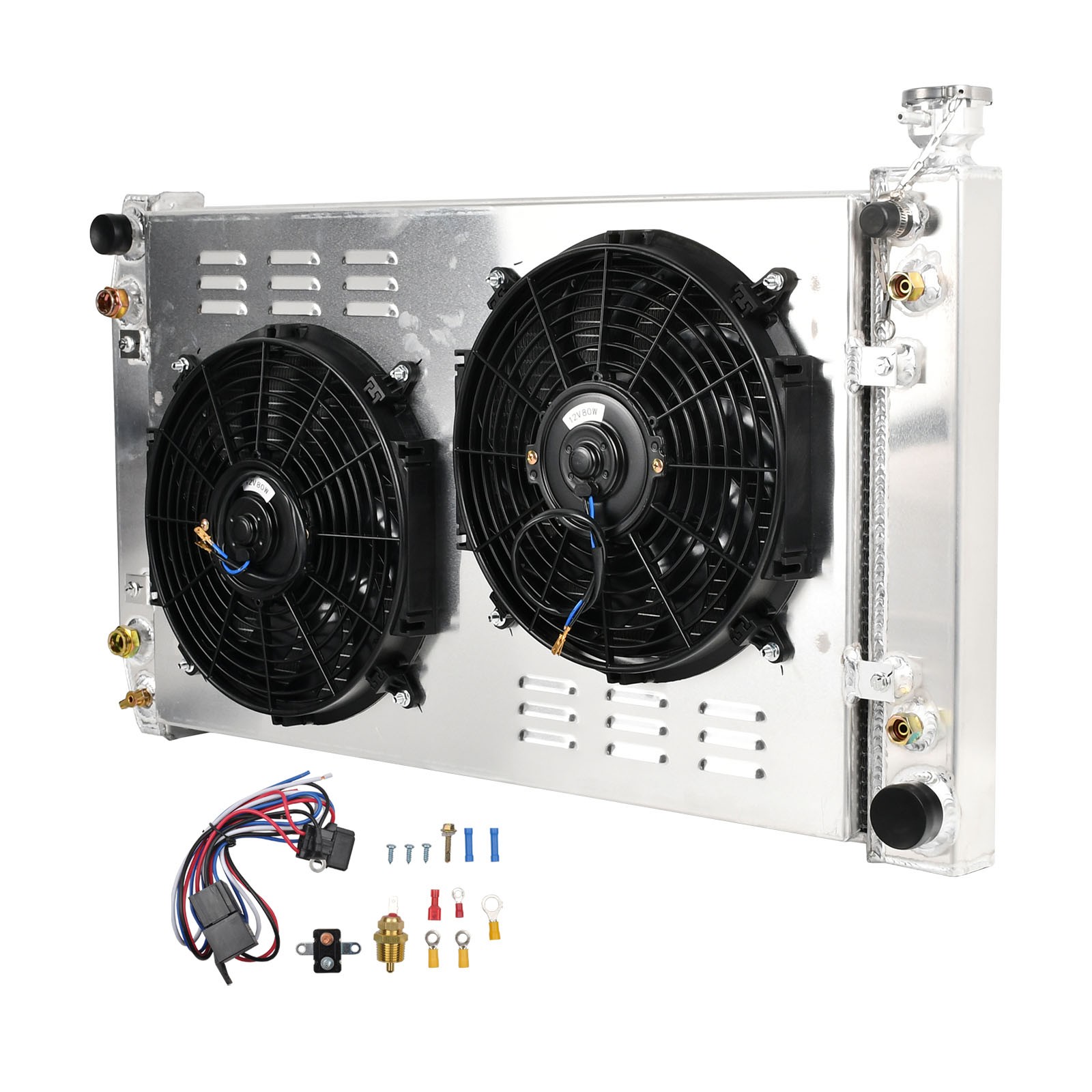

3 Row Aluminum Radiator+Shroud Fan+Relay For 88-99 Chevy GMC C1500 C2500 C3500
Description:
- 100% Brand new,never been used
- This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
- This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
- The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
- Professional installation in highly recommended
- Noinstruction
- Radiator:
- Material: Full Aluminum
- 3-Row Light-Weight Racing Design
- Core Dimensions: 438 x 718 x 44mm (17.24" x 28.27" x 1.73")
- Overall Dimensions: 514 x 857 x 139mm (20.24" x 33.74" x 5.47")
- Upper Inlet: 1.25"
- Lower Outlet: 1.55"
- Direct Bolt-On OE Fitment or Replacement
- Shroud Fan:
- 12V, 80W
- Fan Diameter: 12.44”
- Fan Thickness: 2.36”
- Number of Blades: 10 blades
- Maximum Fan CFM: 800 cfm
- Maximum Fan RPM: 2000±10% rpm
- Blade Material: Plastic
- Amp Draw: ≤7.5 amps
- Thermostat Relay Kit:
- Universal fit for any automotive vehicle and electric fan.
- Activates by grounding electric fans at preset temperature.
- 180'F turn-on temperature, 165'F turn-off temperature.
- RED + connect directly to battery.
- WHITE wire to ignition switch power source.
- BLACK goes to thermos switch.
- BLUE wire goes to the Fans.
- This set up will run Fans & pull air in through radiator.
Package Includes:
- 1X Aluminum Radiator (Includes Radiator Cap)
- 1X Aluminum Shroud
- 2X 12" Fans (Includes mounting kits)
- 1X Thermostat Relay Kit
- As the pictures
- 1988-1999 Chevrolet C1500 5.0L
- 1988-1999 Chevrolet C1500 5.7L
- 1988-1999 Chevrolet C2500 5.0L
- 1988-1999 Chevrolet C2500 5.7L
- 1988-1994 Chevrolet C3500 5.7L
- 1988-1999 Chevrolet K1500 5.0L
- 1988-1999 Chevrolet K1500 5.7L
- 1988-1999 Chevrolet K2500 5.0L
- 1988-1999 Chevrolet K2500 5.7L
- 1988-1994 Chevrolet K3500 5.7L
- 1988-1999 GMC C1500 5.0L
- 1988-1999 GMC C1500 5.7L
- 1988-1999 GMC C2500 5.7L
- 1988-1999 GMC C2500 5.0L
- 1988-1994 GMC C3500 5.7L
- 1988-1999 GMC K1500 5.0L
- 1988-1999 GMC K1500 5.7L
- 1988-1999 GMC K2500 5.7L
- 1988-1999 GMC K2500 5.0L
- 1988-1994 GMC K3500 5.7L
- 1992-1993 Chevrolet C1500 Suburban 5.7L
- 1992-1993 Chevrolet C2500 Suburban 5.7L
- 1992-1993 Chevrolet K1500 Suburban 5.7L
- 1992-1993 Chevrolet K2500 Suburban 5.7L
- 1992-1993 GMC C1500 Suburban 5.7L
- 1992-1993 GMC C2500 Suburban 5.7L
- 1992-1993 GMC K1500 Suburban 5.7L
- 1992-1993 GMC K2500 Suburban 5.7L
- For the year and models, please check the compatibility.
Item SpecificsBrand SpmotoringType Radiator & Shroud Fan & Thermostat RelayTransmission Oil Cooler / TOC YesEngine Oil Cooler / EOC YesMaterial AluminumFitment Type Performance/CustomTransmission AT/MTStyle CrossflowOverall Dimensions 514 x 857 x 139mm (20.24" x 33.74" x 5.47")Core Dimensions 438 x 718 x 44mm (17.24" x 28.27" x 1.73")Filler Neck and Cap Included YesOutlet Diameter 1.55"Inlet Diameter 1.25"Rows 3 RowMounting Style Bolt-OnFan Size 12"Fan Thickness 2.36"Quantity of Fan Blades 10 BladesDRAW ≤7.5 AMPMaximum Fan RPM 2000±10% RPMMaximum Fan CFM 800 CFMFitment 1 For 96-97 Chevy P30 / GMC P3500 4.3L V6Fitment 2 For 92-95 Chevy/GMC Suburban 5.7L V8Fitment 3 For 88-95 Chevy/GMC C/K 1500 2500 Pick-Up 5.0 / 5.7L V8Fitment 4 For 94-95 Chevy/GMC C/K Pick-Up 4.3L V6Fitment 5 For 89-91 Chevy R/V Series 5.7L V8Fitment 6 For 94 Chevy Blazer - Full Size 5.7L V8Fan Power 12V, 80WPlacement on Vehicle FrontFan Diameter 12.44"
