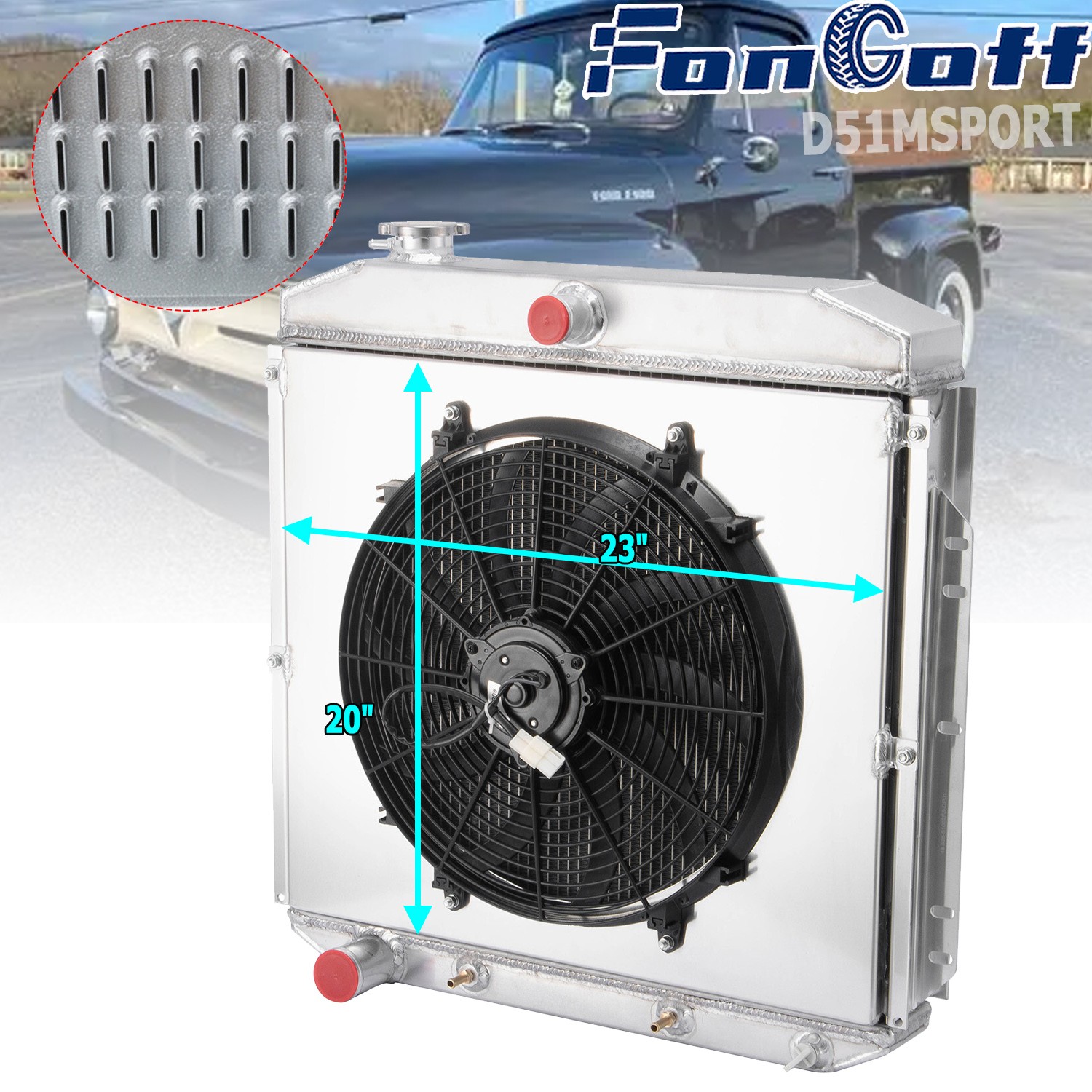

SIGN UP NOW! 3 Row Radiator+Shroud Fan For 1953-1956 54 Ford F350 F250 F100 Pickup Truck V8 DESCRIPTION
Application:
For Ford F350 F250 F100 Pickup Trucks L6 V8 Engine 1953-1956FORD ENGINE ONLY
This radiator is designed for V6 or a V8 engine but does NOT work on a flathead engine.
Package Include:
1 X 3-RowAluminum Radiator
1X Radiator Cap
1 XAluminum Shroud
1 X 16\" Fan (Includes mounting kits)
Specification:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material:Aluminum
Core Size：20\"Height X23\"Width
Overall Size: 26 1/4\"HeightX 26 3/4\"Width
Inlet Diameter: 1 1/2\"Center
Outlet Diameter: 1 3/4\" Driverside
Transmission Oil Cooler:￠26×200×1/8-27NPT（T）
This radiator is easy to buy wrong, please check the Inlet & Outlet Location before you purchase!
Fan Specification:
Diameter : 16\'\' (Blade to Blade)
Voltage: DC 12 Volts
Wattage:120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95\"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.
Description:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1 Higher density core: cooling rows are spaced 3/8\" apart.giving you 25% more rows within the core than other aluminum radiators.
2 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
Aluminum Shroud+Fan:
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
