DESCRIPTION

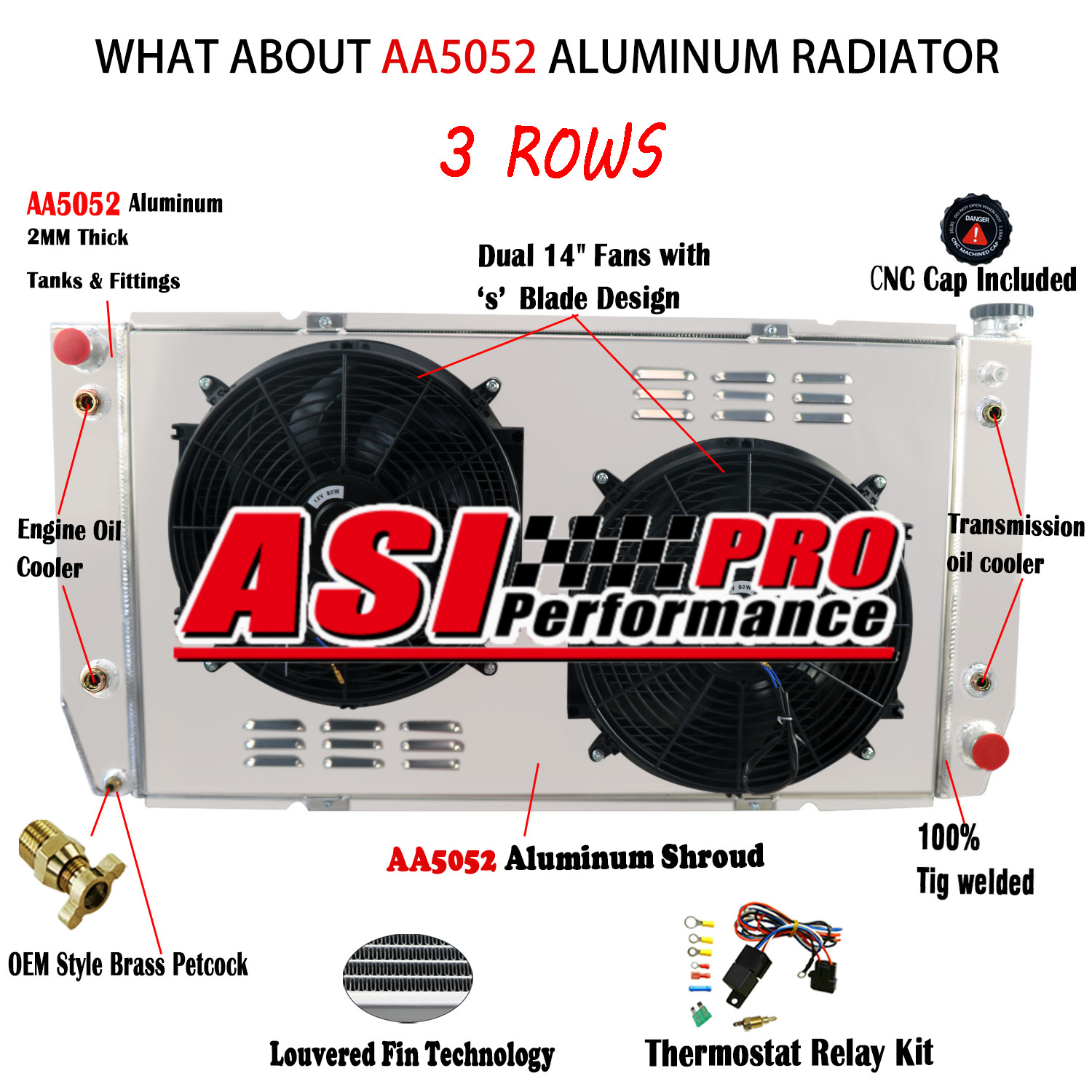

1 x CNC Machined Radiator Cap
Radiator Size:
Material: Full Aluminium
Row: 3 Row Core
Radiator Flow: Cross Flow
Core Size:19 5/8\'\' x 34\'\'
Overall Size:21 5/8\'\' x 40 5/8\'\'
Cross Reference Part#:
CU1696, 1696, SC1696, 20621, 20631, 20731, 20747, 20833, 52457702, 52458845, 52460853, 52461600, 52461782, 52465218, 52467215, 52467232, 52469436, 52469670, 52470717, 52471641, 52477772, 52478924, 52489551, 52491621, 52493120, CU2319, HK9494, PX9494, RO9494
Vehicle Fitment:
For 1988-2000 GMC C3500 7.4L V8For 1989-2000 GMC K3500 7.4L V8For 1991-2000 GMC C2500 7.4L V8For 1991-2000 GMC K2500 7.4L V8For 1992-1999 GMC C2500 Suburban 7.4L V8For 1992-1999 GMC K2500 Suburban 7.4L V8For 1991-2000 GMC C3500HD 7.4L V8For 1988-2000 Chevrolet K3500 7.4L V8For 1988-2000 Chevrolet C3500 7.4L V8For 1991-2000 Chevrolet C2500 7.4L V8For 1991-2000 Chevrolet K2500 7.4L V8For 1992-1999 Chevrolet C2500 Suburban 7.4L V8For 1992-1999 Chevrolet K2500 Suburban 7.4L V8
For 1991-2000 Chevrolet C3500HD 7.4L V8
Maximum Fan CFM: 1730 cfm
Fan Diameter: 14.050\"
Thickness: 2.500\"
Number of Blades:8S-Typeblades
Blade Material: Plastic
Amp Draw: 12.70 amps
Thermostat KitInstallation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185\'F turn-on temperature, 165\'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
The New Design fan and theAA5052fan shroud effectively drive theheat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
7.Carefully crafted to exceptional OE standards for precise fit.
