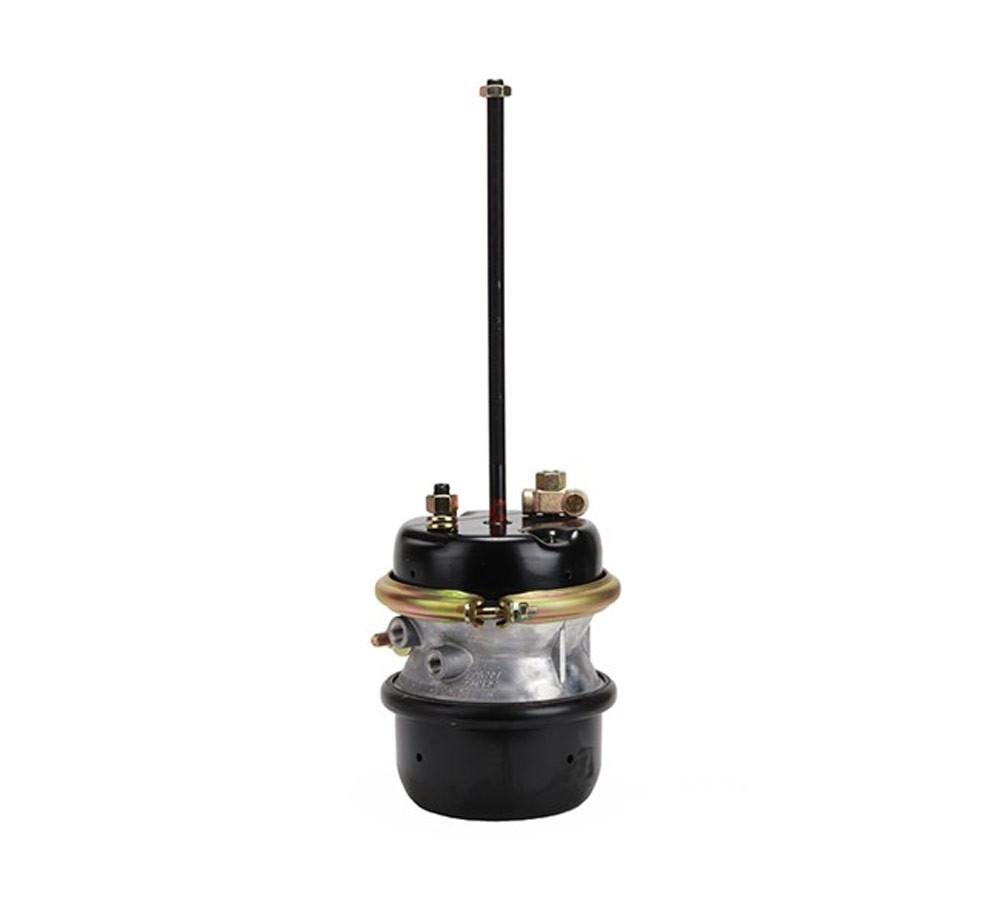

Product Description30/30 Air Brake Chamber Replaces 801300 801690 GC3030 GC3030P40 K049882 1010447

Mount Holes Center To Center Length: 4.75\"
Mounting Bolt Thread Diameter: 0.625\"
Mounting Bolt Thread Pitch: 11
Push Rod Diameter: 0.625\"
Push Rod Length: 13.5\"
Push Rod Thread Pitch: 18
Ram Stroke: 2.5\"
Stroke Type: Standard
Color: Silver, Black

Get this30/30 Type Springbrake Chamber with 3\" Standard Stroke -Replaces OEM 3030-TSX, 3030017, 3030BC, 3030CHINL, 3030CIS, 3030CL, 3030GC, 85132097, 85132758, SB3030CH, NT3030STD78, NT3030STD78TC from Mytee Products. This heavy-duty 30/30 combination air brake chamber is designed for use in commercial trucks, trailers, and buses equipped with air brake systems. It combines both service braking and parking/emergency braking functions into a single, compact unit, ensuring reliable braking performance and enhanced safety. Find the detailed specifications and functionality of this product below:

Dimension Details: This brake chamber is built to standard Type 30/30 standard-stroke specifications. The unit includes a 0.625\" diameter push rod with a 13.5\" length, designed to deliver a 2.5\" standard ram stroke. It is equipped with round air ports having a 0.375\" thread diameter. The mounting configuration includes 4.75\" center-to-center mount holes and 5/8\"-11 mounting bolts, allowing direct installation on compatible brake spiders.
Functionality: This Type 30/30 brake chamber is a critical component of the air brake system. The service chamber converts compressed air into mechanical force during normal braking, pushing the push rod outward to actuate the slack adjuster and apply the brakes. The spring chamber provides automatic parking and emergency braking by applying force when air pressure is released. This dual-function design ensures controlled braking during operation and fail-safe braking when air pressure is lost.

Compatible with the following brands and part numbers:

Fits OE Aftermarket: 1010447, 1010449, 112PSB3030CC, 12560, 3030-15, 3030-TSX, 3030017, 3030BC, 3030CHINL, 3030CIS, 3030CL, 3030GC, 3030SCB20, 3030TSI, 3230051X, 5017451, 5017791, 745NT3030STD78TC, C0301305, SCA3030LSWC-225, SCA3030S, SNSZAJ3430051X, T3030S1, TR030C
Fits Haldex: 1393030003, 1393030167, GC3030, GC3030P40, GC3030R, HDX GC3030, MID3030P76, MIDGC3030, SB3030LTPX
Fits Bendix: 165255, 5007132, 800831, 801130, 801300, 801690, 802547, 802548, 802631, 802708, 803030, 803061, BEN NT3030STD78, BW NT3030ELSKIT, BW NT3030STD120, BW NT3030STD78, BW NT3030STDKIT, BWNT3030STD78TC, K022869, K022872, K049882, K049896, K049897, K049898, K049899, K049900, K049902, K049904, NT3030STD-120, NT3030STD-56TC, NT3030STD-78, NT3030STD-78TC, NT3030STD120, NT3030STD120BXW, NT3030STD78, NT3030STD78TC
Fits Mack: 19-QE-441-RP1, 19QE441RP1, 55543431051
Fits Freightliner: 2830645, 3030TS, HDX GC3030R
Fits MGM Brakes: 3030076, 3430551, MM3430051X
Fits Saginaw: 3030CC, 3030CC-50
Fits OTR: 3030SB-INTRX
Fits International: 456-254-C, 456-255-C, 991071C, ZAJ 3430051, ZAJ3230051X, ZAJ3430051X, ZZGC3030LR, ZZGC3036LCW, ZZGP3036
Fits Automann: 55543230051, 55543230051X, 55543430051, 55543430051X, AM179SB3030S, AMSB3030S
Fits VNL Truck: 85132097, 85132758
Fits Alliance Parts: ABPN42A33030CD
Fits Match Made Parts: ACA-78961700
Fits Fleetrite: FLT3030SCB20, FLTC30301305
Fits Meritor: INT3030C-2, R873030C
Fits Proline HD: PLBTS-3030, PLBTS-3030X
Fits Metaris: RBPBTS-3030
Fits TRP: SB13030, SB23030, SB3030TRX
Fits Paccar Parts: SB3030CH
Fits Di-Pro Inc.: TK 12500
Fits Torque: TR3030C

When to Replace the Old Brake Chamber

Air leaks or loss of air pressure in the brake system
Reduced braking performance or inconsistent brake response
Push rod not extending or retracting properly
Corrosion, physical damage, or weakened spring brake action
Failure of the parking or emergency brake to hold the vehicle securely
Safety Points to Consider While Replacing It
Always cage the spring brake before servicing a combination chamber.
Fully depressurize the air brake system before removal.
Never disassemble a brake chamber that is not properly caged.
Use appropriate tools and follow standard safety procedures.
After installation, test for air leaks and verify correct push rod stroke.

How to Replace It

Park the vehicle on level ground and block the wheels.
Drain air from the brake system completely.
Cage the spring brake chamber securely.
Disconnect air lines and remove mounting nuts.
Remove the old brake chamber from the brake spider.
Install the new brake chamber and secure it with mounting hardware.
Reconnect air lines and uncage the spring brake.
Re-pressurize the system and test for proper operation and air leaks.

18 Month Warranty: This product is covered for one year, 100,000 miles after the installation, or 18 months after the purchase, whichever comes first. The product’s warranty is only active when the parts have defective material or workmanship defaults. Inappropriate application will lead to the dismissal of the warranty. Additionally, the warranty doesn’t cover the parts that fail or get damaged due to misuse, misapplication, or accident. If the customer wishes to return/replace this product under warranty, reach out to us. The team will verify by doing a thorough inspection and if they find a defect that is covered in above mentioned warranty; the product will be replaced without any charge. We disclaim liability for labor or consequential damages of any nature. We request the customers to wait until the claim is resolved and settled from our end after replacement is requested under warranty.
