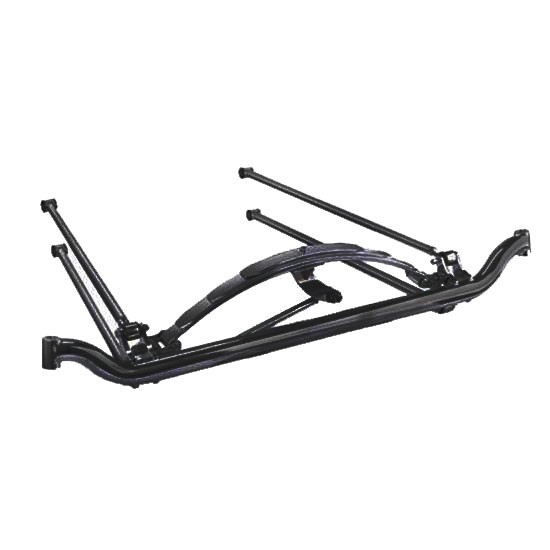

49-'54 Chevy Spindles, Max car weight 2500 lbs, Plain steel, Two 1-3/4" spring shackles w/ nylon bushings, two spring pivots, 26" 4 leaf cross spring w/ nylon buttons, 48" eye-to-eye 4" drop tube axle, four brackets welded to axle, Four radius rods, four 4-bar ends, four jam nuts, panhard bar assembly, Spring U-bolts and frame mounts sold separately Chevy Spindles - 4-Bar Spring-Behind Front End, Plain Sku # 91339024 Mfr. Part # 91339024 Condition New Brand Speedway Motors Sold Kit Details Tube axle works with 1949-1954 early Chevy passenger car spindles. Works great for T's and lightweight, fenderless vehicles (maximum car weight 2500 lbs.).
Kit includes:
- Two 1-3/4" spring shackles w/ nylon bushings
- Two spring pivots
- 26" 4 leaf cross spring w/ nylon buttons
- Tube axle, 48" eye-to-eye, 4" drop
- Four brackets welded to axle
- Four radius rods
- Four 4-bar ends
- Four jam nuts
- Panhard bar assembly
- Spring U-bolts sold separately
Specs MFG. Part # 91339024 Front Suspension Type Straight Axle Suspension Height Adjustment 4 Inch Lowered Control Arm Style 4-Bar Shock Type Not Included Spring Type Leaf Spring Finish Natural Bolt Pattern Not Applicable Rotor Diameter Not Included Spindle Style Chevy/GM Custom Dropped Spindles No Dropped Axle Yes Dropped Control Arms No Front Leaf Spring Style Spring-Behind Axle Spindles Included No Brakes Included No Steering Included No Welding Required No Straight Axle Style Tube Reviews great price Rated by grumpy on December 06, 2022
Summary: frt axle for my 31 modelA
Yes, I recommend this product.
great piece Rated by gbogh on March 02, 2017
Summary: Building my first rat and all of the kits i have ordered were great.Makes it easy for first time builder.
Yes, I recommend this product.
tube axle fit Rated by collins23 on September 13, 2013
Summary: used to muscle car parts that bolt right up. was suprised at little mods that needed to be made. Kingpin area had to be durred some to fit.Also tube axle used set screw to hold kingpin. Kingpin set is universal for regular axle or tube, so notch in kingpin doesn't line up in the set screw application, had to grind up to make a flat area.
Yes, I recommend this product.
