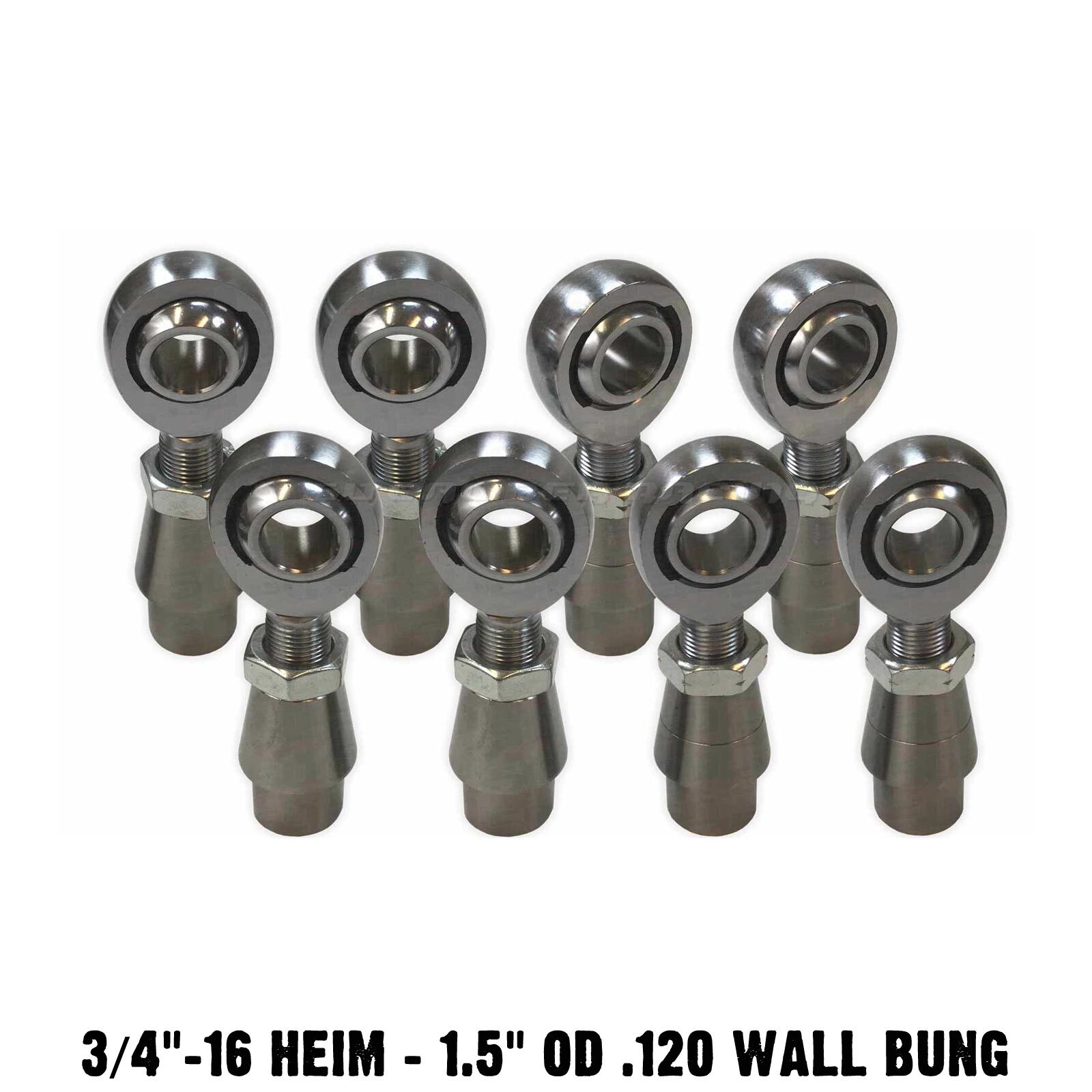

listing template designed by DSUTV 4 Link Radius Rod Fabrication Kit3/4" Chromoly / PTFE Heims - 1.5 OD .120 Wall Product Description 50 Caliber Racing 4 Link Radius Rod Kit - 3/4-16 Chromoly Heim Joint w/ Bung - 1.5" OD x .120 Wall x 1.26" ID Tube Rod end fabrication kit complete with 3/4 x 3/4 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapter). Designed specifically for 1.5" OD tubing, with wall thickness of .095. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The load rating and size make these excellent for building custom sway bar links, tie rods and 4 Link radius arms for 4x4s, Jeeps, trucks, sand rails and more. Includes 4 Left hand thread and 4 Right hand thread heim joints, jam nuts, and matching bungs.
Includes:
- (4) 3/4-16 x 3/4 bore Heim - RH Thread
- (4) 3/4-16 x 3/4 bore Heim - LH Thread
- (4) RH Jam Nut
- (4) LH Jam Nut
- (4) RH Weld in Bung (tubing adapter)
- (4) LH Weld in Bung (tubing adapter)
* Note: Does not include high angle misalignment spacers. They are available separately, contact us for more info. Specifications: Heim Joints:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- Static radial load rating: 28,081 lb
- Thread pitch: 3/4"-16
- Bore: 3/4"
- Socket end diameter: 1.750"
- Socket width: .687"
- Ball width: .875
- Center line length: 2.875" Bungs:
- Thread: Female 3/4"-16
- Material: Chromoly Steel
- Thread Length: Full length
- 1.5" OD x .120 Wall x 1.26" ID
Perfect for fabricating custom suspension and steering links for Sand Rails, Hot Rods, Race Cars, 4x4s, Rock Crawlers and more! - Radius rods
- 4 Link setups
- Panhard bar / Trackbar
- Drag links
- Tie rods
- Sway bar links
- Control arms
- Hi steer
For more Off Road parts, fabrication supplies, heim joints, rod end kits, weld in bungs, split tube clamps and more, please visit our store
50 Caliber Racing Rod End Kits
- Heavy Duty 4130 Chromoly Heim Joints
- Heim Joints have nylon / PTFE Liner
- Low profile chromoly jam nuts
- Beveled bungs for better clearance
- Bungs are fully threaded all the way through
- Extremely high load ratings for heim joint size
- Excellent for fabricating all kinds of custom linkage
- Free shipping to Continental USA!
- UTV-6101A25-001
