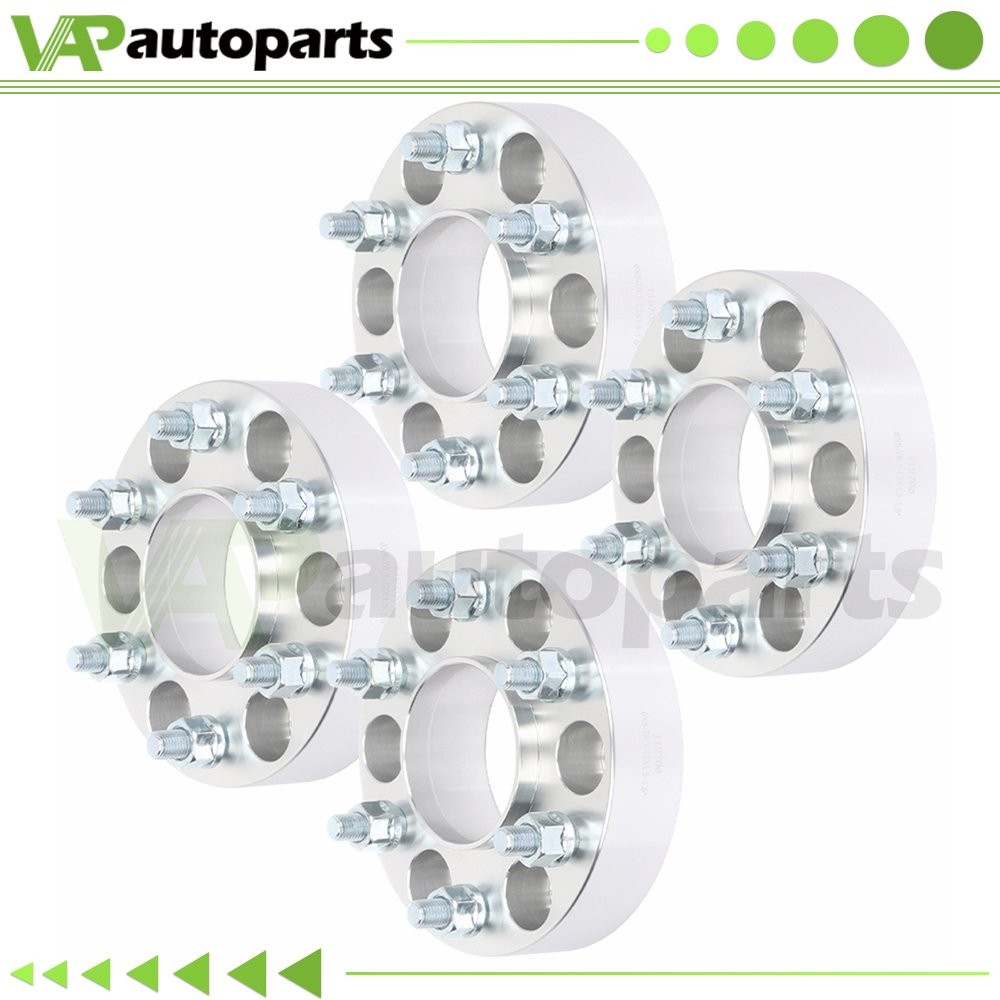

Product Specifications:(Please make sure you take the proper measurements before purchasing)Quantity: 4pcsThickness: 1.5 inch (38mm) per spacerHub Bore Size: 78.1mmVehicle Bolt Pattern: 6x5" (6x127mm)Wheel Bolt Pattern: 6x5" (6x127mm)Thread Pitch: M12x1.5Compatibility Information:(Please check the compatibility chart carefully before SSR 2003-2006Chevrolet Trailblazer 2002-2009Chevrolet Trailblazer EXT 2003-2006GMCGMC Envoy 2002-2009GMC Envoy XL 2002-2006GMC Envoy XUV 2004-2005How to choose the correct wheel spacers: 4 Pcs 1.5" 6x5/ 6x127 Hub Centric Wheel Spacers For Chevy Trailblazer 2002-2009
Product Specifications:
(Please make sure you take the proper measurements before purchasing)
Quantity: 4pcs
Thickness: 1.5 inch (38mm) per spacer
Hub Bore Size: 78.1mm
Vehicle Bolt Pattern: 6x5" (6x127mm)
Wheel Bolt Pattern: 6x5" (6x127mm)
Thread Pitch: M12x1.5
Compatibility Information:
(Please check the compatibility chart carefully before purchasing)
Chevrolet
Chevrolet SSR 2003-2006
Chevrolet Trailblazer 2002-2009
Chevrolet Trailblazer EXT 2003-2006
GMC
GMC Envoy 2002-2009
GMC Envoy XL 2002-2006
GMC Envoy XUV 2004-2005
How to choose the correct wheel spacers:
STEP. Check 3 specifications
The following is the easy and simple way to check the bolt pattern/PCD, center/hub bore and thread pitch. If you donot sure, please just message us with the year, make and model of vehicle.
1). Check Vehicle Bolt Pattern/PCD For 4-lug, 6-lug, 8-lug, measure the segment from the CENTER of a bolt hole TO the CENTER of another hole. 5 lug is different, you need to measure the back of the hole to the center of the second bolt hole (not center point).(See Bolt Pattern Diagram below)
2). Check Vehicle Hub/Center Bore Size Measure the diam of the center bore on hub, make sure the spacer's diam is equal to or bigger than the axle diameter.
3). Check Vehicle Thread Pitch There are different types of studs, such as M12x1.25, M14x1.5, M12x1.5, 1/2"x20, 9/16"x18, please make sure the studs of wheel spacers is the same as the vehicle's, otherwise the spacer will not fit.
How to install the wheel spacers:
1). IMPORTANT - ADAPTER OR SPACER MUST SIT FLUSH AGAINST VEHICLE HUB, AND WHEEL MUST SIT FLUSH AGAINST ADAPTER OR SPACER! Stock studs must be trimmed down (shortened) if they protrude past the surface of the adapter or spacer. If not, vibration or other problems can occur. Some wheels have pockets that may allow for no stud trimming. If not, studs MUST be trimmed.
2). Make sure the mounting surface (vehicle hub) is clean and flat, and remove all retaining clips.
3). Install the adapter to the vehicle, with the proper lug nuts, and torque to manufacturer’s wheel torque specs.
4). Install the wheel to the adapter by torquing to the vehicle manufacturer’s wheel torque specifications (again, max 140 ft-lbs). Please assure the proper thread engagement (6 to 8 full turns) on lug nuts or bolts.
5). Drive the vehicle. If no problems (noise, vibration, anything out of the ordinary), drive about 5 miles, then re-torque the lug nuts attaching the spacer or adapter to the hub.
Item SpecificsBrand :Ignition coilManufacturer Part Number :IG82619601ilType :Wheel SpacersQuantity :4pcsThickness :1.5 inch / 38mmVehicle Bolt Pattern :6x5" or 6x127mmWheel Bolt Pattern :6x5" or 6x127mmHub Bore Size :78.1mmHubcentric :YesThread Pitch :M12x1.5 / 12mmX1.5 / 12x1.5Stud Grade :10.9Color :SilverLug Patterns :6 LugsMaterial :High Quality T6-6061 Billet AluminumSurface Finish :CNC Machined Polished Aluminum FinishPlacement on Vehicle :Left Right Front RearFitment :for Chevrolet SSR Trailblazer GMC EnvoyInterchange Part Number :fits 2002-2009 Chevy Trailblazer GMC EnvoyOther Part Number :for chevy trailblazer wheel spacersSuperseded Part Number :6x5 wheel spacersWarranty :1 YearReturn :Free 30 day returnsDelivery Area :The USAPlace of Delivery :Ontario,California
Shipping 1.Warehouse is located in Los Angeles, California, where local pickup transaction is temporarily not available.2.USPS PO Box, APO Army Post Office, FPO Fleet Post Office addresses are not available.3.We usually need a 1-2business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6business days after your payment is received.4.Your auto parts sometimes might be shipped with two or more separated packages due to weight limitation, please keep patient with no Item Not Received claim or Return request filed until by all of your items are received.5.Seller is required to purchase signature confirmation to be protected if a buyer reports an item not received or opens a payment dispute if the order has a total cost (including shipping costs and any taxes) of $750 or more.Warranty
1.The warranty terms only apply to all the auto parts purchased from VAP-AUTOPARTS.
2.VAP-AUTOPARTS carries no warranty responsibilities for any auto parts removing fees, installation fees, consulting fees, labor costs, towing charges, rental car reimbursements.
3.VAP-AUTOPARTS promises free replacement due to quality defects or item not as described issues within 60 calendar days from the date when buyers receive their items in the situation when buyers are willing to provide convictive proofs or professional diagnose report if required, otherwise VAP-AUTOPARTS has the right to refuse any replacement requests.
4.VAP-AUTOPARTS promises free replacement due to quality defects or item not as described issues after 60 calendar days from the date when buyers receive their items in the situation when buyers promise to prepay 15% of the original item sales price as postage for replacement, otherwise VAP-AUTOPARTS has the right to refuse any replacement requests.
5.VAP-AUTOPARTS carries no warranty responsibilities for any replacement due to car accidents, drag racing, unprofessional replacement, road hazard, disassembly.
Return
We stand behind every product we sell.
All of our brand new items come with a 30-Day money-back or exchange guarantee.
response
We maintain high standards of excellence (five stars review)and strive for 100% customer satisfaction!As a seller Positive response is very important to us, as well as ourcustomers. We hope that you contact us immediately BEFORE you give us neutral or negative response, so that we can satisfactorily address your concerns.
Warning
Please check the compatibility carefully before purchasing. If you are not sure about the model, please contact us in time.
