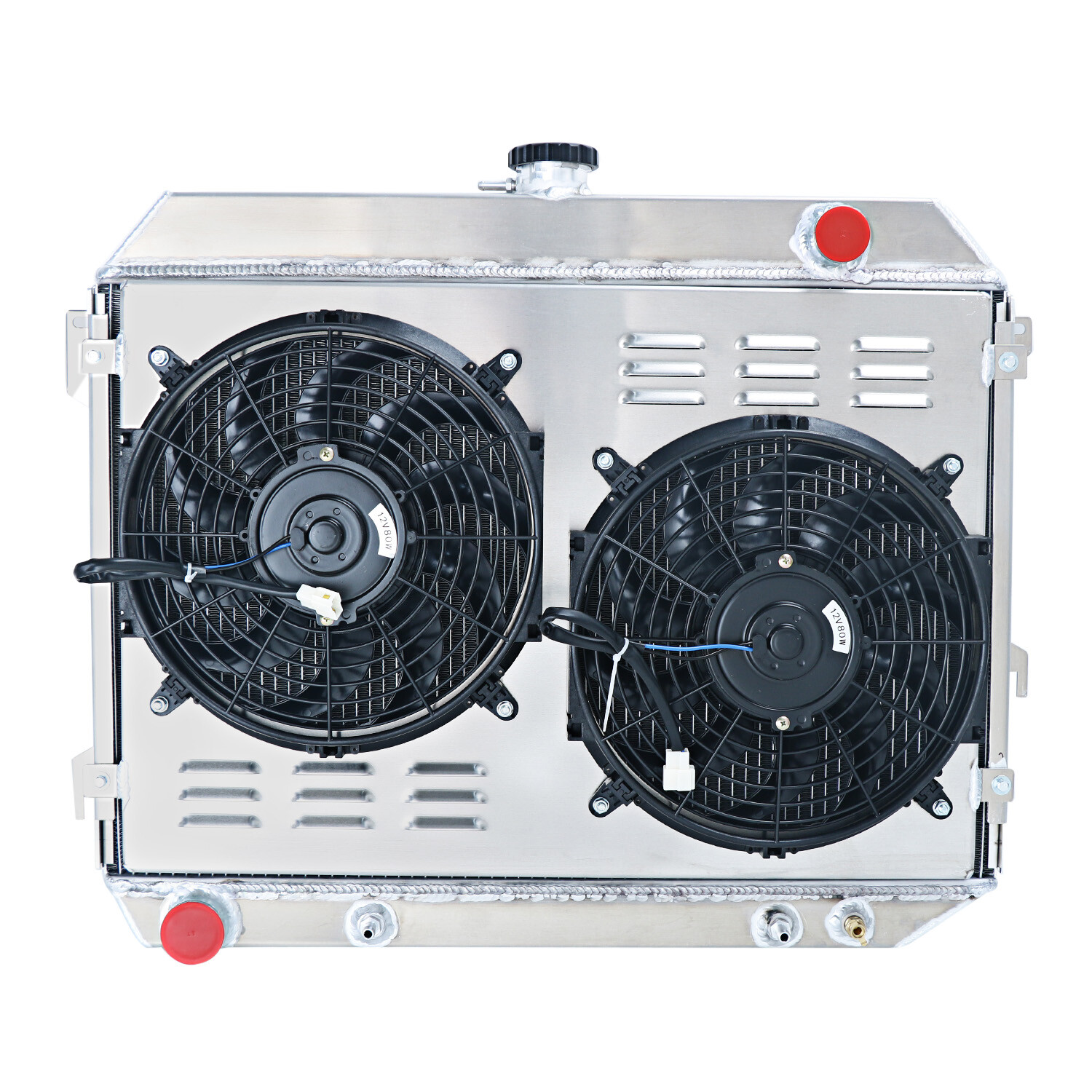

OVERFLOW 4-Row Radiator Shroud+Fan For 1968-74 Dodge Plymouth Mopar Cars 5.6L 6.6L 7.2L and /> ITEM DESCRIPTIONRadiator Size:
Condition:New
High Performance Racing Spec.
4-Rowof tubes Core Racing Design
Petcock Drain:OEMstyle brass petcock drain
Core Size 17 1/3\'\' x 26 2/7\'\' x 2 4/9\'\'
Overall Size 23\" HIGH X 28 8/9\" WIDE
Inlet Hose Connection:1 1/2 Passenger Side
Outlet Hose Connection: 1 3/4 Driver Side
Transmission Oil Cooler:Φ38*305*M10*1.0（T）
Vehicle Fitment1970-1971 DODGE SAPPORO 26\" WIDE CORE
1968-1972 DODGE CHARGER 26\" WIDE CORE
1968-1972 DODGE CORONET 26\" WIDE CORE
1968-1973 PLYMOUTH ROAD RUNNER 26\" WIDE CORE
1970 PLYMOUTH BELVEDERE 26\" WIDE CORE
1968-1973 PLYMOUTH SATELLITE 26\" WIDE CORE
1970-1973 PLYMOUTH BARRACUDA 26\" WIDE CORE
The New Design fan and theAA5052fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180\'F turn-on temperature, 165\'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
7. Carefully crafted to exceptional OE standards for precise fit.
