4 Sets Chromoly 5/8\" x 5/8\"-18 Heim Joint Rod Ends W/ 5/8-1/2 & Bungs .120\" Wall For Sale - New and Used

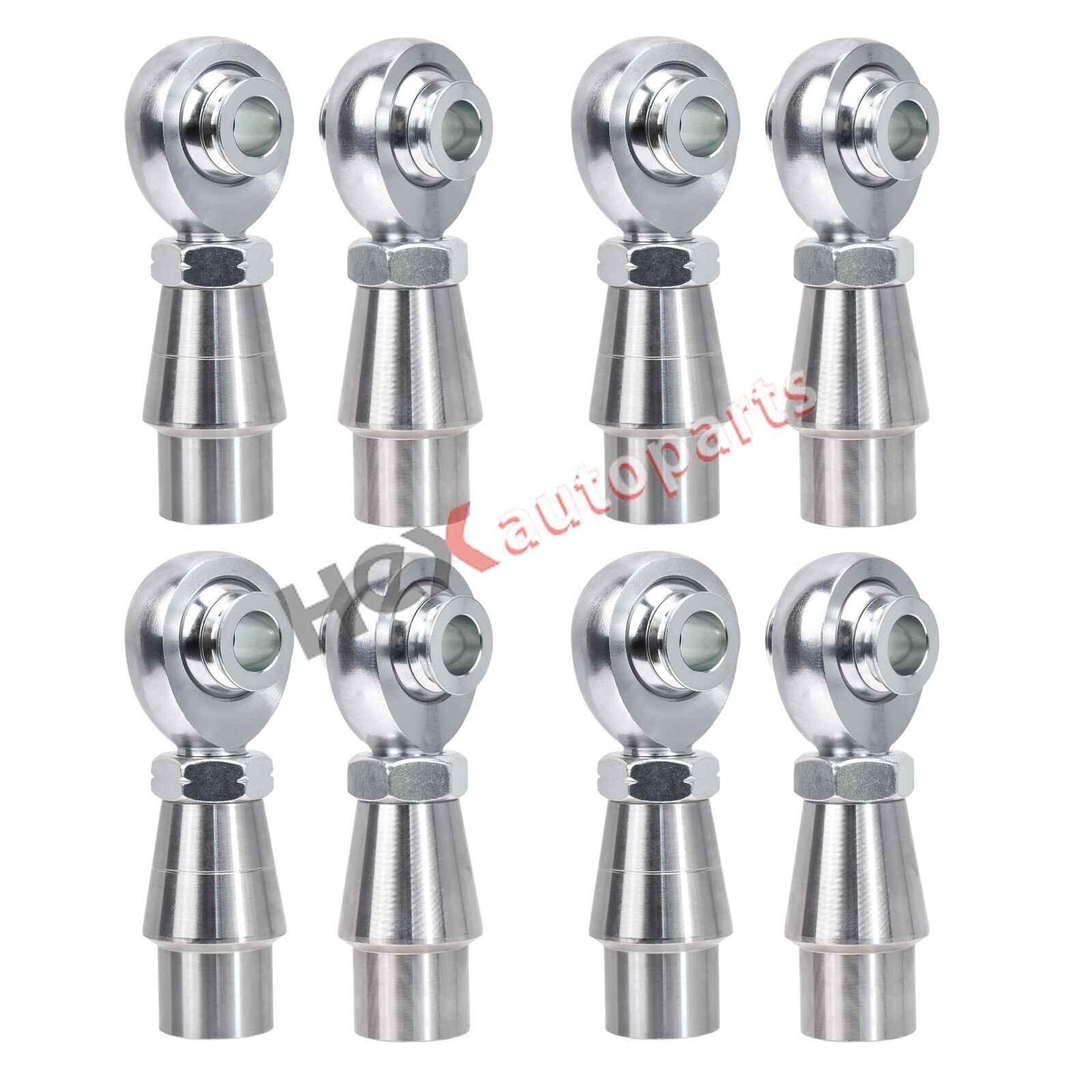

4 Sets Chromoly 5/8\" x 5/8\"-18 Heim Joint Rod Ends W/ 5/8-1/2 & Bungs .120\" Wall

Description

• Brand New and High Quality Aftermarket Product

• Rod End (XML10 & XMR10)

Material: Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
Thread Size: 5/8\"-18
Ball Bore: .625\"
Ball Width: .750\"
Centerline Length: 2.625\"
Thread Length:1.625\"
Load Capacity: 17,955lbs
Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck.

• 5/8 Bung(WTF-1010L & WTF-1010R)

Material:Carbon Steel

Thread Size: 5/8\"-18

Bung Size: 1\" 1/4 OD. x .120\" Wall x 1.01\" ID.

• High Misalignment Spacer Specs (HMS10-84)

Material: Zinc Plated Carbon SteelInsert Dia: .625Inside Bore: .500Outside Boss Dia:0.825Overall Length In Ball: 1.25Approximate Degrees: 54

• Jam Nut(JNL10S & JNR10S)

Thread: 5/8\"-18Width: Max 0.938\"-Min 0.922\"Height: Max 0.387\"-Min 0.363\"Carbon Steel, Silver Zinc PlatedPackage List4 x RH 5/8\"-18 Jam Nut4 x LH 5/8\"-18 Jam Nut4 x RH 5/8\"-18 Thread, 5/8\" Bore4 x LH 5/8\"-18 Thread, 5/8\" Bore4 x RH Tube Adapter4 x LH Tube Adapter16 x High Misalignment Spacer
