Thickness: 2 inch or 51 mm Vehicle bolt pattern: 5x5.5 inch or 5x139.7 mmWheelbolt pattern：5x5.5 inch or 5x139.7 mmThread Size：9/16" x 18Bolt Shack Length: 32 mmTorqued Down By Hand At: 135-145 FT/LBSHub Bore: 77.8 mmNumber of Pieces: 4pcs 4Pc 2 inch 5x5.5 Hub Centric Wheel Spacers For 2002-2013 Dodge Ram 1500 9/16"x18 Thickness: 2 inch or 51 mm
Vehicle bolt pattern: 5x5.5 inch or 5x139.7 mm
Wheelbolt pattern：5x5.5 inch or 5x139.7 mm
Thread Size：9/16" x 18
Bolt Shack Length: 32 mm
Torqued Down By Hand At: 135-145 FT/LBS
Hub Bore: 77.8 mm
Number of Pieces: 4pcs
Chrysler Aspen 2007-2009
Dodge Dakota 2005-2011
Dodge Durango 2004-2009
Dodge Ram 1500 2002-2010
Mitsubishi Raider 2006-2009
Ram 1500 2011-2013 (2012-2013 RAM 1500 used either 9/16″ or 14×1.5 Studs; Check stud size before ordering)
1. Check Your Vehicle Bolt Pattern/ PCD, Hub Bore Size, Thread Pitch, Vehicle fitment compatibility is only a guide.
2. Measure the fender gap and stock bolt length to choose suitable thickness.
3. It is possible that your existing lug nut studs can be longer than the adapter itself, you may need to alter your existing studs if the adapters do not sit flush with the wheels. If the studs are longer than the adapter, and the wheels do not have a hollow spot in them, you may need to grind, or cut your existing lugs if you choose not to purchase shorter studs. Otherwise, the adapter bolt can't work as normal and will greatly shorten the bolt's working life and bring danger to you.
4. PLEASE CONFIRM what you actuall need, wheel spacers or wheel adapters, they are different. Wheel Adapters are used to change bolt patterns in order to properly fit wheels from one vehicle to the hub of a different vehicle.
5. Clean the studs thoroughly and remove any excessive dirt, oil, grease etc. Thread the supplied lug nuts to axle studs with TAPERED end facing towards the spacers. Install the nuts by hand ONLY and tighten them in a crisscross pattern. Do not use impact wrench. Recommended to use threadlocker.
6.Please check all lug nuts and bolts of the adapters after the first 50 -100 miles. They may get loose after long time running. Make sure you will recheck them every 3000-5000 miles and screw tight.
7. Returns are only accepted if unused and not installed.(ReturnsARE NOT ACCEPTED IF SPACERS-ADAPTERS HAVE BEEN INSTALLED TO YOUR VEHICLE)
What are common problems with wheel spacers?
The main issue with a wheel spacer is thatit moves the wheel to a wider position whilst the rest of the suspension arms remain in the same place. In particular, the king pin inclination axis remains in the same place. Therefore, fitting a wheel spacer moves the wheel outboard and alters the scrub radius of the car.
How do I know if I need wheel spacers?
Wheel spacers are usedwhen the offset of the wheel is not ideal for the end package that you want. Whether it's because of too narrow of axles or not enough wheel offset, wheel spacers can put your tires and wheels where you want them to be under your fender.
Item SpecificsBrand ECCPPManufacturer Part Number ECP819483HKType Wheel SpacerQuantity 4pcsThickness 2" or 51mmVehicle Bolt Pattern 5x5.5" or 5x139.7mmWheel Bolt Pattern 5x5.5" or 5x139.7mmThread Pitch 9/16"x18 or 9/16" UNFHub Center Bore 77.8mmColor SilverHubcentirc YesStud Grade 10.9Warranty 1 YearMaterial High Quality t6 6061 Billet AluminumPlace of delivery Ontario,CaliforniaPackage Gross Weight 11.88lbSurface Finish CNC Machined Polished Aluminum FinishLug Patterns 5 LugsTorqued Down By Hand At 135-145 FT/LBSBolt Shank Length 35mmInterchange Part Number Dodge Ram 1500 2002-2010; Dodge Durango; Dodge DakotaOther Part Number Chrysler Aspen 2007-2009; Mitsubishi Raider 2006-2009Superseded Part Number 5x139.7 wheel spacers 2 inch thick Item SpecificsBrand ECCPPManufacturer Part Number ECP819483HKType Wheel SpacerQuantity 4pcsThickness 2" or 51mmVehicle Bolt Pattern 5x5.5" or 5x139.7mmWheel Bolt Pattern 5x5.5" or 5x139.7mmThread Pitch 9/16"x18 or 9/16" UNFHub Center Bore 77.8mmColor SilverHubcentirc YesStud Grade 10.9Warranty 1 YearMaterial High Quality t6 6061 Billet AluminumPlace of delivery Ontario,CaliforniaPackage Gross Weight 11.88lbSurface Finish CNC Machined Polished Aluminum FinishLug Patterns 5 LugsTorqued Down By Hand At 135-145 FT/LBSBolt Shank Length 35mmInterchange Part Number Dodge Ram 1500 2002-2010; Dodge Durango; Dodge DakotaOther Part Number Chrysler Aspen 2007-2009; Mitsubishi Raider 2006-2009Superseded Part Number 5x139.7 wheel spacers 2 inch thick
- InternationalBuyers PleaseNote:
4Pc 2 inch 5x5.5 Hub Centric Wheel Spacers For 2002-2013 Dodge Ram 1500 9/16"x18 Thickness: 2 inch or 51 mm Vehicle bolt pattern: 5x5.5 inch or 5x139.7 mm
Wheelbolt pattern：5x5.5 inch or 5x139.7 mm
Thread Size：9/16" x 18
Bolt Shack Length: 32 mm
Torqued Down By Hand At: 135-145 FT/LBS
Hub Bore: 77.8 mm
Number of Pieces: 4pcs
Chrysler Aspen 2007-2009
Dodge Dakota 2005-2011
Dodge Durango 2004-2009
Dodge Ram 1500 2002-2010
Mitsubishi Raider 2006-2009
Ram 1500 2011-2013 (2012-2013 RAM 1500 used either 9/16″ or 14×1.5 Studs; Check stud size before ordering)
1. Check Your Vehicle Bolt Pattern/ PCD, Hub Bore Size, Thread Pitch, Vehicle fitment compatibility is only a guide.
2. Measure the fender gap and stock bolt length to choose suitable thickness.
3. It is possible that your existing lug nut studs can be longer than the adapter itself, you may need to alter your existing studs if the adapters do not sit flush with the wheels. If the studs are longer than the adapter, and the wheels do not have a hollow spot in them, you may need to grind, or cut your existing lugs if you choose not to purchase shorter studs. Otherwise, the adapter bolt can't work as normal and will greatly shorten the bolt's working life and bring danger to you.
4. PLEASE CONFIRM what you actuall need, wheel spacers or wheel adapters, they are different. Wheel Adapters are used to change bolt patterns in order to properly fit wheels from one vehicle to the hub of a different vehicle.
5. Clean the studs thoroughly and remove any excessive dirt, oil, grease etc. Thread the supplied lug nuts to axle studs with TAPERED end facing towards the spacers. Install the nuts by hand ONLY and tighten them in a crisscross pattern. Do not use impact wrench. Recommended to use threadlocker.
6.Please check all lug nuts and bolts of the adapters after the first 50 -100 miles. They may get loose after long time running. Make sure you will recheck them every 3000-5000 miles and screw tight.
7. Returns are only accepted if unused and not installed.(ReturnsARE NOT ACCEPTED IF SPACERS-ADAPTERS HAVE BEEN INSTALLED TO YOUR VEHICLE)
What are common problems with wheel spacers?
The main issue with a wheel spacer is thatit moves the wheel to a wider position whilst the rest of the suspension arms remain in the same place. In particular, the king pin inclination axis remains in the same place. Therefore, fitting a wheel spacer moves the wheel outboard and alters the scrub radius of the car.
How do I know if I need wheel spacers?
Wheel spacers are usedwhen the offset of the wheel is not ideal for the end package that you want. Whether it's because of too narrow of axles or not enough wheel offset, wheel spacers can put your tires and wheels where you want them to be under your fender.
Item SpecificsBrand :ECCPPManufacturer Part Number :ECP819483HKType :Wheel SpacerQuantity :4pcsThickness :2" or 51mmVehicle Bolt Pattern :5x5.5" or 5x139.7mmWheel Bolt Pattern :5x5.5" or 5x139.7mmThread Pitch :9/16"x18 or 9/16" UNFHub Center Bore :77.8mmColor :SilverHubcentirc :YesStud Grade :10.9Warranty :1 YearMaterial :High Quality t6 6061 Billet AluminumPlace of delivery :Ontario,CaliforniaPackage Gross Weight :11.88lbSurface Finish :CNC Machined Polished Aluminum FinishLug Patterns :5 LugsTorqued Down By Hand At :135-145 FT/LBSBolt Shank Length :35mmInterchange Part Number :Dodge Ram 1500 2002-2010; Dodge Durango; Dodge DakotaOther Part Number :Chrysler Aspen 2007-2009; Mitsubishi Raider 2006-2009Superseded Part Number :5x139.7 wheel spacers 2 inch thick Item SpecificsBrand ECCPPManufacturer Part Number ECP819483HKType Wheel SpacerQuantity 4pcsThickness 2" or 51mmVehicle Bolt Pattern 5x5.5" or 5x139.7mmWheel Bolt Pattern 5x5.5" or 5x139.7mmThread Pitch 9/16"x18 or 9/16" UNFHub Center Bore 77.8mmColor SilverHubcentirc YesStud Grade 10.9Warranty 1 YearMaterial High Quality t6 6061 Billet AluminumPlace of delivery Ontario,CaliforniaPackage Gross Weight 11.88lbSurface Finish CNC Machined Polished Aluminum FinishLug Patterns 5 LugsTorqued Down By Hand At 135-145 FT/LBSBolt Shank Length 35mmInterchange Part Number Dodge Ram 1500 2002-2010; Dodge Durango; Dodge DakotaOther Part Number Chrysler Aspen 2007-2009; Mitsubishi Raider 2006-2009Superseded Part Number 5x139.7 wheel spacers 2 inch thick

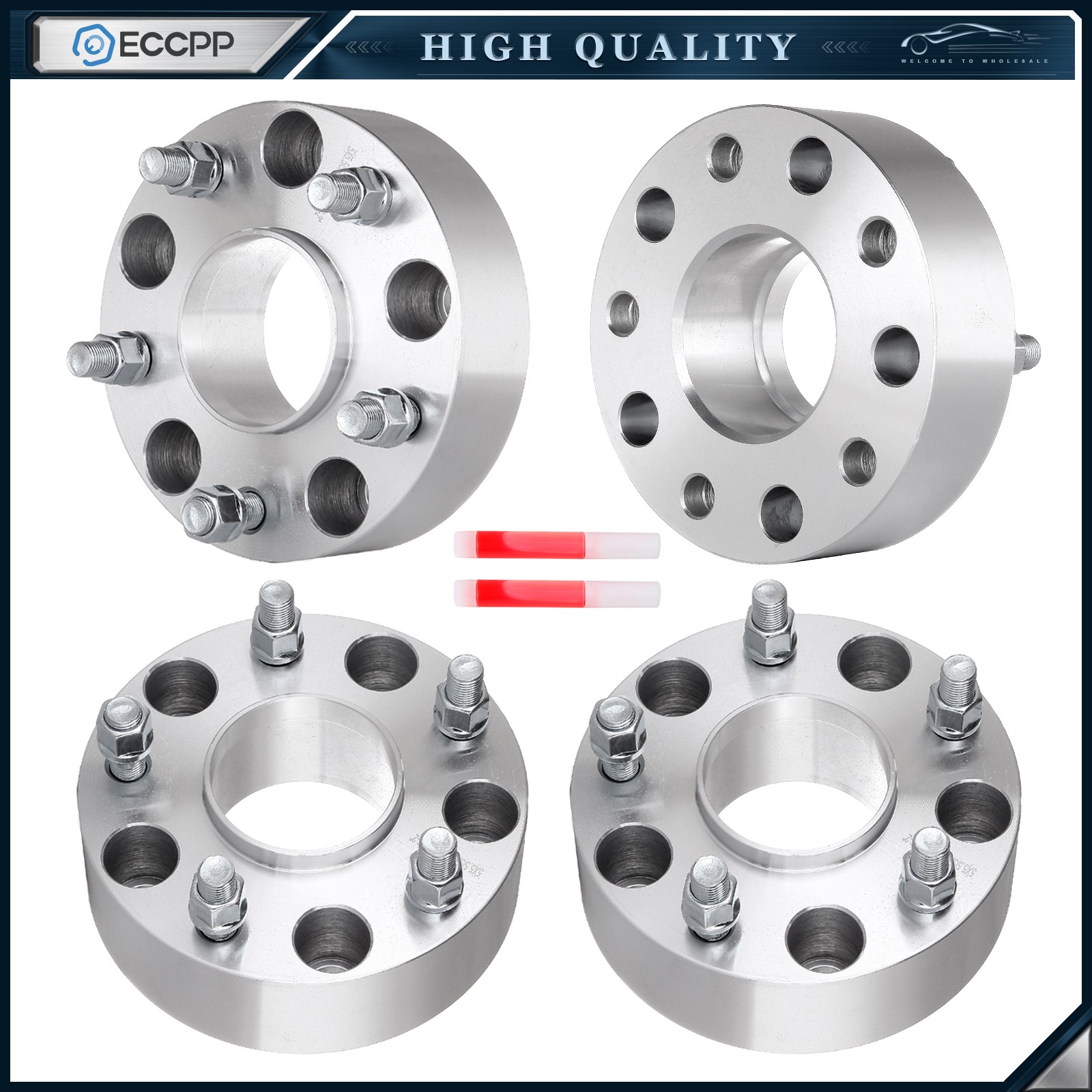

![4Pc 2 inch 5x5.5 Hub Centric Wheel Spacers For 2002-2013 Dodge Ram 1500 9/16\](parts-image-large/g/~jUAAeSw0pxobiFX/s-l1600/4Pc-2-inch-5x5-5-Hub-Centric-Wheel-Spacers-For-200.jpg "4Pc 2 inch 5x5.5 Hub Centric Wheel Spacers For 2002-2013 Dodge Ram 1500 9/16\")
