Items Description Package Include:

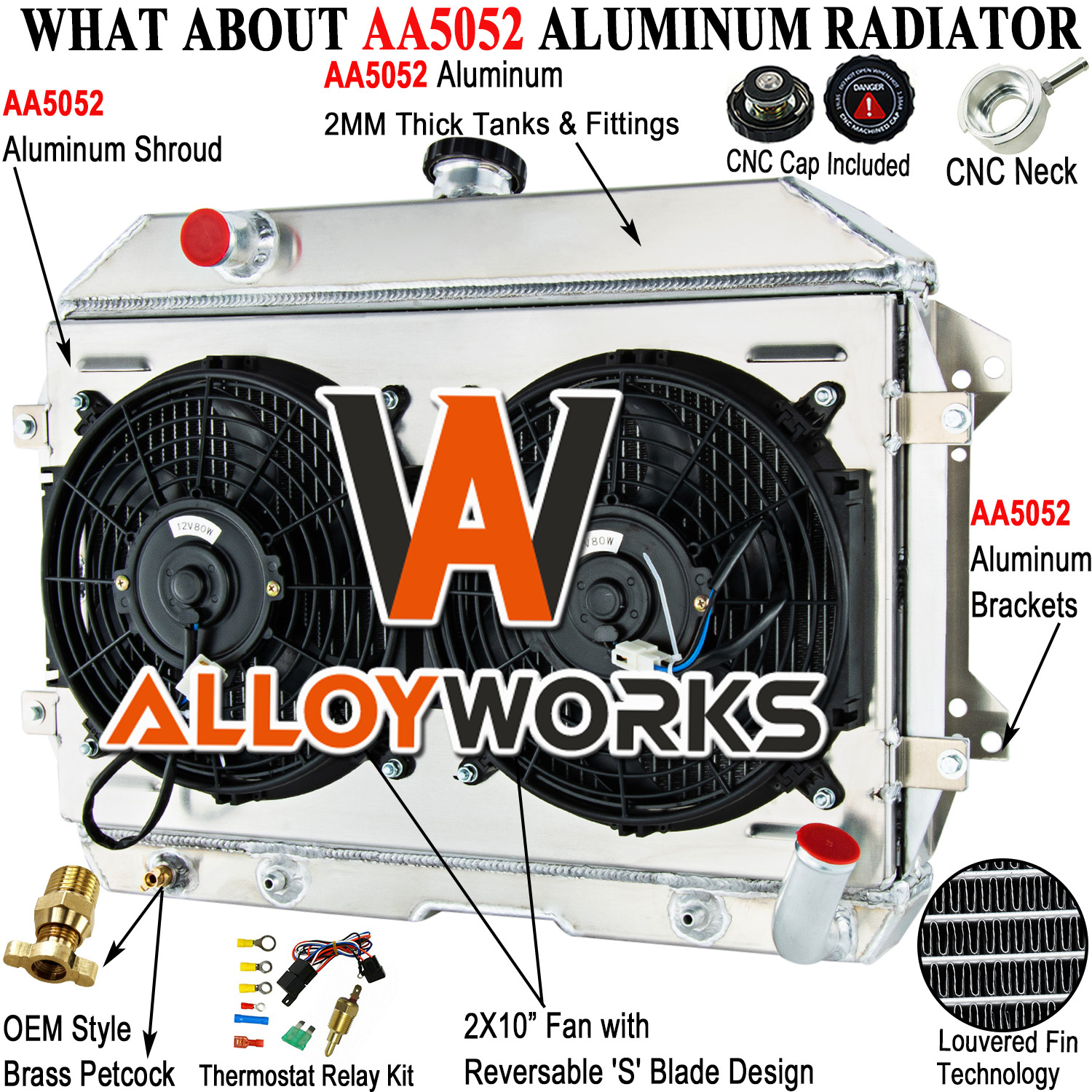

1 X 4-RowAA5052Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052Aluminum Shroud
2 X 10" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size
Row: 4 Row
Core Dimensions: 23.14" x 13.7"
Overall Dimensions: 27.36" x 19.29"
Hose Locations: IN: Driver / OUT: Passenger
Hose Fittings: IN: 1.38" - OUT: 1.38"
Trans Cooler:φ22*300*M14*1.5
Mounting Type: BRACKET MOUNT
Vehicle Fitment:
FOR NISSAN Datsun 240Z 260Z Automatic or Manual Transmission
Why choose us? What are the advantages of our product?
1.Made from Aircraft AA5052grade aluminum for prolonged lifespanand with raw aluminum finish
2.Brazed core technology to guarantee optimum performance and dependability
3.All AA5052Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4.Billet Aluminum CNC machined fill neck rugged and durable
5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment
6.OEM style brass petcock drain much better than other plastic one on
7.Carefully crafted to exceptional OE standards for precise fit.
AA5052AluminumShroud and Fans:
The New Design fan and theAA5052fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052fanshroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice,considerfor every detail and needed.
FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 10.050”
Thickness (in): 2.500”
Number of Blades: 6 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
ThermostatKit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This AA5052 AluminumRadiatoris designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
