ITEM DETAILS DESCRIPTION

Application:
For Ford Galaxie/Galaxie 500 L6 V8 1960 1961 1962 1963
For Both Manual And Automatic Vehicle

Package included：

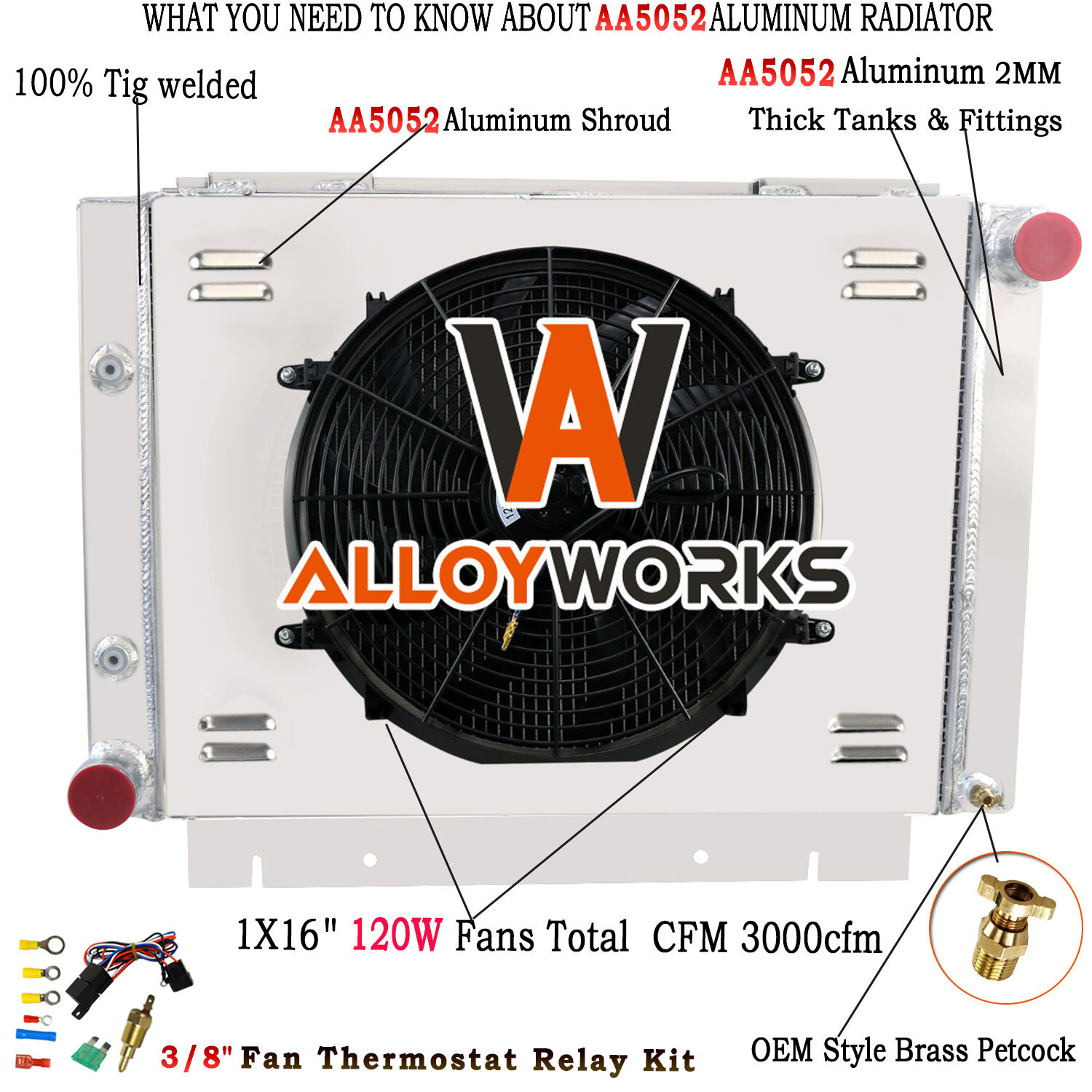

1 X 4-ROW AA5052 Aluminum Radiator
1 X 16\" 120W Fan
1 X Thermostat Temperature Switch Relay Kit

Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Material:AA5052All Aluminum
Core Dimensions: 17 1/8\" high x 22 1/2\" wide
Overall Dimensions: 20 7/8\" high x 26 3/4\" wide
Upper inlet: 1 3/4\" located on passenger side
Lower outlet: 1 3/4\" located on driver side
Trans Cooler Details: YES
Mounting Type: Bracket Mount
OEM Style Brass Petcock Drain
Please Check the Size Before You Buy!

Fan Specification:
Diameter : 16\'\' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185\'F turn-on temperature, 165\'F turn-off temperature.
3/8\" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Reasons for choose ourAA5052Aluminum Radiator：
1.Our Radiator is made ofAA5052aircraft aluminum,AA5052Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8\" apart,giving you 25% more rows within the core than other aluminum radiators sold on .
3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8\" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality FullAA5052Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
