Tech Data: 5x120 mm Hub Centric Adapter ? Spacer Bolt Pattern: 5x120 mm · Spacer Center Bore: 72.56 mm · Spacer Thickness: 30 mm · Spacer Outer Diameter: 150 mm ? full specs belowFitment:Bentley:
- Azure 06-10
- Brooklands 08-09
- Arnage 99-09
IMPORTANT FITMENT NOTICE: Fit & Care: ? Same Bolt Pattern - Not An Adapter ? Measure the original bolt shank first ? Extended bolt shank = OEM shank + spacer thickness within 3mm ? Spacer must sit flat; if paper slides in, st? \'s chart confirms thread pitch only ? unsure? Message us and we\'ll verify fitment before you buy. ESPLUS Company Logo ESPLUS precision wheel hardware ESPLUS
Precision wheel hardware Store Home Hot Products response Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current message supportApplication context stays together Lug Nuts Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts Lug Bolts Ball Seat Lug Bolts Cone Seat Lug Bolts Wheel Locks Locker Lug Nuts Locker Lug Bolts Wheel Spacers Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts Wheel Adapters 5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter Precision wheel hardware · Fitment-first specification Hub Centric Wheel Spacers With Ball Seat Extended Lug Bolts 17 mm socket drive; extended bolts included in the spacer kit

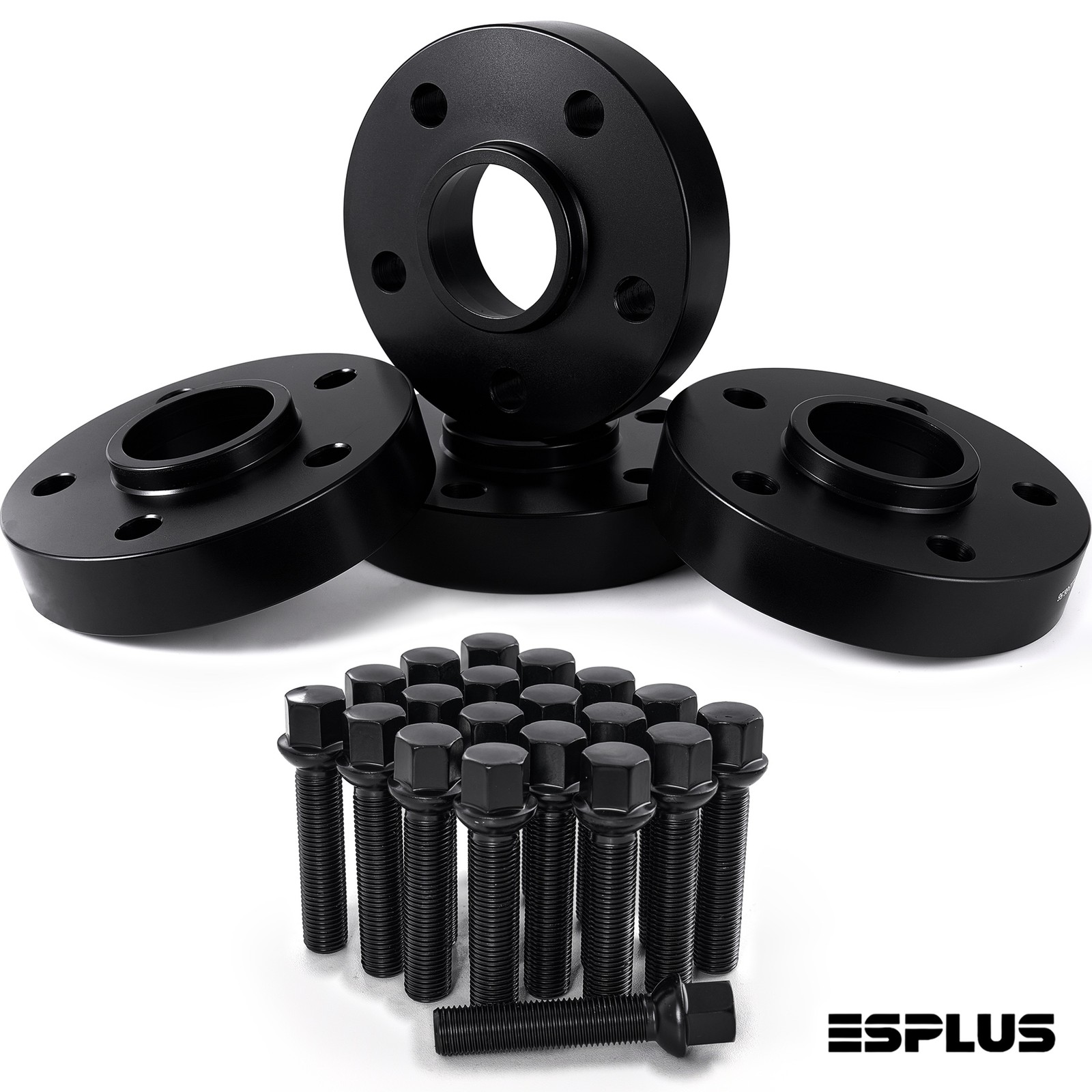

4x Wheel Spacers 5x120 30 Thick + Ball Seat Bolts for 28 Stock for 98-11 Bentley
A Wider Wheel StanceSame Bolt Pattern, No PCD ChangeFor Stock Ball Seat Wheels Fitment-first engineering 01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph. 02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering. 03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement. Bundle Contents Two parts. One kit.
Each order ships as a complete, ready-to-install set ? measured and matched.
A 5x120 mm Hub Centric Adapter Type · Hub Centric Spacer ×4 PCS/Set Spacer Bolt Pattern5x120 mmSpacer Center Bore72.56 mmSpacer Thickness30 mmSpacer Outer Diameter150 mmSpacer Lip Tallness7 mmColor and FinishBlackMax Hub Lip Allowed25 mmMaterial MadeT-6061 AluminumQuantity Per Order4 PcsCalifornia Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. + B Extended Lug Bolts Type · Ball Seat Extended Lug Bolt ×20 PCS/Set Thread PitchM14x1.5Lug Bolts Shank Length60 mmLug Bolts Flange23 mmLug Bolt SeatR14 Ball SeatColor and FinishBlackDrive17 mmTool Requirement17 mm SocketMaterial MadeSCM Carbon SteelQuantity Per Order20 PcsCalifornia Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Vehicle Compatibility Fits your car.
Verified, not guessed.
Hub centric wheel spacers with included ball seat extended lug bolts for stock ball seat wheels. Match the hub, wheel bolt pattern, locating bore and original shank length.
1Brands 3Vehicles 2Regions EU United Kingdom 1 Featured Bentley United Kingdom · 3 models Bolt Pattern (PCD) Conv. HubCentric Support Use Same Thread Fastener ModelRegionYear Range Arnage US 1999-2009 Azure US/MX 2006-2010 Brooklands 2008-2009
Not sure? Message us ? we verify your exact year & model before you buy.
Product Display A closer look at the main part.
Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.
Product Display A closer look at the included hardware.
Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.
Check Before You Order Some fitment details only your vehicle can tell you.
The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.
Check Before You Order The same applies to the included hardware.
These checks apply to the hardware included in this kit. They depend on what is currently fitted to your vehicle, not on the year, make and model above.
Why It\'s Built Different Performance you can torque down. Hub-Guided Wheel Alignment
The hub centric spacer uses its center bore and locating lip to position the wheel concentrically on the matching hub.
Matched Mounting Reach
The included extended bolts span the added spacer thickness to retain hub thread engagement when the shank matches the original length plus spacer thickness within 3mm.
Contact For Original Wheel Seats
The supplied ball seat bolts clamp through the matching curved seating faces of stock ball seat wheels.
Lightweight Spacing Structure
The spacer body provides a solid wheel-to-hub spacing surface in 6061-T6 Aluminum, adding separation with an aluminum structure.
Familiar Hand-Tool Access
The included lug bolts accept a 17 mm socket, giving wheel service a standard hex-drive connection.
How to Install 3 steps to torque.
Follow the sequence below ? fitment is everything, so read Step 1 carefully.
01 Measure Shank And Hub Lip
Measure the original bolt shank and hub lip. Confirm the supplied shank equals OEM shank plus spacer thickness within 3mm; hub lip clearance is thickness minus 7mm.
Match the ball seat and the listing dimensions to the original wheel and hub. 02 Seat The Spacer Flat
Clean the hub and spacer faces. Fit the spacer, verify flat contact and position the wheel on the locating lip.
If paper slides between hub and spacer, stop and clean the faces. 03 Install Included Bolts
Hand-start the included ball seat extended bolts. Use a 17 mm socket and torque wrench to tighten the wheel in a star pattern to the vehicle specification.
Stop if a bolt binds or bottoms out before clamping. 01 / 4 4 photos in this guide — tap the arrows or dots to see every step Important Fitment Notice Fit & Care:
- Same Bolt Pattern - Not An Adapter
- Measure the original bolt shank first
- Extended bolt shank = OEM shank + spacer thickness within 3mm
- Spacer must sit flat; if paper slides in, stop and clean
- Measure hub lip; clearance = thickness minus 7mm (20mm clears 13mm)
\'s compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through before ordering if anything is unclear.
Why ESPLUS Clarity before checkout.
Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.
Specification First
Thread, seat, dimensions, finish and quantity are organized for direct comparison.
Fitment in Two Layers
Vehicle compatibility and wheel-specific hardware checks are presented separately.
Component-Level Detail
Combination listings keep each component\'s quantity, gallery and technical data distinct.
Pre-Purchase Support
Message us through with your year, model, wheel and current hardware details.
Questions, answered Check the details that decide fit. Will this wheel hardware fit my exact vehicle?Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement. How do I confirm thread pitch and seat type?Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel. What should I verify on aftermarket wheels?Confirm the wheel\'s seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone. What torque specification should I use?Use the vehicle or wheel manufacturer\'s applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation. Where can I find current shipping and return terms?Use the Shipping, delivery and Returns sections of this listing as the current order-level terms. Those listing controls take priority over general informational text. Shipping · Returns · Fitment Order terms, kept current.
The controls attached to this listing are the source of truth for the transaction.
Shipping
Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the order when available.
Returns
The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the purchase record.
Fitment Responsibility
Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through before ordering.
