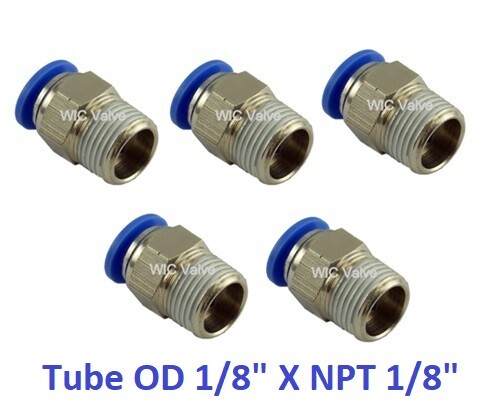

Pneumatic Male Straight Connector Tube OD 1/8" InchX NPT 1/8" Inch One Touch Push In To Connect Fitting (Five pneumatic male straight fitting has 1/8" inch Tube OD quick release button and 1/8" inch NPT male thread. The PMC series pneumatic male straight connector push in fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required. Our unique stainless collect design offers a secure connection that hold the tube firmly without restricting flow. The strong nickel-plated brass threaded bodies ensure anti-corrosion. Threaded fittings come with pre-coated Teflon sealant for quick installation with no additional sealing needed.
PMC Series Pneumatic Male Straight Air Push In Connector Specifications
Operating Pressure: 0 - 150 PSI / 0 - 990 kpa
Vacuum: 0 - 29.5 in Hg / 750 mm Hg
Operating Temperature: 0 - 60 °C / 32 to 140F
Application: Air
Recommended Tubing Material: Polyurethane, Nylon, Polyethylene, Polypropylene.
Material of Construction:
Plastic Body: PBT (Polybutylene terephthalate)
Metal Body: Nickel Plated Brass
Release Button: POM (Poly oxy methylene copolymer)
Grip Ring: Stainless Steel
Thread Sealant: Teflon
O-Ring: NBR (Buna-N)
Tubing Size Tolerance Requirements:
Polyurethane Tubing: specified fitting size ± 0.004” max. (± 0.1 mm max.)
Polyethylene Tubing: specified fitting size ± 0.006” max. (± 0.15 mm max.)
Polypropylene Tubing: specified fitting size ± 0.004” max. (± 0.1 mm max.)
Nylon Tubing: specified fitting size ± 0.004” max. (± 0.1 mm Information:
