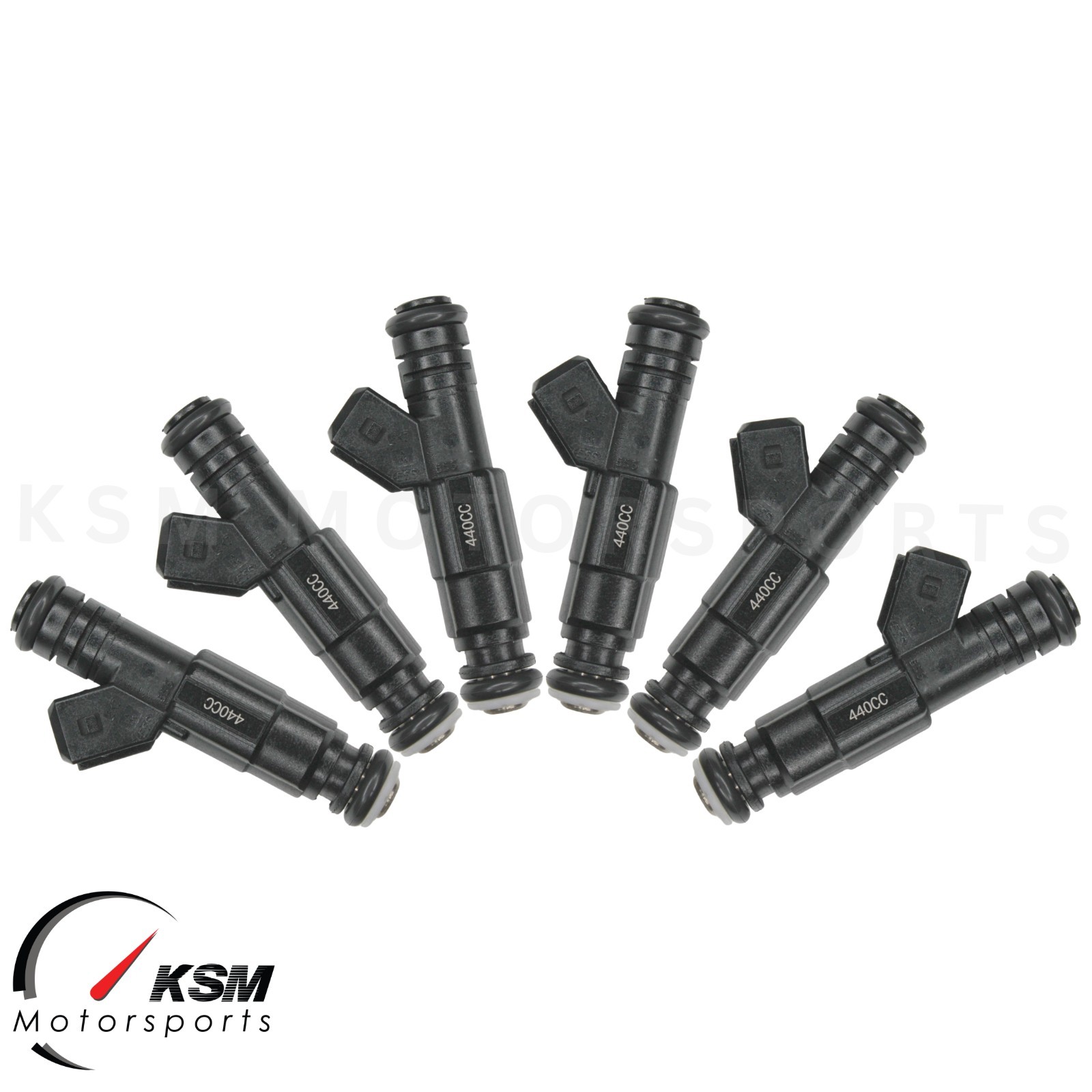

6 x EV6 Fuel Injectors 440cc 42lb for Ford Falcon BA BF XR6 turbo EB-EL FPV HSV
Details

• Quantity: 6 Fuel injectors
• Customized Flow Rate at 43.5 PSI / 3 bar:440 cc/min, 42 lb/hr
• Part 100% Brand New
• Leak, flow, pressure, OHM, spray tested using ASNU machines by KSM Motorsports
• Design: GEN III, EV6 Series Fuel Injector
• EV6 Long body type
• 12 hole nozzle
• Resistance: approx. 12.5 ohms / High Impedance
• Connector: EV1 / Jetronic
• O-Rings/Seals Included: Yes, preinstalled
• Injector Design: Metal & composite plastic
• Voltage: 8-15 Volts, nominal 13.5 Volts
• Amperage: 1.0 Amps
• Pressure: Min 30PSIG/ Max 100PSIG
• 1 year warranty
• E85 Compatible

Important Note:Because these are high-flow performance injectors, a custom ECU tune or "remap" is required for correct operation.
Dimensions/Mechanical data

• Overall Length: 74 mm
• O-ring to O-ring Length: 63 mm
• O-ring to O-ring (center-to-center): 60.65 mm
• Diameter: 16 mm
• O-ring Diameter: Top and bottom, 14.5 mm

Application
These injectors feature the Long Body and the EV1/Jetronic connector. They are a "Drop-In" performance upgrade for vehicles originally equipped with the older, bulky metal-body Bosch EV1 injectors.
They will fit many applications, including, but not limited to:

• Ford Falcon BA XR6 Turbo
• Ford Falcon BF XR6 Turbo
• Ford Falcon EB-EL MPFI
• Holden Commodore VN to VY Supercharged V6
• Any Ford models using Bosch EV1 or EV6 style injectors
• Any Ford with V6 Engine using Bosch EV1 or EV6 style injectors

---
