WE a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.
Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.
⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️12 VOLTS DC WITH ELECTRICAL HARNESS
UNIVERSAL A/C KIT FOR:CLASSIC CARS, HOT RODS, ANTIQUE CARS, TRUCKS, AND MORE.

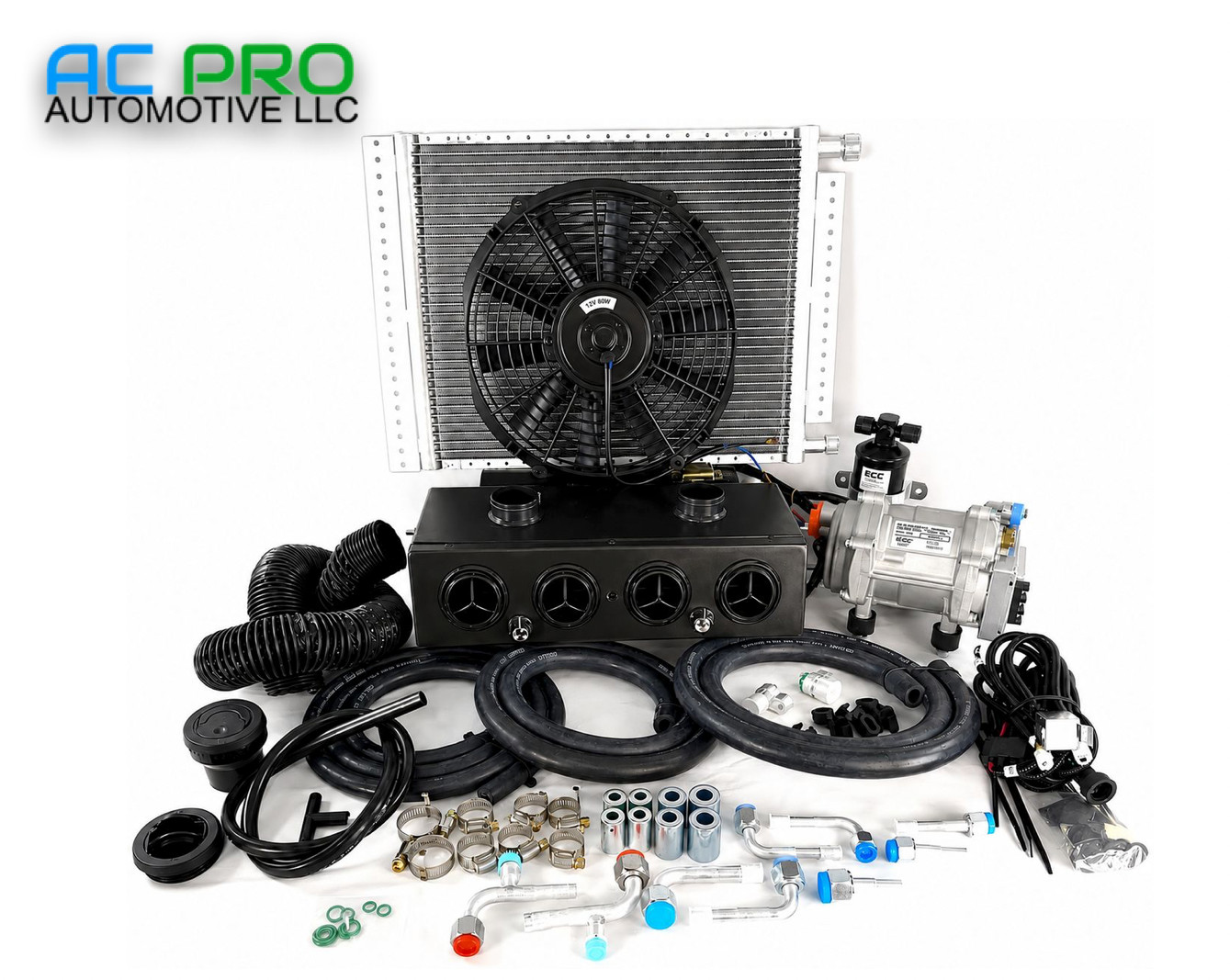

THE KIT INCLUDES:
A/C KIT UNIVERSAL UNDERDASH EVAPORATOR HEAT & COOL 404 CSL ELECTRICAL HARNESS
Universal Under-Dash Evaporator UnitModel: E-404-000 H/C. 4 BLACK VENTS + 2 AUXILIARY DEFROSTER VENTSHeat & Cool32 pass 4way all aluminum coilExpansion valve 1.5 TonThermostat and rotative 3-speed blower switch12 VOLTS DOUBLE SHAFT BLOWER MOTORMounting bracket drain hose and T included12,700 BTU capacity 359 CFMDIMENSIONS: L15¾" X D12" X H6"4 BLACK STARS LOUVERS5' FT FLEX DUCT 2"ID + 2 SHUT-OFF VENTSIdeal solution for vehicles that do not come equipped with a factory windshield defroster. This auxiliary system improves visibility by directing airflow to the windshield, helping to reduce fog and moisture. Please note that installation requires cutting openings in the dashboard to properly mount the vents. Once installed, the vents can be manually opened and closed, allowing you to control airflow as needed for maximum comfort and effectiveness.
Compressor
MODEL: CE20CC-12
Compressor⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️12 VOLTS DC WITH ELECTRICAL HARNESS
Model: CE20CC-12Compressor Model: CE20CC-12Compressor type Integrated electric scroll compressorSuitable refrigerant R134aCompressor displacement 20cc/rOil injection quantity RL68H(POE)/120ml(or according to customer requirements)Compressor driver IntegratedMotor type Permanent magnet DC speed regulating synchronous motorDrive control Equipped with special controllerInsulation class Grade FTotal mass(oil) 4.7kgCooling mode Suction refrigerant coolingSuction diameter/seal φ18.3/O ring radial sealExhaust port diameter/seal φ15.5/O ring radial sealSpeed range 1500 rpm~2300 rpmWithstand Seal pressure 3.5MPapressure test Breaking pressure 6.5 MPa(high pressure side)/2.5 MPa(low pressure side)Class of protection IP67 (compressor connectors and docking parts used together)
✅ Recommended Alternator 120 AMP IDLE SPEED ✅
Also available BELT DRIVE:Model: C5H142A12V SD508 5H14Sanden Style 8PK SERPENTINE Pulley12v coil
CONTACT US FOR SPECIAL ORDER
CondenserModel: CPF142018PARALLEL FLOW (micro-tube technology)14"H X 20"L .70"(18mm)W4 Rails Aluminum#8 O-ring IN#6 O-ring OUT
Hoses SetModel: H6516, H81332, H1012A/C HOSE
- #6 5/16 = 6' feet
- #8 13/32 = 4' feet
- #10 1/2 = 5' feet
(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)
Fitting SetModel: FTSET404
- 1-N° 10 90° O-ring Fitting w/R134a Serv Port
- 1- N° 8 90° O-ring Fitting w/R134a Serv Port
- 1- N° 10 Straight O-ring Fitting
- 1- N° 10 90° O-ring Fitting
- 2- N° 6 90° O-ring Fitting
- 1- N° 8 90° O-ring Fitting
- 2- N° 6 Straight O-ring Fitting
- Set include metal FERRULES and CLAMPS
If you decided use a/c clamps you don't need special crimper tool(YES... We include both systems)O-ring set is included
Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"HightSight Glass
#6 ⅜ X ⅜ O-ring connections both sides
(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
(NOTE: Aluminum or Black) if you have a preference let us know leaving a message
Condenser FanModel: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included
Electrical Harnessall ours kits come with“Plug and Play”Electrical harness to easily connect all the components designed for a regular size car or trucks applications.for special Lengths applications please contact us extra charges maybe apply
FAQ.... Please contact us we will be happy to help you make the best decisionSE HABLA ESPAÑOL Located in Florida USA. Nationwide shipping
FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.
Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days
NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separatelyWe can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
