We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.
Our company offerspremium universal A/C kitscompatible withclassic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.
For many applications could be IN-DASH please read carefully about dimensions, flex duct 2" In diameter

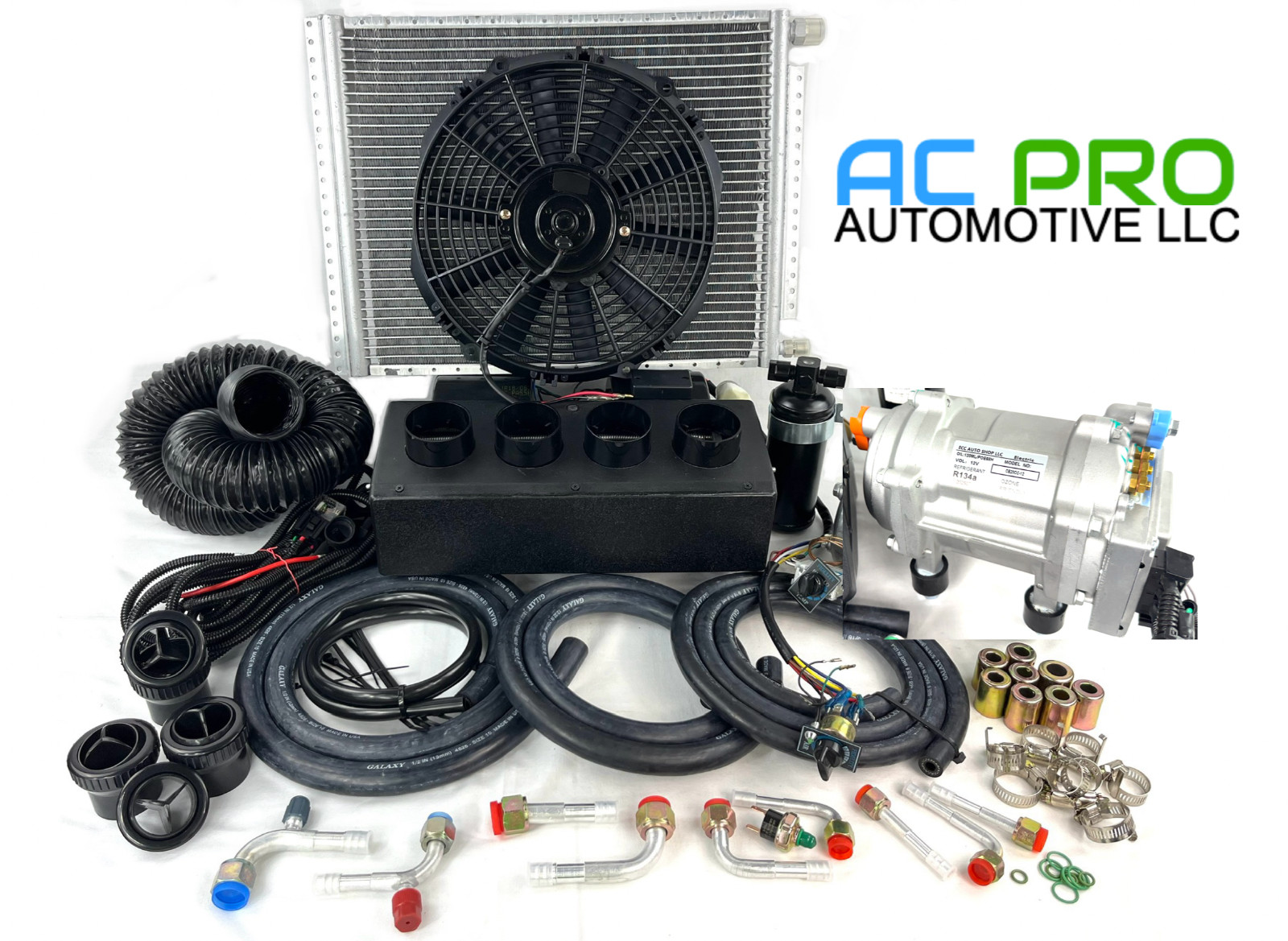

THE KIT INCLUDES:
A/C KIT UNIVERSAL UNDERDASH EVAPORATOR 404-000with 4 Vents and flex duct hose
Universal Under-Dash Evaporator UnitModel:E-404-000 H/C. (4 HOLES TOP OULETS 2½" )Heat & Cool32 pass 4way all aluminum coilExpansionvalve 1.5 TonThermostat and rotative 3-speed blower switch12 VOLTS DOUBLE SHALF BLOWER MOTORMounting bracket drain hose and T included12,700BTU capacity359 CFMDIMENSIONS:L15¾" X D11½" X H6"4 BLACK STARS LOUVERS10' FLEX DUCT 2½" DIAMETER
CompressorMODEL: CE20CC-12
Compressor⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️12 VOLTS DC WITH ELECTRICAL HARNESS
Model:CE20CC-12Compressor Model: CE20CC-12Compressor type Integrated electric scroll compressorSuitable refrigerant R134aCompressor displacement 20cc/rOil injection quantity RL68H(POE)/120ml(or according to customer requirements)Compressor driver IntegratedMotor type Permanent magnet DC speed regulating synchronous motorDrive control Equipped with special controllerInsulation class Grade FTotal mass(oil) 4.7kgCooling mode Suction refrigerant coolingSuction diameter/seal φ18.3/O ring radial sealExhaust port diameter/seal φ15.5/O ring radial sealSpeed range 1500 rpm~2300 rpmWithstand Seal pressure 3.5MPapressure test Breaking pressure 6.5 MPa(high pressure side)/2.5 MPa(low pressure side)Class of protection IP67 (compressor connectors and docking parts used together)
✅Recommended Alternator 120 AMP IDLE FLOW (micro-tubetechnology)14"H X 20"L .70"(20mm)W4 Rails Aluminum#8 O-ring IN#6 O-ring OUT
Hoses Set. LONG HOSE IDEAL FOR BIG SIZE CAR OR TRUCKModel: H6516,H81332,H1012A/C HOSE
- #6 5/16 = 6' feet
- #8 13/32 = 4' feet
- #10 1/2 = 5' feet
(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)
Fitting SetModel: FTSET404
- 1-N° 10 90° O-ring Fittingw/R134a Serv Port
- 1- N° 8 90° O-ring Fittingw/R134a Serv Port
- 1-N° 10 StraightO-ring Fitting
- 1-N° 1090°O-ring Fitting
- 2-N° 6 90°O-ring Fitting
- 1- N° 8 90°O-ring Fitting
- 2-N° 6StraightO-ring Fitting
- Set include metalFERRULES and CLAMPS
If you decided use a/c clamps you don't need special crimper tool(YES... We include both systems)O-ring set isincluded
Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"HightSight Glass
#6⅜X⅜O-ring connections both sides
(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
(NOTE: Aluminum or Black) if you have a preference let us know leaving amessage
Condenser FanModel: CF1214
14" Diameter
12 Volts80W6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included
Electrical Harnessall ours kits come with“Plug and Play”Electrical harnesstoeasily connect all the components designed for a regular size car or trucks applications.for specialLengths applications please contact usextra charges maybe apply
FAQ....Please contact uswe will be happy to help you make the best decision
SE HABLA ESPAÑOLLocated in Florida USA.Nationwide FREE shipping
FREE Shipping for continental U.S. only.International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professionalWe are not responsible for any damage caused to you or your vehicle.
Return policy, this item can be returned in its original condition and package for a full refund or replacement within 14 days
NOTE:Gas R134a, compressor mounting bracket, heater hoses and control valve is not included, wesold separatelyWe can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
