ALUMINUM SHROUD FAN RELAY FOR 1972~79 FORD LTD II THUNDERBIRD MONGETO 5.0L 5.8L For Sale - New and Used

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

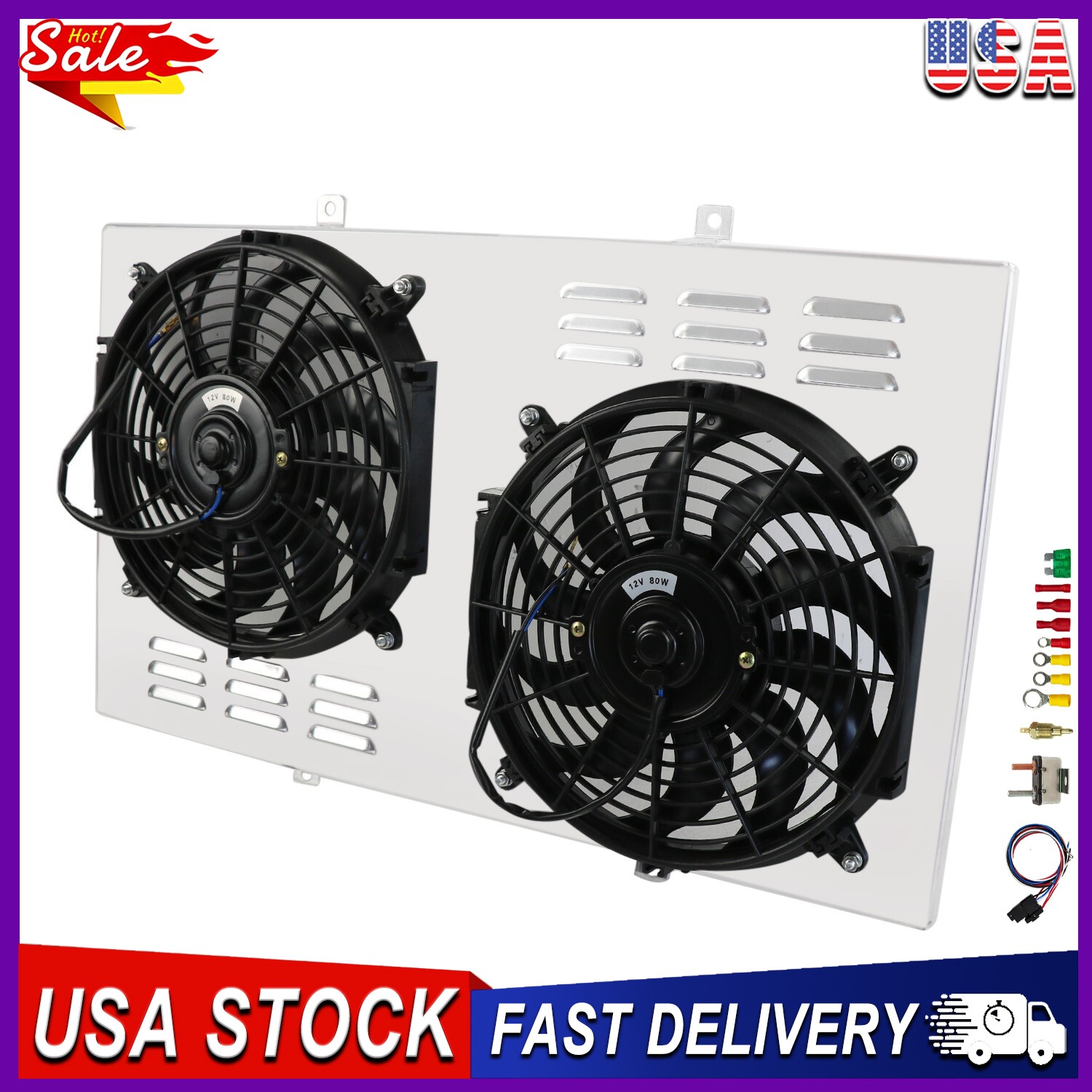

ALUMINUM SHROUD FAN RELAY FOR 1972~79 FORD LTD II THUNDERBIRD MONGETO 5.0L 5.8L:
$84.99

Join our Newsletter
Add As Favourite id=\"first\">Store Home
New Arrival
Ending Soon
Add to Favourites
View response
Contact us

Customer ServiceAny Question Contact us 100% Satisfaction30 Day Money Back Guarantee Fast DeliveryShipping Within 24 Hours Competitive PricesTop Brands at Low PricesALUMINUM SHROUD FAN RELAY FOR 1972~79 FORD LTD II THUNDERBIRD MONGETO 5.0L 5.8L Package Include:1 X Aluminum Shroud2 X 12\" 90W Fans (Includes mounting kits)1 X Thermostat Relay Kit

FANS:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Relay Kit Instructions：

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

The New Design fan and theAA5052fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered designAA5052fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, considerfor every detail and needed

A car engine produces heat that reaches 280F in only a few minutes. This is why a cooling system is included to maintain the engine\'s temperature at a tolerable level. The radiator, fan, and fan shroud are parts of that system, and the focus of this segment is on the fan shroud. It may look like a part your car can live without, but it actually provides an irreplaceable function. Read on to find why, and discover more information. What\'s a fan shroud and how does it work? Basically, a fan shroud surrounds the fan, that\'s it; but there\'s an even deeper explanation. Since the fan assists the radiator in cooling the engine, the radiator needs all the air it can get. The fan shroud is designed to gather the moving air from the fan to the radiator. If there\'s no fan shroud, the air from the fan will scatter, and the radiator will not cool the engine effectively. Are fan shrouds the same for all types of cars? Fan shrouds are mostly different for every car type. Although the difference can be minimal, you should remember that it has to equate the size of the fan, and the need of the engine. The material used also varies; it can be plastic, aluminum or steel. Another factor you should consider is the single or dual fan types. To make it easier, check your current fan shroud and see whether it has only one fan or two.
The arrangement of the cooling system in your engine begins with the radiator; next is the fan and then the fan shroud. Since this guide is for the fan shroud replacement, you will first discover how to remove the radiator and then the easier portion which is the fan shroud. This step-by-step guide will show you how.
Safety Advice: Before you begin, wear a safety eyewear first. Use gloves to avoid grease all over your hands and wear appropriate working clothes.
Step 1: Lift the front portion of the car using the floor jack.
Step 2: Secure the desired height by placing the jack stands underneath the car\'s solid frames.
Step 3: Place the oil pan underneath the radiator drain hose, and pull the hose off. Make sure it the pan catches all the coolant.
Step 4: Remove the radiator hose located on top using the screwdriver or the socket wrench.
Step 5: Disconnect the electric connection of the radiator fan, and remove the bolts that hold the fan. If the fan is connected to the radiator, you have to pull-out the radiator first.
Step 6: Remove the bolts that hold the radiator on the top and lower portions, and pull the radiator out. You will also be able to pull-out the fan as well.
Step 7: Locate the bolts on top that hold the fan shroud on top and use the socket wrench to remove it. Likewise, find the retaining clips at the bottom, snap it loose, and remove the fan shroud.
Step 8: Attach the new fan shroud.
Step 9: Return all the parts by doing the entire procedure starting from the previous step. Remember to refill the car\'s coolant before you switch the engine on.
The fan shroud replacement itself takes only 10-15 minutes, but since you have to deal with the radiator and the fan, the entire process is around 1-2 hours to complete. SHIPPING PAYMENT RETURNS response ABOUT US SHIPPING
