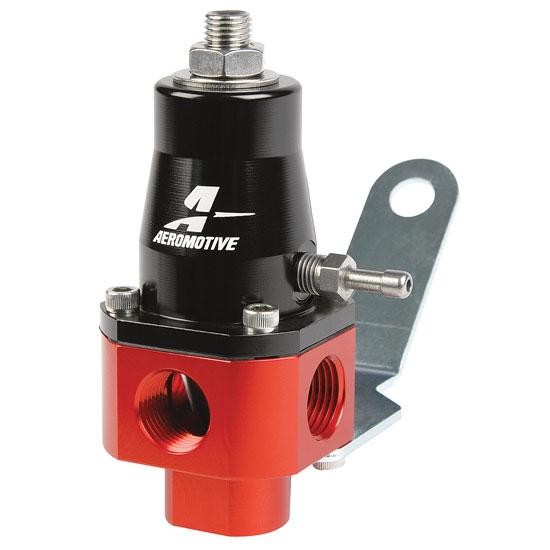

Can regulate any fuel pump between 100 and 250 GPH, The fuel pressure rises on a 1:1 ratio when referencing boost, A unique bypass design provides the ultimate, dynamic fuel pressure control, All ports are 3/8” NPT, with one inlet and three outlets on the main body and one return port on the bottom, It is adjustable from 3 to 20 PSI with standard spring(installed), or from 20 to 60 PSI with high pressure spring (included) Aeromotive 13301 Bypass Fuel Pressure Regulator, 3-60 PSI Sku # 91012804 Mfr. Part # 13301 Condition New Brand Aeromotive Sold Each Details
A dual purpose, universal fuel pressure regulator for EFI or carbureted applications.Base fuel pressure is adjustable from 3 to 20 PSI with standard spring(installed), or from 20 to 60 PSI with high pressure spring (included). Also acts as a rising rate fuel pressue regulator whichraises pressure on a 1:1 ratio with boost.All ports are 3/8" NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass fuel pressure regualtor design provides the ultimate, dynamic fuel pressure control.
- Gasoline compatible only
- Can regulate any fuel pump between 100 and 250 GPH
- Fuel pressure rises on a 1:1 ratio when referencing boost
- All ports are 3/8” NPT, with one inlet and three outlets on the main body and one return port on the bottom
- Bypass design provides the ultimate, dynamic fuel pressure control
Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.
Specs Fuel Pressure Rating (psi) 3-60 Pressure Regulator Inlet Size 3/8” NPT Pressure Regulator Outlet Size 3/8” NPT MFG. Part # 13301 Fuel Type Gasoline Regulator Style Return Sold in Quantity Each Notes Adjustable from 3 to 20 PSI or from 20-65 PSI with high pressure spring (included). Max pump flow is 250 GPH. Overall Height 3.88" GTIN Code 684980000214 Material Type Aluminum Reviews Will absolutely buy again Rated by Insidecrate69 on July 18, 2024
Summary: Good quality bypass regulator, worked great on my 604
Yes, I recommend this product.
Great pressure regulator worked great Rated by KM on September 23, 2020
Summary: Good part
Yes, I recommend this product.
Automotive Regulator Rated by Kdunk on September 11, 2018
Summary: Purchased this to replace the previous one that left on a sold car. Works great as advertised and the sales staff us first class.
Yes, I recommend this product.
Nice stuff comes from Aeromotive! Rated by HAMMER on December 05, 2017
Summary: best part is its universal and can be used on a cabs set up or E.F.I
Yes, I recommend this product.
Fuel regulator Rated by Kellogg on July 30, 2017
Summary: Arrived on time. Working as needed
Yes, I recommend this product.
