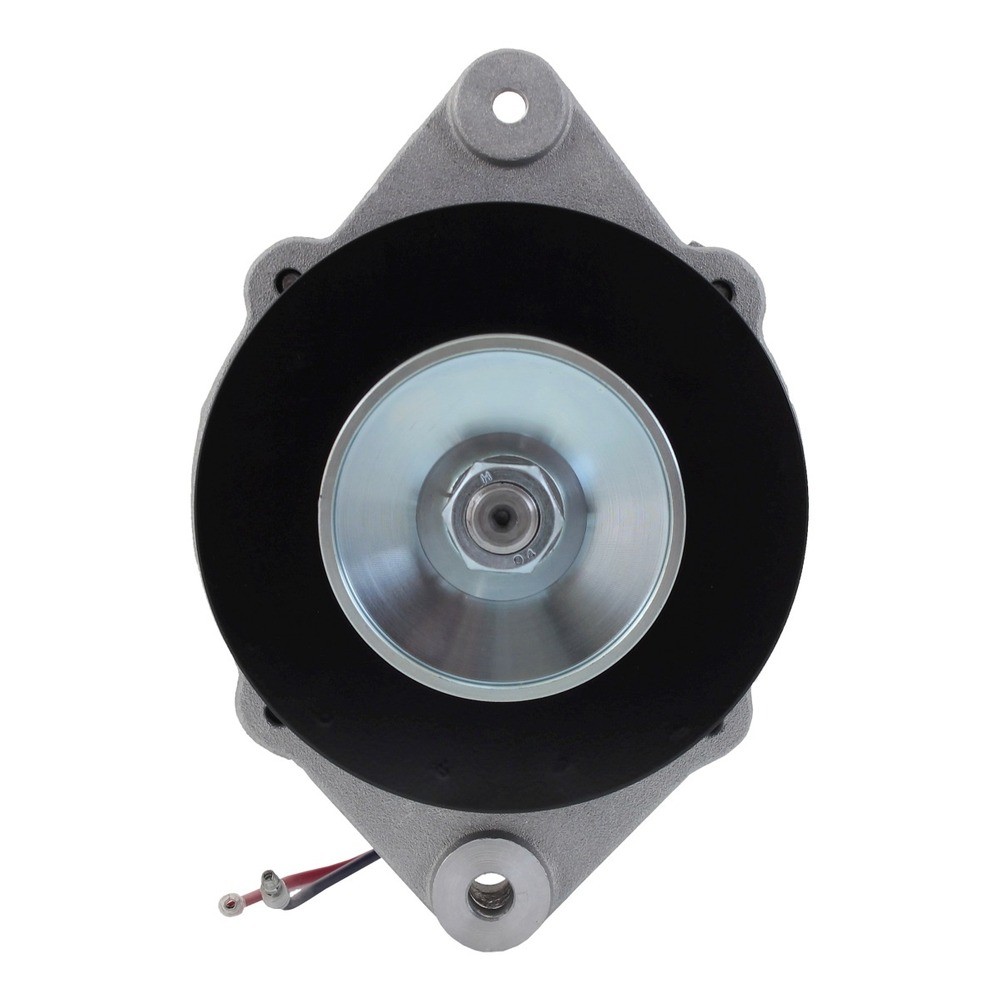

Alternator 12V 100A Fits MerCruiser 230 260 MIE 7.4L 8.2L MIE Inboard New
Replaces Part Numbers & Specifications
MERCURY MARINE PART NUMBERS:
• 817119, 817119-1, 817119-2
• 817119A1, 817119A4
• 12449, 12449A1
• 19685
• 98555, 98555A1
• 92497, 92497A3 MANDO PART NUMBERS:
• AC155603, AC155604, AC155614
• AR150, AR150AA, AR150AR, AR150BA
• A000B0331
• M56750 MOTOROLA PART NUMBERS:
• 10-358, 10-374
• 8EM2007K, 8EM2007KA
• 8EM2010K, 8EM2010KA PRESTOLITE PART NUMBERS:
• 110-358, 110-374, 110-517
• 20130179, 20130204 OMC PART NUMBERS:
• 3854182, 3853853, 3854809, 3860769
• 987774, 985465, 983424, 985466
• 984565, 986008, 988247 VOLVO PENTA PART NUMBERS:
• 3854809-5
• 3854182-7
• 3853853-4
• 3850927-9 CRUSADER PART NUMBERS:
• 39200, 39049, 39064 QUICKSILVER PART NUMBERS:
• 8M6007464, 8M6007471 YAMAHA PART NUMBERS:
• 19-1400-10, 10140010 OTHER OEM PART NUMBERS:
• Marine Power 1210-000
• Pleasurecraft RA097006
• Indmar 755024
• Westerbeke 42847
• Aqua Power 1926 MARINE REPLACEMENT NUMBERS:
• ARCO Marine 60050
• Sierra Marine 18-5966, 18-5966-1, 18-5965
• API Marine 20054
• Mallory 9-19101 SPECIFICATIONS:
• Type: Mando marine alternator, single groove V belt
• Voltage: 12 Volt
• Amperage Rating: 100 Amp high output
• Original Rating Replaced: 55 Amp and 65 Amp
• Rotation: Bi-directional
• Regulator: Internal, 9:00 clock position
• Fan: External
• Pulley: Single groove V belt
• Mounting Foot: 2 inch
• Mounting: one 5/16-18 threaded, one 3/8 in unthreaded
• B+ Terminal: 1/4-20 threaded
• Polarity: Negative ground
• Certification: SAE J1171 marine ignition protected
• Weight: about 11.26 lb / 5.12 kg
• Condition: New Aftermarket
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new. ApplicationsShippingPaymentsPolicies
⚠️ SINGLE V BELT ENGINES ONLY:
• This alternator carries a single groove V belt pulley
• Late GM engines moved to a 6 groove serpentine belt
• Some 1996 and 1997 engines left the factory with either belt
• Look at the belt, one V groove means this is the right unit
• Six flat ribs means you need the serpentine build instead MERCRUISER HIGH PERFORMANCE:
• 1987-1989 MerCruiser 420, GM 7.4L 454 cid V8
• 1990-1992 MerCruiser 425, GM 7.4L 454 cid V8
• 1992-1993 MerCruiser 425 Gen V, GM 7.4L 454 cid V8
• 1990-1992 MerCruiser 465, GM 8.2L 502 cid V8
• 1992-1994 MerCruiser 465 Gen V, GM 8.2L 502 cid V8
• 1991-1992 MerCruiser 525SC, GM 7.4L 454 cid V8
• 1992-1995 MerCruiser 525SC Gen V, GM 7.4L 454 cid V8
• 1997-up MerCruiser 525SC Gen VI, GM 7.4L 454 cid V8 MERCRUISER INBOARD MIE:
• 1981-1995 MerCruiser 230 MIE, GM 5.0L 305 cid V8
• 1981-1987 MerCruiser 260 MIE, GM 5.7L 350 cid V8
• 1981-1987 MerCruiser 340 MIE w/Borg Warner, GM 7.4L 454 cid
• 1987-1995 MerCruiser 5.0L 4-BBL MIE, GM 5.0L 305 cid V8
• 1988-1995 MerCruiser 5.7L MIE, GM 5.7L 350 cid V8
• 1989-1992 MerCruiser 7.4L MIE LH w/Hurth, GM 454 cid V8
• 1992-1996 MerCruiser 7.4L MIE LH Gen V, GM 454 cid V8
• 1996-1997 MerCruiser 7.4L MIE LH Gen VI, GM 454 cid V8
• 1990-1992 MerCruiser 8.2L MIE w/Hurth, GM 502 cid V8
• 1993-1996 MerCruiser 8.2L MIE Gen V, GM 502 cid V8 MERCRUISER STERN DRIVE, GM 4 CYLINDER:
• 1983-1989 MerCruiser 120, GM 2.5L 153 cid
• 1983-1986 MerCruiser 140, GM 3.0L 181 cid
• 1987-1989 MerCruiser 2.5L, GM 2.5L 153 cid
• 1987-1998 MerCruiser 3.0 and 3.0LX, GM 3.0L 181 cid MERCRUISER STERN DRIVE, GM V6:
• 1987-1992 MerCruiser 175, GM 4.3L 262 cid V6
• 1983-1984 MerCruiser 185, GM 3.8L 229 cid V6
• 1985-1987 MerCruiser 185, GM 4.3L 262 cid V6
• 1985-1991 MerCruiser 205, GM 4.3L 262 cid V6
• 1988-1992 MerCruiser 4.3L 2-BBL and 4.3LX 4-BBL, 262 cid
• 1992-1996 MerCruiser 4.3L Gen II and 4.3LX Gen II, 262 cid MERCRUISER STERN DRIVE, GM V8:
• 1985-1987 MerCruiser 200 and 230, GM 5.0L 305 cid V8
• 1982-1984 MerCruiser 228, GM 5.0L 305 cid V8
• 1982-1987 MerCruiser 260, GM 5.7L 350 cid V8
• 1985-1986 MerCruiser 300 Tempest, GM 5.7L 350 cid V8
• 1987-1990 MerCruiser 320 EFI, GM 5.7L 350 cid V8
• 1982-1987 MerCruiser 330, GM 7.4L 454 cid V8
• 1983-1987 MerCruiser 370 TRS, GM 7.4L 454 cid V8
• 1986-1995 MerCruiser 350 Mag Alpha, GM 5.7L 350 cid V8
• 1996-1997 MerCruiser 350 Mag Alpha 4-BBL, GM 5.7L 350 cid
• 1988-1995 MerCruiser 5.0LX and 5.7L Bravo, 305 and 350 cid
• 1986-1988 MerCruiser 454 Mag Alpha, GM 7.4L 454 cid V8
• 1988-1992 MerCruiser 454 Mag Bravo, GM 7.4L 454 cid V8
• 1992-1997 MerCruiser 454 Mag Bravo Gen V and Gen VI, 454 cid
• 1988-1996 MerCruiser 7.4L Bravo and 7.4L Bravo Gen V
• 1990-1993 MerCruiser 502 Mag Bravo and Gen V, GM 8.2L 502 cid MERCRUISER SKI:
• 1985-1987 MerCruiser 5.7L Ski, GM 5.7L 350 cid V8
• 1987-1995 MerCruiser 5.7L Competition Ski, GM 5.7L 350 cid V8
• 1991-1997 MerCruiser 350 Mag Ski, GM 5.7L 350 cid V8 OMC INBOARD AND V DRIVE, 1987-1996:
• OMC 2.3L Ford I4 1987-1990, 3.2L GM I4 1992-1993
• OMC 3.0L GM 1987-1996, 4.3L GM V6 1987-1996
• OMC 5.0L GM V8 1987-1988, 5.0L Ford V8 1990-1992
• OMC 5.7L GM V8 1987-1996, 7.4L GM V8 1988-1996
• OMC 5.8L Ford V8 1989-1996 except EFI, 7.5L Ford V8 1987-1990
• OMC 8.2L GM V8 1988-1992, OMC Cobra inboard 1987-1993 VOLVO PENTA, 1993-1999:
• Volvo Penta 3.0GL and 3.0GS, GM 3.0L 4 cylinder
• Volvo Penta 4.3GL, 4.3GS and 4.3Gi, GM 4.3L V6
• Volvo Penta 5.0FL and 5.0Fi, Ford 5.0L V8
• Volvo Penta 5.7GL, 5.7GS, 5.7GSi and 5.7Gi, GM 5.7L V8
• Volvo Penta 5.8L FL, Ford 5.8L V8, 1993-1996
• Volvo Penta 7.4GL and 8.2GL, GM V8, 1994-1999 CRUSADER, PLEASURECRAFT, INDMAR AND MORE:
• Crusader 5.0 and 5.7 GM V8 inboard
• Pleasurecraft GM and Ford inboard, Mando equipped
• Indmar GM inboard, Mando equipped
• Marine Power GM inboard
• Chrysler Marine inboard and stern drive, tach hookup HOW TO VERIFY FIT:
• Look at the pulley, this unit has one V groove
• Confirm a 2 inch mounting foot with one 5/16-18 threaded hole
• Confirm the second hole is 3/8 in and unthreaded
• Confirm the regulator is internal at 9:00 and the fan external
• Output is 100 amps, the original was 55 or 65 amps
