Description

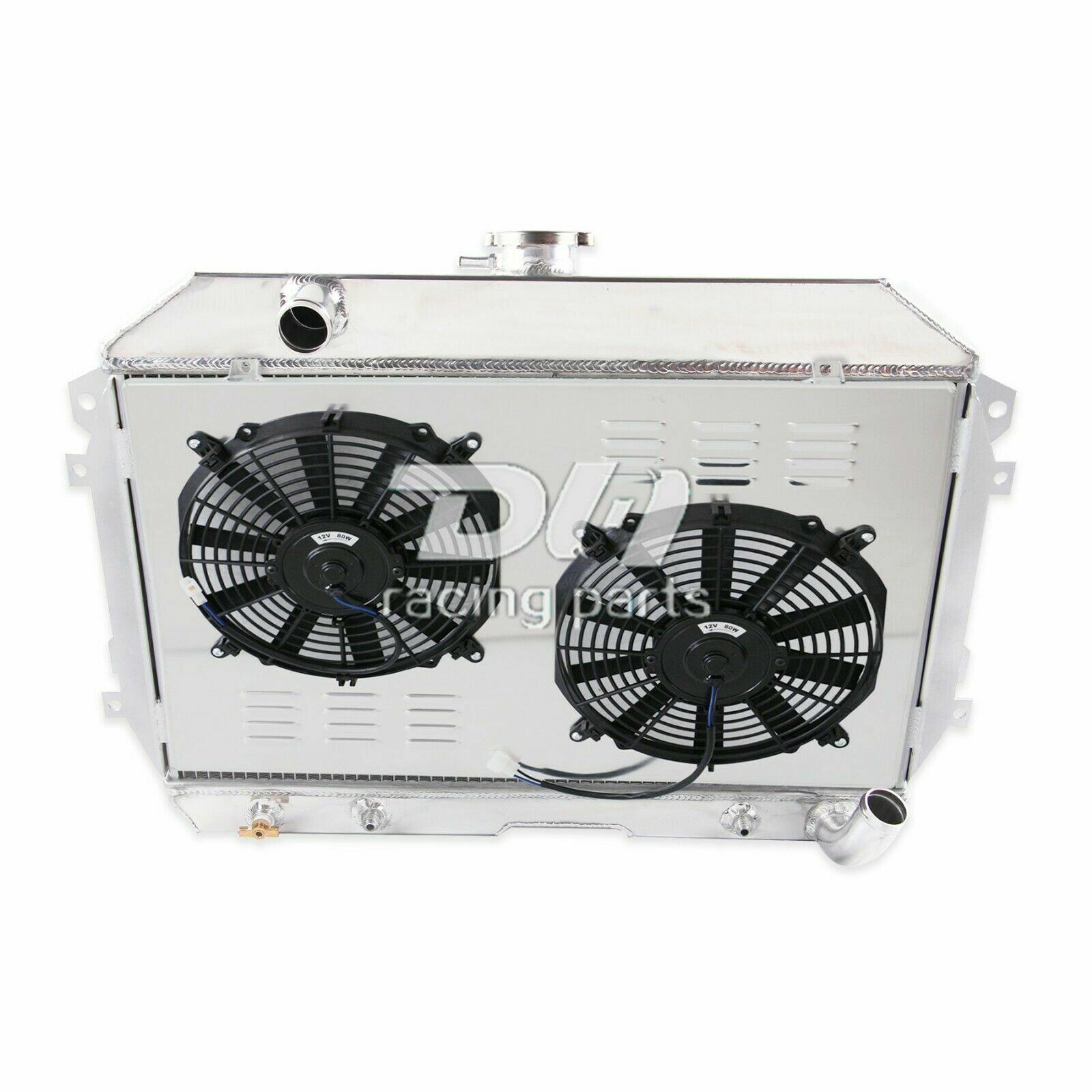

1 X 4-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
2 X 9\" Electric FanRadiator Size:
Core Size: 13 3/4\'\' H x 23.15\" W
Overall Size: 19 3/4\" H x 27 1/4\" W
Upper Inlet: 1-3/8\" located on the Driver side
Lower Outlet 1-3/8\" located on the Passenger side
Transmission Oil Cooler: Included
Transmission Oil Cooler Fitting Type: φ22*300*M14*1.5
New radiator cap include
Mounting Type: BRACKET MOUNT
4 Rows Of Tubes
DPI#: 110Fans Details：
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 9.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps(Install Note :please remove the EPE between the radiator and Shroud)Application :
1970-1973 Datsun 240Z/Nissan Fairlady Z(S30) : L24 2.4L engine
1974-1975 Datsun 260Z/Nissan Fairlady Z(S30) : L26 2.6L engine
The radiator cap that has not passed the test can’t release the pressure when it reaches the pressure value. The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure. The radiator fan does not turn, resulting in high temperature in the water tank. Drain the air from the cooling system. Refer to the user manual or repair manual. Please refer to owner\'s manual to add coolant. Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns. Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood. Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries. Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure. Included in this package same as the picture Shipping & Payment Payment - Supports a variety of payment methods, such as PayPal, credit cards (Visa, MasterCard, etc.), debit cards, bank transfers, mobile payment methods like Apple Pay and Google Pay, as well as local payment options for users in specific countries and regions. Shipping - There is a big difference between US Shipping and shipment made from foreign countries - Our orders are shipped daily from GA / NJ / CA USA warehouse - You can be confident that you will get your item promptly if you place an order with us - Free Tracking number is provided so you can check for yourself where your item is - Many years of experience to provide the fastest deliver solution for our valued customers - Please place an order with us. You will be pleasantly surprised by our service Shipping - Delivery area: We are only shipping within 48 continental United States. - Delivery method: FedEx -Ground UPS-Ground USPS. Choose Priority for fast delivery. - Handling time: 1 business day after receiving payment. If USPS is open, we are open too. - All our items are shipped with the tracking number. - Buyers are responsible to provide us with the correct address. Please confirm your address. Handling And Return - We accept return within 30 days after delivery. - Defective items will be exchanged or fully refunded on buyers request. - All items need to be returned in original package with all the supplies. - Our goal is 100% customer satisfaction. - Got a problem? No Problem. Contact us by message system. - We will reply promptly during business hours. Customer Support - Please do not open a case or leave us a bad response. This can only delay our service. - Mon~Fri: 9AM to 5PM | Sa:t 9AM to 12PM | Sun: Closed (Eastern Standard Time) - If you are happy with your purchase, please leave us a 5 star response. Thank you.
