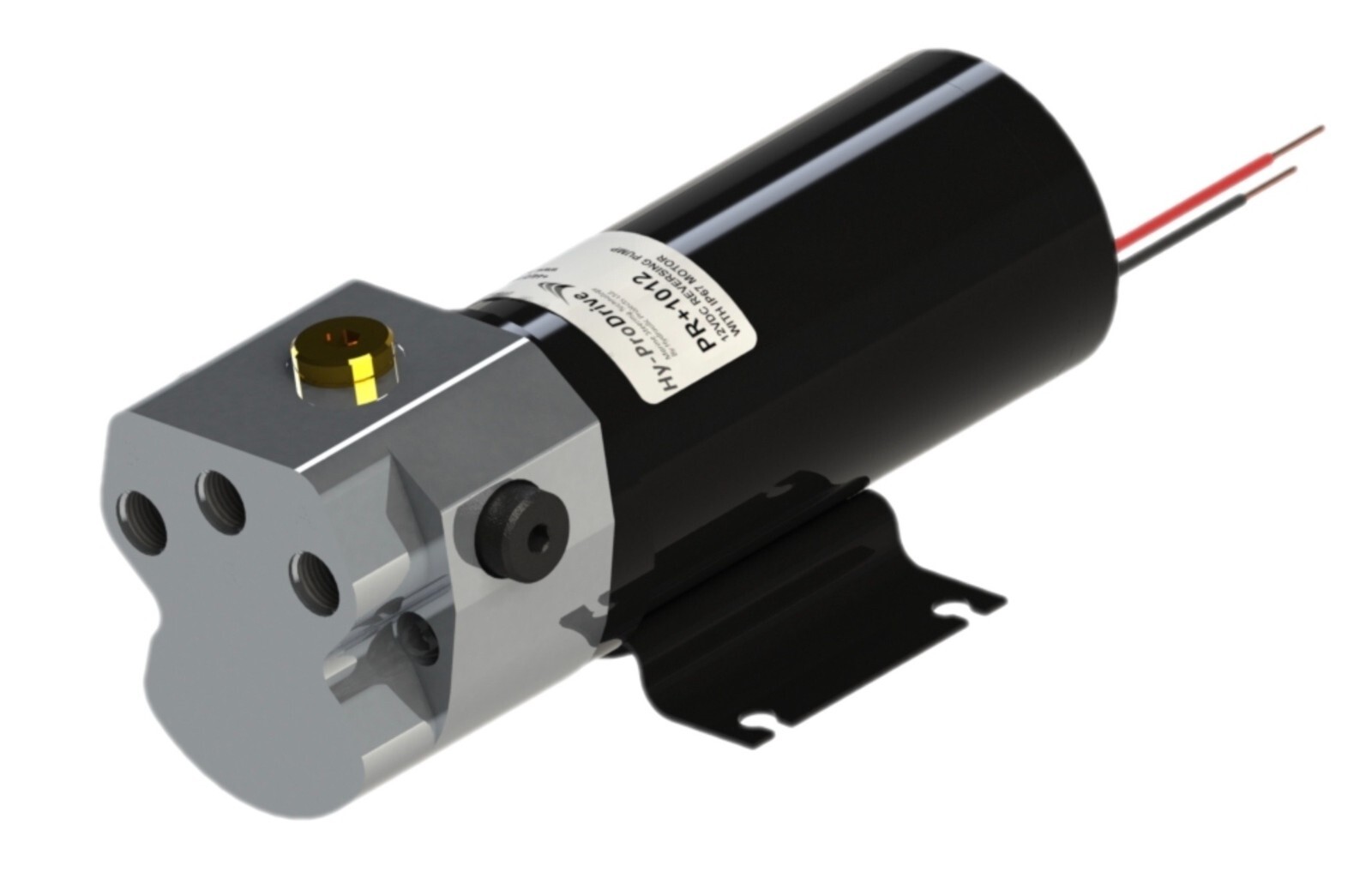

Autopilot Reversing DC Hydraulic Pump - NEW
MODEL: 12V, 0.6L,50-150 cm3
Suitable for several different brands such as Raymarine, Autohelm, Simrad, Garmin, B&G, Navico, Lowrance, COMNAV, Raytheon, Silva Marine, Robertson, Furuno, Nautech, Northstar, TMQ, etc.
Description:
A permanent magnet DC motor-driven precision gear pump is available with a range of flows from 0.6 to 2.5 L/min. Each pump is fitted with zero-leakage pilot check valves for positive locking of steering cylinders. The two service ports and reservoir port are positioned at the front of the pump. The threads are G1/4 (BSP) parallel. There is an optional second reservoir port on the top face accessed via a removable plug. If top-mounted ports are preferred a kit is available to provide this option. Relief valves to limit the maximum pressure generated are available as a further option. The motors are maintenance-free with internal brushes giving typically a 4000+ hour life. The front and rear bearings are sealed ball races for smooth and quiet operation. They have an Ingress Protection rating of IP67. They have a nominal output of 100W with a 50W option on the 12V PR+10 pumps. The pumps are sealed on the driven gear journal allowing the motor to be removed without air entering or oil loss from the hydraulic circuit.
Application:
Designed specifically for the marine autopilot market they are used by the world's leading autopilot manufacturers. They can be used with balanced or unbalanced cylinders and are suitable for use in pressurized reservoir systems.
Features:
Quiet and smooth operation
Low power consumption.
Zero back drive check valves.
6 flow options
100W motors
50W motor on PR+08
12 and 24V DC motor options.
Relief Valve option.
Port position options.
Compact.
Easy installation.
G1/4 (BSP) parallel ports
NPTF and M10 adapter kits are available
Service kits are available.
Cylinders and hose kits supplied to suit.
Fully compliant with the Recreational Craft Directive
Supplied with EU Declaration of Conformity
24 months of warranty
Similar to SIMRAD RPU80 model.
