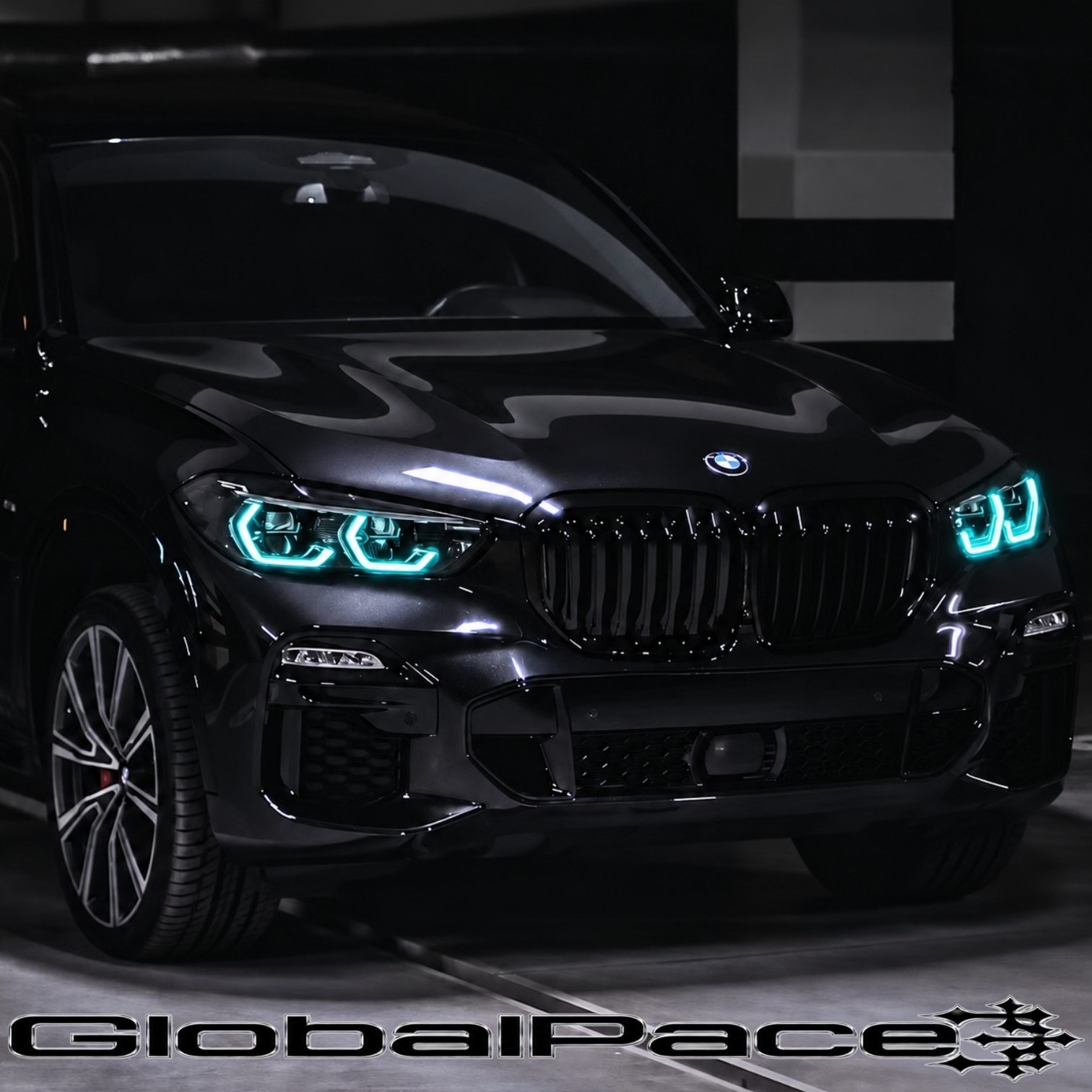

BMW X5 · X5 M · X6 · X6 M — G05 G06 F95 F96 RGB DRL Module — App & Remote Controlled · Full Color Spectrum · Fading · Flashing · Strobe · E-Mark · RoHS Certified · 1-Year Warranty
Full RGB color control for your factory Laserlight headlights without replacing the housings. This module replaces the LED board inside your existing DRL assembly and puts every color in the visible spectrum under your control.
Full RGB spectrum — white, yellow, amber, red, blue, green, purple, teal, and every gradient between them.
Two ways to control it — the Happy Lighting app over Bluetooth, or the included remote. Use whichever is easier in the moment.
Fading, flashing, and strobe modes — a full suite of dynamic lighting patterns, all adjustable.
Set it and forget it — the color holds until you change it. Nothing depends on your phone while driving.
FITMENT — US LASERLIGHT PRE-LCI ONLY
This module fits US-spec Laserlight headlights on pre-LCI builds only. It does not fit standard LED headlights, and it does not fit European-spec headlights.
Not sure which you have? Message us with your VIN before ordering and we’ll confirm your configuration. No guesswork. No returns.
YearMakeModelBody StyleChassis2019–2023BMWX5 sDrive40i / xDrive40iSUVG052019–2020BMWX5 xDrive50iSUVG052020–2023BMWX5 M50iSUVG052021–2023BMWX5 xDrive45eSUVG052020–2023BMWX5 M / M CompetitionSUVF952020–2023BMWX6 sDrive40i / xDrive40iSUVG062020–2023BMWX6 M50iSUVG062020–2023BMWX6 M / M CompetitionSUVF96
Does NOT fit: standard LED equipped builds · European-spec headlights · LCI builds 2024+ · F15 F16 previous generation X5 X6 · E70 E71 X5 X6
OEM PART NUMBERS
DRL LED Unit
▸ 63119477986
▸ Supersedes — 63119466173
Fits Laserlight assemblies
Left / Driver Side
▸ 63115A279A5 · Shadowline variant 63115A279A9
▸ Interchange — 63119481793 · 63117440877 · 63119481789
Right / Passenger Side
▸ 63115A279A6 · Shadowline variant 63115A279AA
▸ Interchange — 63119481794 · 63117440878 · 63119481790
Check the sticker on your headlight housing to match your exact hardware revision, or send us your VIN and we’ll verify before you order.
INSTALLATION — PROFESSIONAL INSTALLATION RECOMMENDED
This is a retrofit module that installs inside your existing headlight assembly. It requires removing the factory DRL module and replacing the internal LED board. The DRL boards sit directly on the cooling sinks of the Laserlight housing. Professional installation by a qualified automotive electrician is strongly recommended.
01 — In your iDrive settings, turn off the daytime running light option. Open the hood.
02 — Remove the factory daytime running light module from the headlight assembly.
03 — Remove the original LED light board from the module.
04 — Apply the included dielectric grease to the back of the RGB light board and mount it to the heat sink.
05 — Lift the waterproof gasket on the factory module, route the RGB ribbon cable underneath it, and reseat the module. Do not overtighten the screws — excess pressure on the ribbon cable causes color desynchronization or complete failure of the module.
06 — Connect the RGB connectors on both sides.
07 — Download the Happy Lighting app or use the included remote, and confirm color control is working on both sides before closing everything up.
WHAT’S IN THE BOX
▸ Left and right RGB DRL modules
▸ Remote control
▸ Dielectric grease
▸ Connection hardware
FEATURES
▸ Full RGB spectrum — every color, controlled by app or remote
▸ Happy Lighting app control — free on iOS and Android, Bluetooth connected
▸ Remote included — control color without reaching for your phone
▸ Fading · Flashing · Strobe modes — full suite of dynamic patterns
▸ US Laserlight pre-LCI fitment — X5, X5 M, X6 and X6 M, 2019–2023
▸ E-Mark · RoHS Certified
▸ 1-Year manufacturer warranty — backed by GlobalPace
▸ Dielectric grease included
▸ Ships from our US warehouse — 2–5 day delivery
SHIPPING & WARRANTY
Ships within 1–3 business days while stock lasts. Backed by GlobalPace’s 1-year manufacturer warranty. Message us through before initiating any return. Warranty claims are reviewed by our manufacturer and typically take 5–10 business days to process once documentation is submitted.
Message us with your VIN before ordering and we’ll confirm whether your build has US-spec Laserlight headlights. No guesswork. No returns.
