Packing Including:

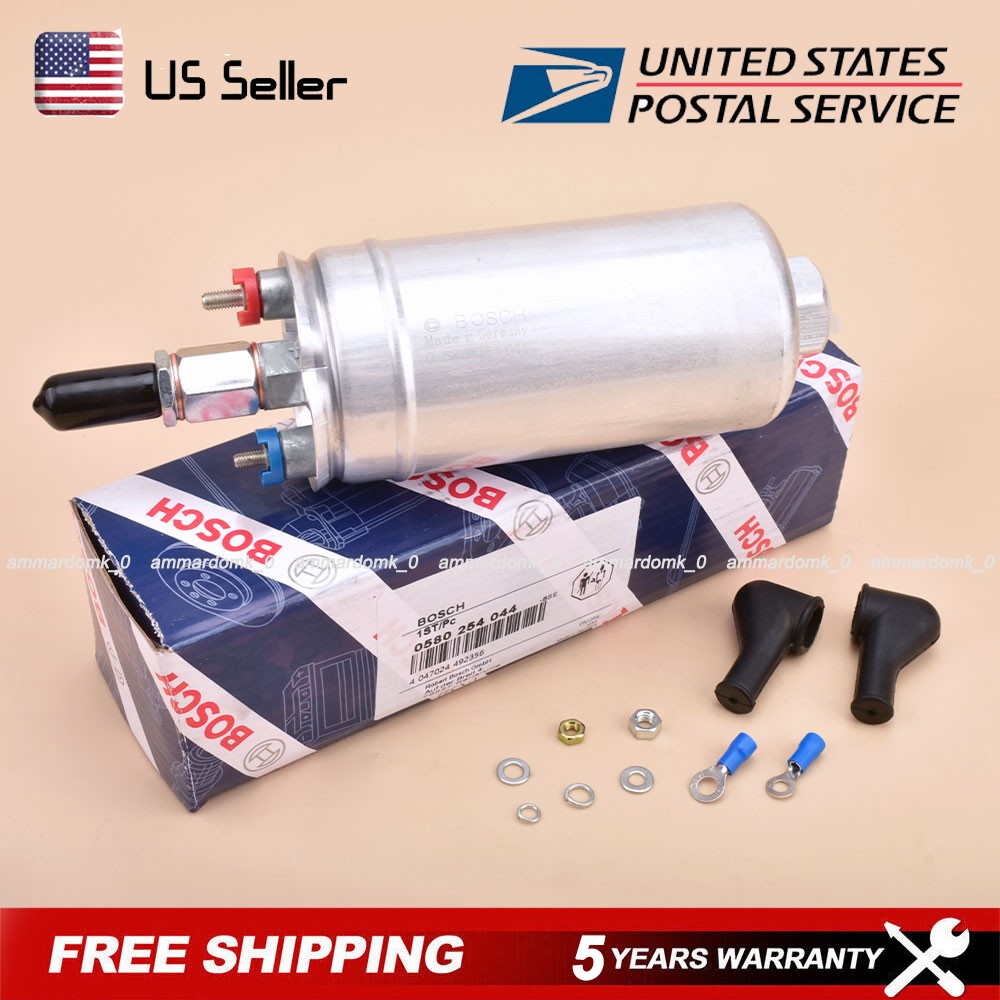

1PCS 044 Racing External Fuel PumpDescription:
Condition: 100% New
Manufacturer Part Number: 0580254044
Fuel Type: Gasoline
Drive Type: Electrical
Fitment Type: Direct ReplacementTechnical Data:
Operating Voltage: 12V
Min Voltage: 8V
Max Voltage: 18V
Operating Pressure: 75PSI(5.0Bar)
PRV Activation（0-130PSI)
Fow Rate: 200 LPH(53 GPH) under 75PSI(5.0 Bar) & 12V
Flow rate: 300 LPH(80 GPH) under 43 PSI(3.0 bar) &12V
Flow rate: 300LPH(80 GPH) under 75PSI(5.0Bab) & 13.5V
Current:15A under 75PSI/12V
High Temperature Reduction: 30 LPH(8 GPH)
Operating temperature range: -20 ℃ - 90 ℃（-68 °F-194 °F)
Storage temperature range: -40 ℃- 70 ℃ (-104 °F-158 °F)
Recommended Horsepower Capabilities: up to 750HP for Naturally Aspirated engines & 650HP for Turbo/Supercharged engines
Inlet : M18x1.5 Metric Thread
Outlet : M12x1.5 Metric Thread
Electrical: Positive M6, Negative M5Features:
Mount in rear center of the car or truck.
Can be installed along with a high performance walbro intank fuel pump or aloneFits for:
ACURA INTEGRA 2001-1990 1.8L
ACURA MDX 2014-2007 3.5L
ACURA NSX 2005-1999 3.0L, 3.2L
ACURA TL 2013-1997 3.5L, 3.7L
HONDA CR-V 2014-1997 2.4L
HONDA CIVIC 2013-1994 1.5L, 1.8L
HONDA CROSSTOUR 2014-2012 2.4L, 3.5L
HONDA ODYSSEY 2013-2004 3.5L
HONDA PILOT 2013-2003 3.5L
HONDA RIDGELINE 2013-2006 3.5L
SUBARU FORESTER 2013-1998 2.5L
SUBARU IMPREZA 2013-1998 2.0L, 2.5L
SUBARU OUTBACK 2013-2011 2.5L, 3.6L
