DOES NOT INCLUDE HOUSING/BEZEL; THAT IS FOR DISPLAY PURPOSES ONLY
Unit is single wire hook up and NOT PLUG & PLAY.
***Please NOTE: item no longer comes with oil temp gauge.Oil temp gauge has been replaced with digital clock.***

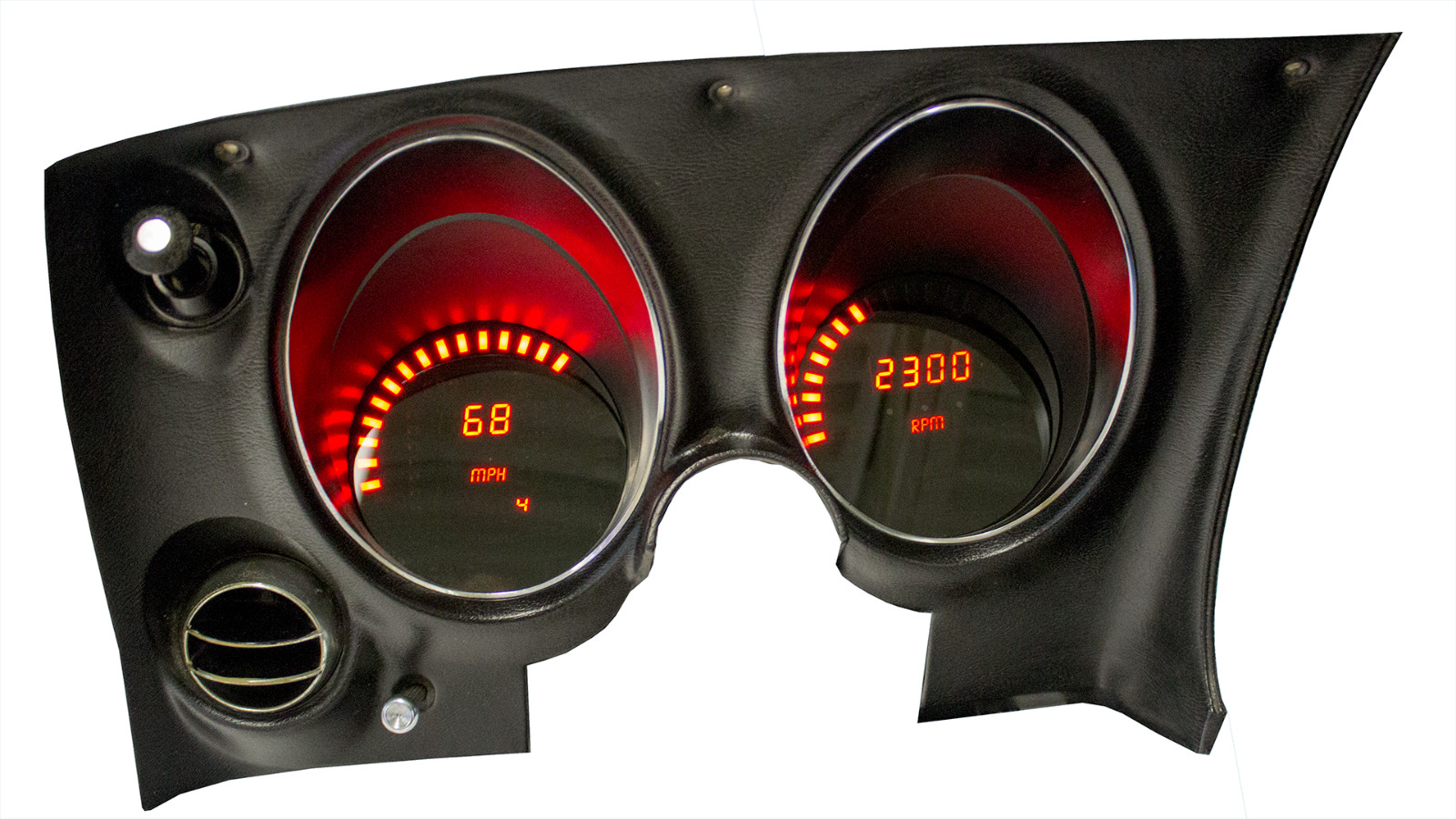

This listing is forRED Leds. Modernize your classic C3 Corvette interior with an INTELLITRONIX LED gauge upgrade. Manufactured to replace your factory gauge panels with long lasting Super Bright LEDs. Factory original C3 Corvette mechanical gauges can be highly inaccurate, faded, and even cease to function...leaving you not knowing what the vital functions of your engine are really doing. But, you can do something about that by modernizing with this Intellitronix digital gauge upgrade kit. Engineered as a complete, direct-fit solution, this upgrade gauge kit bolts to your existing gauge panel and provides precision digital accuracy with all vital engine functions. Bright LED readouts for just the right amount of visual excitement. The 255 MPH speedometer features one-button calibration, regardless of tire size, gear ratio, or transmission. Plus, you'll get instant access to your 0-60 time, 1/4 mile ET and high speed recall. Each kit includes complete circuit boards, Plexiglas lens, mounting hardware, all necessary sending units, and detailed installation instructions. Because it's made in America and includes a limited lifetime manufacturer's warranty, you know you are getting the very best digital gauge solution. The vibrant and crisp easy to read lights will increase safety and give the interior of your C3 a completely refinished look.
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, if your LS engine is 4 cylinder, then please send a note to seller letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.Includes:
255 MPH Includes Odometer, Trip Meter, & One Button Calibration
0-60 time, 1/4 Mile ET And High Speed Recall
Tachometer 0-9,900 RPM In 100 RPM Increments
Water Temperature Display With 100-300 °F Range Sender S8013 Included(Please specify bushing size for sender--we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request--please just send a note to seller; otherwise, you will have to get the correct bushing on your own)
Oil Pressure Display With 0-100 PSI range, Works With Existing Factory GM Sender
Oil Temperature Display With 100-300 °F Range additional Sender S8013 Included(Please specify bushing size for sender--we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request--please just send a note to seller; otherwise, you will have to get the correct bushing on your own)
Voltmeter Display With 8-18 Volt Range, No Sending Unit Required
Fuel Level Display With 0-99% range in 1% increments, Fits Factory GM Sending Unit
Uses Original Factory Turn Signals And High Beam Indicator
Made In The USA
FULL MONEY BACK GUARANTEE IF YOU'RE NOT 100% SATISFIED!!
