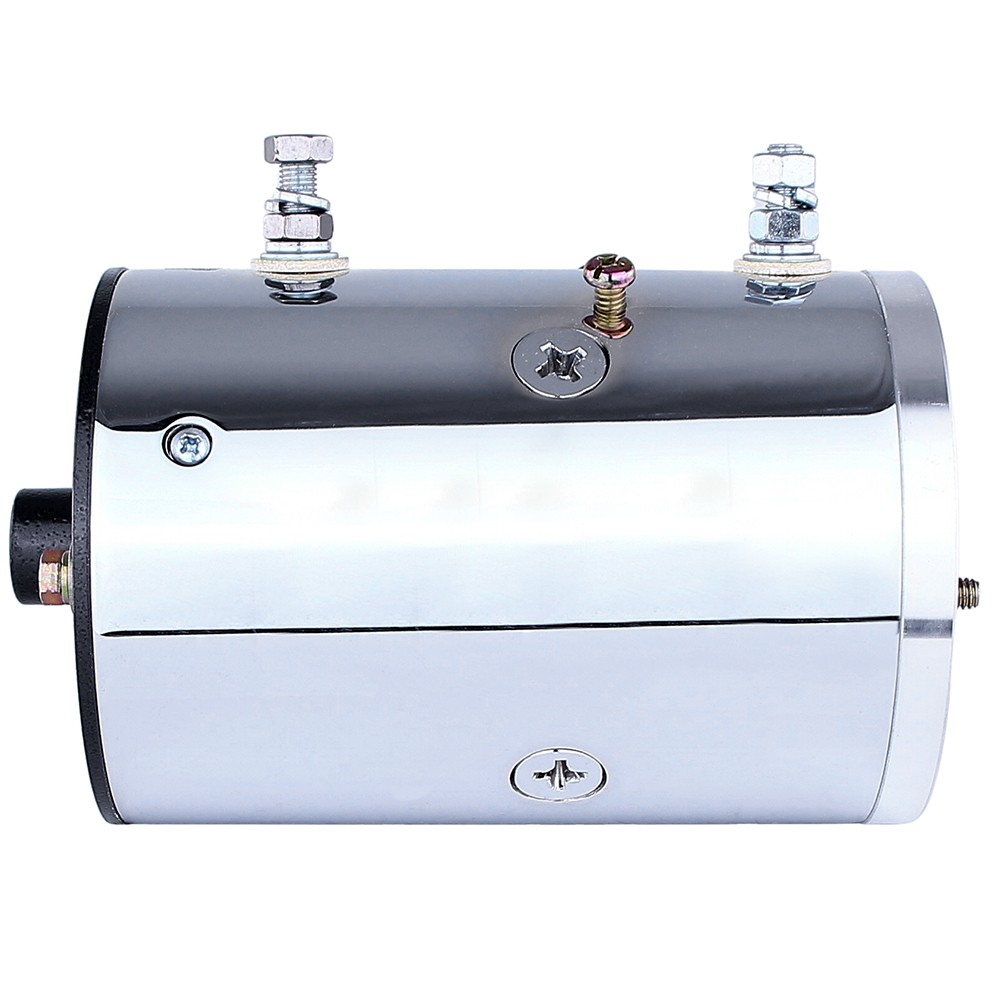

Chrome Hydraulic Motor Pro Hopper Cool Cars 12V CW W-9799C
Replaces Part Numbers & Specifications
OEM PART NUMBERS:
• W-9799C (Prestolite Style Chrome)
• W-9799LC (Prestolite Style Chrome)SPECIFICATIONS:
• Type: DC Hydraulic Pump Motor
• Voltage: 12V DC
• Rotation: Clockwise (CW)
• Shaft: 9 Straight Splines
• Shaft OD: 12.2mm / 0.480in
• Field Housing OD: 113.8mm / 4.480in
• Overall Length: 195mm / 7.677in
• Terminal Size: 5/16-24
• Field Coils: 4 (Parallel High RPM)
• Ground: Double Insulated
• Finish: Chrome
• Weight: 17 lbsFEATURES:
• Chrome HD special 4 field coil motor
• Special duty parallel high RPM field coils
• Heavy double lead wires to brushes
• High RPM balanced armature with welded windings
• Double insulated rear ground post
• Prestolite style old school plus design with improvementsFITS HYDRAULIC SYSTEMS:
• Fenner Fluid Power / SPX Hydraulic Pumps
• Pro Hopper / Cool Cars / Showtime
• Orlie\'s Auto Accessories / Red\'s Pro Series
• Lowrider / Hi-Jacker Competition Hydraulics
