✅ Vehicle Compatibility:
Universal — suitable for 12V automotive, marine, RV, commercial vehicle, and equipment electrical systems requiring a heavy-duty continuous duty 65A normally open (N.O.) SPST relay. Common applications include starter circuits, winches, pumps, trolling motors, and auxiliary power circuits.
🔧 Features & Specs:
Part Type: Continuous Duty SPST Solenoid / High-Current Relay
Voltage: 12V DC
Continuous Current: 65A
Make/Break Rating: 750A make / 100A break at 10 sec on / 30 min off
Circuit: SPST (Single Pole Single Throw) — normally open
Housing: Grey PVC-coated plated steel — IP66 sealed
Contact Studs (Large): 5/16-24 copper — 2 power studs
Coil Studs (Small): #10-32 steel — 2 control circuit studs
Bracket Mounting Holes: 5/16\" x 19/32\" on 2-13/64\" centers
Includes: Hex nuts and lock washers
Package: Bubble Pack (BP suffix)
Certifications: UL Listed, ignition protected
📎 OEM Part Reference:

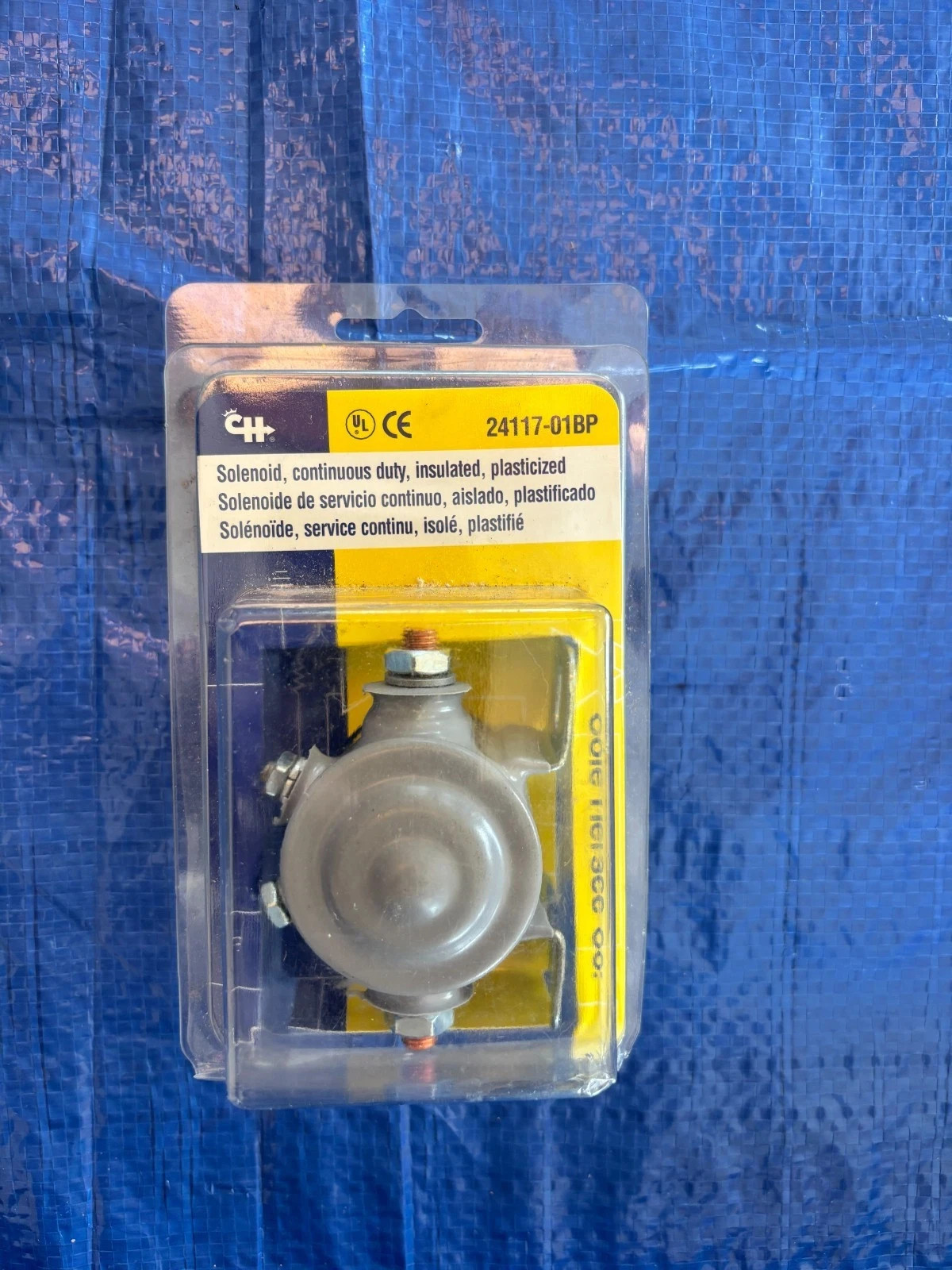

Cole Hersee 24117-01-BP | UPC: 632850246002
📦 Package Includes:
One (1) continuous duty solenoid with hex nuts and lock washers (bubble pack)
⚠️ Notes:
Universal — 12V systems only. Not for 24V applications. Always fuse the power supply wire appropriate to the load. BX suffix = boxed; 24117-01 without suffix = bulk. Verify mounting hole spacing and stud thread sizes match your application.
