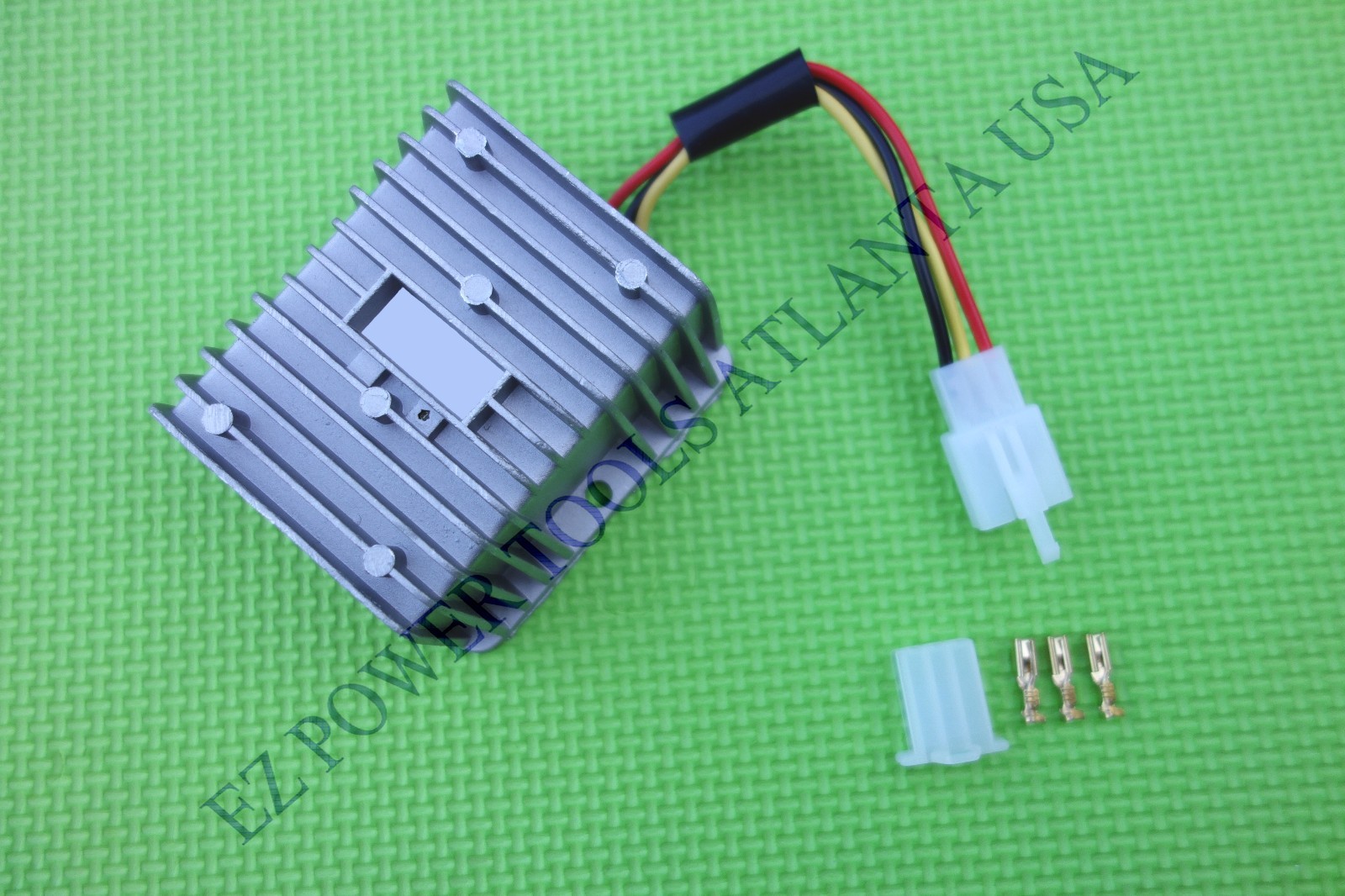

Premium Water & Vibration Proof 72V, 60V, 48V, 36V & 24VDC to 12VDC 10A 120 Watt Voltage Step Down Converter/ Reducer forApplication to Electric Vehicles.Quality Product with Prompt Shipping & Solid After Sales Support! All our orders are shipped out ofAtlanta, USAandEDT is about 1 to 3 business daysfor delivery in most areas of continental states.
Packing Contents: 1 XVoltage Step Down Reducer + Wiring Harness.
Part Number:
EZ-DCSD7212.
Product Features:
- Water and Vibration Proof.
- High Efficiency Pulse-Width Modulation Output.
- Low Input Voltage, Over Input Voltage & Short Circuit Protection.
- Input Reverse Protection.
Technical Specifications:
- Name: DC~DC Step Down Voltage Converter
- Model: EZ-DCSD7212
- Input Voltage: 24V ~ 72V DC
- Output Voltage: 12V ± 0.5V DC
- Rated Output Current: 10A
- Rated Power: 120W
- Operating Temperature: -40°C ~ 85°C
- Idle Working Current: < 60mA
- Power Conversion Efficiency: > 93%
- Overall Outline Size: (77 ± 0.5) mm * (75 ± 0.5) mm * (33 ± 0.25) mm
- Size of 2 Mounting Holes: Ø4.8 ± 0.25mm
- Distance of the Center of 2 Mounting Holes: 65.7 ± 0.5 mm
- Net Weight: 9.8 Oz
Wiring Connections:Red Wire: 72V, 60V, 48V, 36V & 24VDC Input
Yellow Wire: 12VDC Output
Black Wire: Common GroundShipping:
