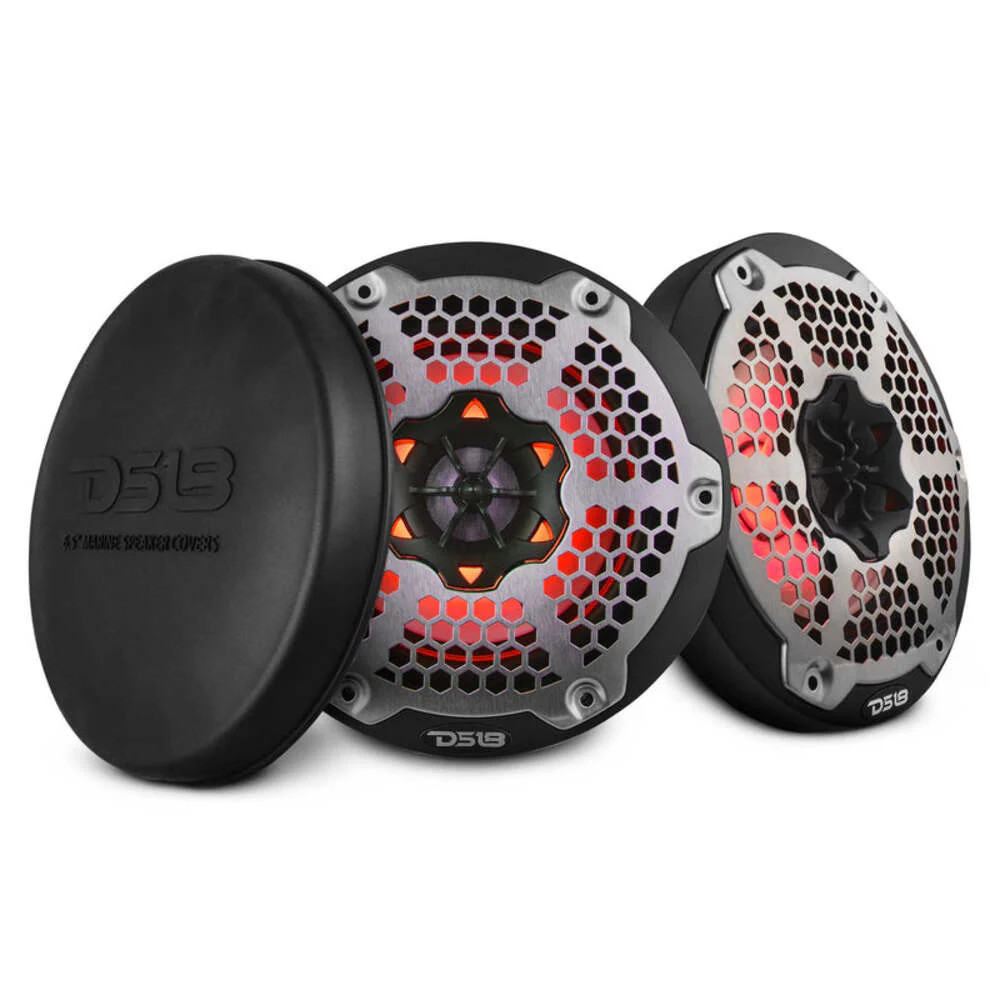

DS18 NXL 6.5\" 2-Way Coaxial Speaker with 100 Watts RMS 4-Ohm RGB LED Lights For Sale - New and Used

Selected Option: BlackDS18 NXL 6.5\" 2-Way Coaxial Marine Speaker w/ 100 Watts RMS 4-Ohm RGB LED Lights



DS18’s NXL-6M is engineered for those who refuse to settle. These speakers deliver breathtaking sound in a cutting-edge design, tailored to withstand the harshest marine and off-road environments.

With IP65 Marine Grade Certification, these beasts endure saltwater, UV rays, and extreme temperatures. The high-temp injection-molded composite construction and detachable stainless-steel mesh grills offer resilience, protection and endless customization. The new silicone cover adds a tough, sleek layer of defense for even more durability.

Pushing an impressive 100W RMS power, these speakers deliver loud, crystal-clear sound. Equipped with Y35 Ferrite Main Magnet and Reverse Neodymium, these speakers deliver astonishingly clear and powerful sound. Thanks to the revolutionary 2-way design that incorporates a 25mm Titanium Dome Tweeter, you\'ll experience the full range of frequencies, capturing every nuance of your favorite tracks. The NXL-6M’s sensitivity of 91dB at 1 w/m, will leave you astounded by the level of detail and precision in every note.

Take your experience up a notch with vibrant RGB LED lighting, fully customizable to match your vibe using the optional DS18 LED-BTC or other RF/BT/Wi-Fi Controllers (sold separately). The NXL-6M dominates. It’s rugged, stylish, and performs like the legend it is.



Features:

• 6.5\" 2-Way Marine Speaker
• RMS Power: 100 Watts/ Each
• Impedance: 4 Ohm
• Ferrite & Neodymium Magnets
• RGB LED Light
• Water Resistant Spanglish Web Manual Diameter: 6.5\" / 165mm

• Nominal Impedance: 4 Ohm

• RMS Power Handling: 100W

• MAX Power Handling: 300W

• Sensitivity (1w/1m): 91dB

• Frequency Response: 45Hz-23KHz

• Recommended HI Pass Crossover: 65 Compliant: Yes, 100% Stable

• Marine Grade Type: IP65

• RGB LED Lights: Yes

• Detachable Grill: Yes

• Silicone Cover Black

Woofer Specifications:

• Voice Coil Diameter: 1.2\" / 30.5mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Cone Material: Injection Molded Polypropylene + UV Compliant

• Surround Material: Butyl (Rubber)

• Basket Material: High Temp Injection Molded Composite ASA with UV Protection coating

• Magnet Weight: 14oz + 0.32oz

Tweeter Specifications:

• Nominal Diameter: 1\" / 25.4mm

• Voice Coil Diameter: 1\" / 25.4mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Diaphragm Material: Titanium + PEI Surround

• Magnet Material: Neodymium (N38H)

• Magnet Weight: 0.54oz

Thiele & Small Parameters:

• Equivalent Volume Vas: 20L / 0.708ft3

• Excursion (one way) Xmax: 8.5 mm

• Free Air Resonance Fs: 75Hz

• Mechanical Factor Qms: 7.823

• Electrical Factor Qes: 1.057

• Total Factor Qts: 0.931

• Moving Mass Mms: 4.122g

• Compliance Cms: 1.081mm/N

• Bl Factor Bl: 2.41

• Voice Coil Inductance Le: 0.543mH

• Cone Area Sd: 114.99cm2

• DC Resistance Re: 3.14 ohms

• Efficiency Bandwidth Product EBP: 70.9


Speaker Measurement:

• Overall Diameter: 6.94\" / 176mm

• Overall Depth: 3.72\" / 94.4mm

• Front Mount Baffle Cutout: 5.31\" / 135mm

• Mounting Depth: 2.5\" / 63.5mm

• Motor Diameter: 3.54\" / 90mm

• Gross Single Unit Weight (lb): 7.5

• Single Unit Box Dimensions W x L x H (Inches): 16.75 x 8.75 x 4.5

• Quantity of Units in Master Carton: 4

• Gross Master Carton Weight (lb): 31.5

• Master Carton Dimensions W x L x H (Inches): 19.5 x 17.5 x 9.75
