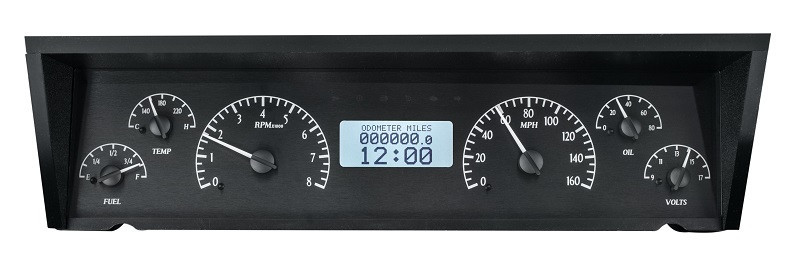

Dakota Digital 1977 - 90 Chevy Impala / Caprice and 1984-86 Pontiac Parisienne VHX InstrumentsVHX-77C-CAP-K-W with BLACK ALLOY style and WHITE backlighting
The new VHX Systems fit directly into the stock instrument bezel of a 1977- 90ChevyCaprice/ Impala and 1984-86 Pontiac Parisienne without modification, adding a wealth of features to this iconic vehicle.
This system requires the use of the stock clear lens to cover it (in addition to the integrated lens). Stock lens is NOT included with this system. Due to the GM dash design, there is no good way to remove the stock lens.
*Uses factory bezel/ trim/ fascia (not included, shown in any pic for demonstration purposes only).
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display response, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at Dakota Digital\'s facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Please scroll through the listing for moreinformation and pictures of this system.
MHX-77C-CAP-K-W Metric system (KM/H and degrees Celsius)is available as a custom option for no additional cost, but may takeapproximately 8-16 weeks to build due to high demand affecting production.If you want to purchasethe metric system, please send us a message when you make your purchase.
VHX System Includes:
Analog Gauges
Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Lighting - Back lit technology ispopular with performance instrumentation due to precise lighting allowingyou see what istrulyimportant when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Center
Standard Displays:
Odometer (One time user settable,Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
Performance Meters:
0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4mile end speed (trap speed)
High speed recall
High RPM recall
Gauges:
Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)
Lighting:Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.
Built-In Indicators
Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
**Not all OEM indicator lamp functions will be replaced.
- If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your Sensors:
Water Temperature - 1/8\" NPT, ground isolated sensor with a10 ftharness.
Oil Pressure - 1/8\" NPT solid state sensor with a 10 ft harness.
Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5\" clearance extending between the cable drive output and any obstruction. Part # 130011(sold separately) allows for relocation of the pulse generator when additional clearance is required.(Tremec and Ford style adaptors available on request.)
Bushings - Each kit comes with 1/8\" to1/4\", 3/8\" and 1/2\" NPT bushingsalong with bushings for12mm and 16mmx 1.5 threads.
Control Box Dimensions - 5.5\" x 3.5\"x 1\"
Calibration
Pushbutton - Dakota Digitalinstrumentsare programmed and operated by the push of a button. Simply mount the included pushbuttonssupplied with yourgaugesina convenientand easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count andthefuel levelgauge. Once properly configuredthese same buttons are used to access the wealth of informationlocated in the Digital Message Centers.
More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.
VHX-77C-CAP with BLACK ALLOY style and WHITE Night:BACK:
