Dakota Digital 1978 - 88 Oldsmobile Cutlass VHX InstrumentsVHX-78O-CUT-S-B with SILVER ALLOY style and BLUE backlighting
The new VHX Systems fit directly into the stock instrument bezel of a 1978- 88 Oldsmobile Cutlass without modification, adding a wealth of features to this iconic vehicle.
Bezel is NOT included. System fits into stock bezel. Bezel shown in any pic is shown for illustrative purposes only.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display response, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at Dakota Digital\'s facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
MHX-78O-CUT-S-B Metric system (KM/H and degrees Celsius)is available as a custom option for no additional cost, but may takeapproximately 8-16 weeks to build due to high demand affecting production.If you want to purchasethe metric system, please send us a note when you make your payment.
VHX System Includes:
Analog Gauges
Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Lighting - Back lit technology ispopular with performance instrumentation due to precise lighting allowingyou see what istrulyimportant when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Center
Standard Displays:
Odometer (One time user settable,Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
Performance Meters:
0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4mile end speed (trap speed)
High speed recall
High RPM recall
Gauges:
Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)
Lighting:Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.
Built-In Indicators
Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Included Sensors:
Water Temperature - 1/8\" NPT, ground isolated sensor with a10 ftharness.
Oil Pressure - 1/8\" NPT solid state sensor with a 10 ft harness.
Cable Drive Speed Sensor/Generator -Replaces GMstyle speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).
Bushings - Each kit comes with 1/8\" to1/4\", 3/8\" and 1/2\" NPT bushingsalong with bushings for12mm and 16mmx 1.5 - Dakota Digitalinstrumentsare programmed and operated by the push of a button. Simply mount the included pushbuttonssupplied with yourgaugesina convenientand easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count andthefuel levelgauge. Once properly configuredthese same buttons are used to access the wealth of informationlocated in the Digital Message Centers.
More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.

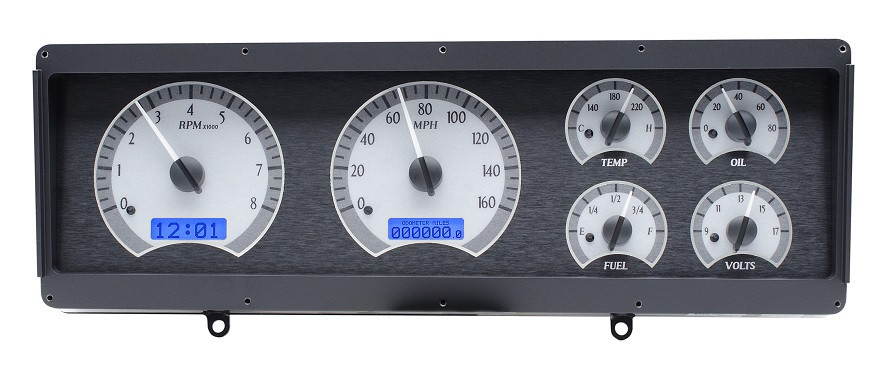

VHX-78O-CUT with SILVER ALLOY style and BLUE display:
At Night:
BACK:
