Click Thumbnails to Enlarge Dakota Digital 1987-1989 Ford Mustang VHX Carbon Fiber/Blue LED Gauge Kit VHX-87F-MUS-C-B SPECIFICATIONS Product SKU: VHX-87F-MUS-C-B Brand: Dakota Digital Condition: New
Stock image. Actual product may vary.
For additional product details or technical questions, please contact us.
Monday-Friday 9AM to 6PM Eastern Time.
Free Ground Shipping
Easy Returns
Secure Payments
Great Customer Service
Questions about this item?
Click here to contact us! Product Details Dakota Digital 1987-1989 Ford Mustang VHX Carbon Fiber/Blue LED Gauge Kit VHX-87F-MUS-C-B

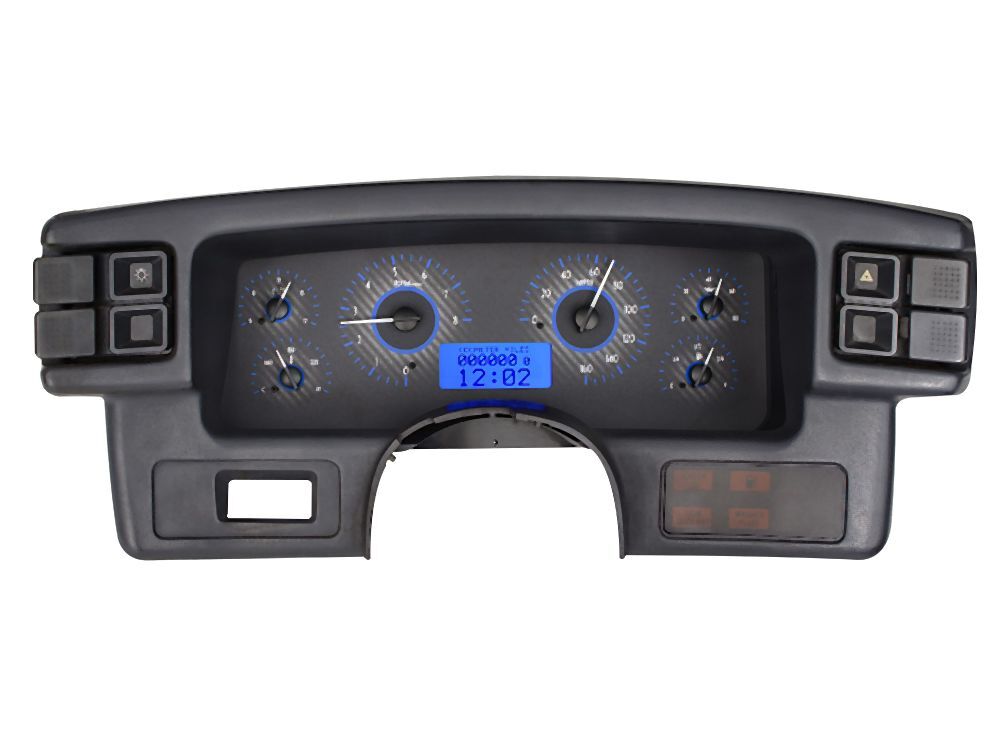

Dakota Digital 1987-1989 Ford Mustang VHX Carbon Fiber/Blue LED Gauge Kit VHX-87F-MUS-C-B
Whether you have a corner-carving road course terror, a mild street cruiser or a 7-second grudge car, this bolt-in instrument system is down to party. Light it up with red, blue or white illumination offset by a Silver or Black Alloy or Carbon Fiber-style gauge face. With six analog gauge readings, hidden indicators and dual LCD message centers, you get a classic look with unrestricted expansion for whatever punishment your Mustang is registered for this weekend.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display response, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!Requires original front bezel.
Analog Gauges
- Speedometer: 0 -120 MPH (optional metric version 0- 195 kmh)
- Tachometer: 0- 8,000 RPM
- Oil Pressure: 0- 80 psi
- Water Temperature: 100- 260°F (optional metric version 40- 120°C)
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Volmeter: 9- 17 VDC
- Lighting: Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Center
Included
- Water Temperature Sensor : 1/8’ NPT, ground isolated sensor with a 10 ft harness.
- Oil Pressure Sensor : 1/8’ NPT solid state sensor with a 10 ft harness.
- Cable Driven Speed Sensor:Replaces OEM style speedometer cables with a 10 ft harness. Sensor requires approximately 5’ clearance extending between the cable drive output and any obstruction.
- Bushings: Each kit comes with 1/8’ to 1/4’, 3/8’ and 1/2’ NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
- Control Box: Dimensions: 5.5’ x 3.5’x 1’
