Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 20\" x 23\" - Overall (H x W): 26.25\" x 26.75\" - Hose Locations (In x Out): Center x Driver - Hose Fittings (In x Out): 1.5\" x 1.75\" - TOC: 1/8-27NPTPlease click on the \"Read more\" link below to view a complete item description with product videos and additional items to upgrade your cooling system.
PART Us Part Information Related Items Need A Different Set Up? (Click A Photo Below) Genuine Champion Cooling Systems Part #AE5356This radiator is designed for either a V6 or a V8 engine but does NOT work on a flathead engine. Features
- Higher density core: cooling rows are spaced 3/8\" apart: giving you 25% more rows within the core than other aluminum radiators sold on and 35% more rows than OEM copper.
- Aluminum dissipates heat more efficiently than copper or brass.
- 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
- Lighter weight.
- Outperforms other 2, 3 and 4 row copper radiators.
- High performance appearance.
- You get \"BIG BLOCK COOLING\" and \"PEACE OF MIND\" when you drive your car with a Champion Cooling Systems radiator.
- You could easily spend $400 - $1,000 more for a radiator of similar quality.
Specifications
- Down Flow Or Cross Flow Type: Down Flow
- Mounting Type: Bracket
- Tank Material: Aluminum
- Core Material: Aluminum
- Overall Height: 26 1/4
- Overall Width: 26 3/4
- Core Height: 20
- Core Width: 23
- Inlet Location: Center
- Inlet Diameter: 1 1/2
- Outlet Location: Driver
- Outlet Diameter: 1 3/4
- Core Row Quantity: 2 Row with 1\" Tubes
- Transmission Oil Cooler Fitting Type: 1/8-27NPT
- Internal Transmission Oil Cooler: Yes
- Filler Neck Attached: Yes
- Core Thickness: 2 1/4
- Core Tube Width: 1

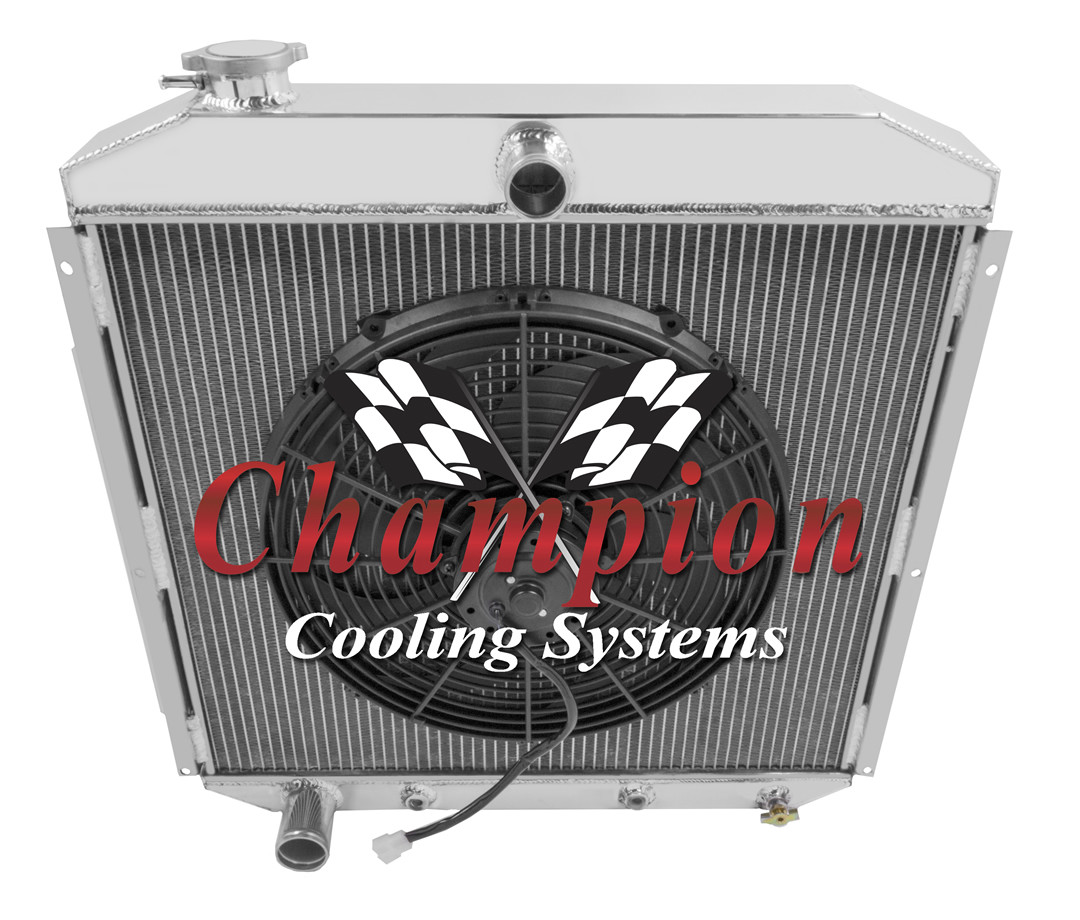

This package includes a 2 Row 1\" Tubes All Aluminum Radiator and a 16\" Economy Series Electric Fan. Shipping Shipping
