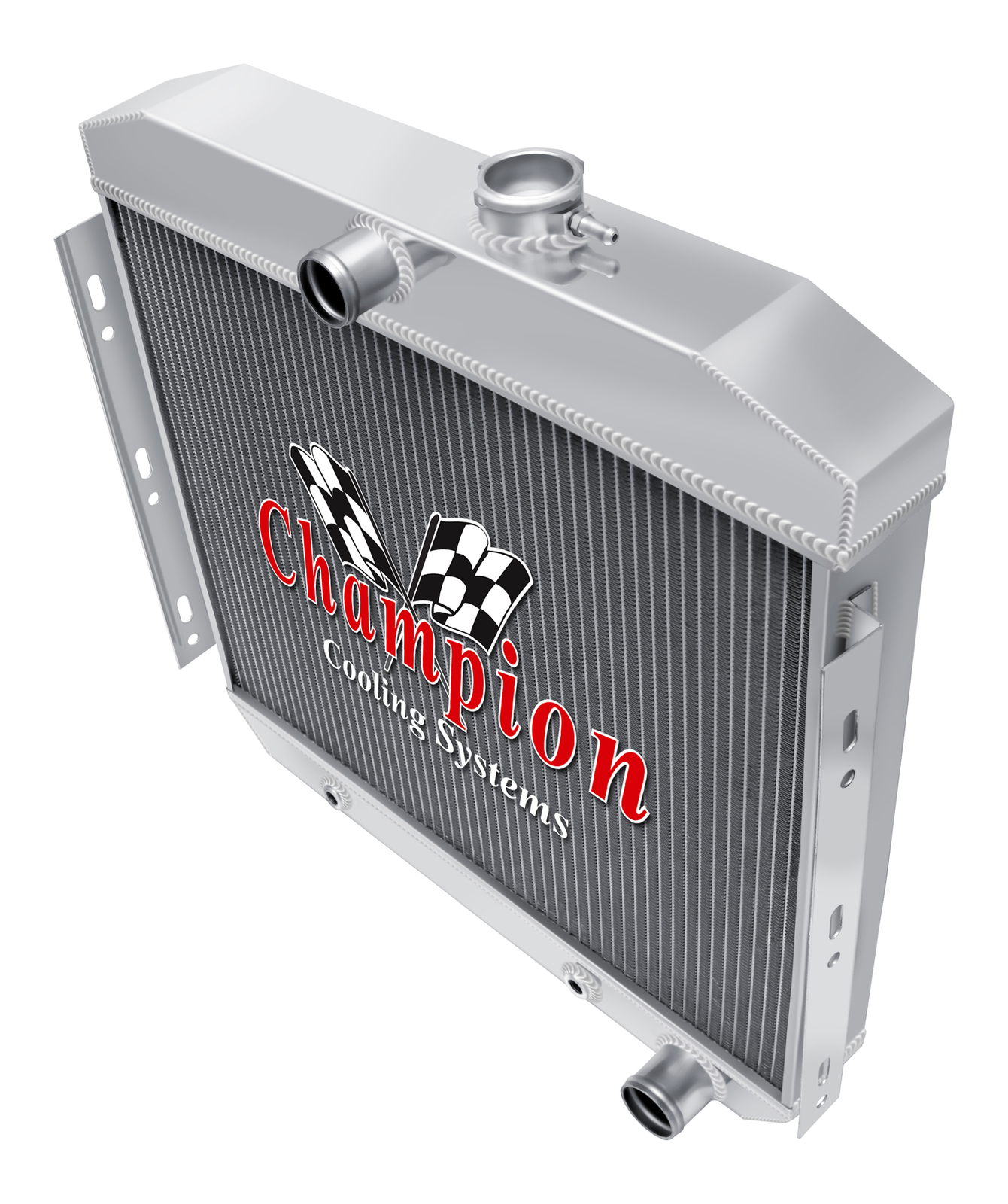

Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 17.25" x 21.5" - Overall (H x W): 23" x 23.5" - Hose Locations (In x Out): Center x Pass - Hose Fittings (In x Out): 1.5" x 1.75" - TOC: 1/2-20 Straight Thread, Inverted FlarePlease click on the "Read more" link below to view a complete item description with product videos and additional items to upgrade your cooling system.
PART Us Part Information Related Items Need A Different Set Up? (Click A Photo Below) Genuine Champion Cooling Systems Part #AE5056This radiator is designed for straight 6 engine mounting. Features
- Higher density core: cooling rows are spaced 3/8" apart: giving you 25% more rows within the core than other aluminum radiators sold on and 35% more rows than OEM copper.
- Aluminum dissipates heat more efficiently than copper or brass.
- 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
- Lighter weight.
- Outperforms other 2, 3 and 4 row copper radiators.
- High performance appearance.
- You get "BIG BLOCK COOLING" and "PEACE OF MIND" when you drive your car with a Champion Cooling Systems radiator.
- You could easily spend $400 - $1,000 more for a radiator of similar quality.
Specifications
- Down Flow Or Cross Flow Type: Down Flow
- Mounting Type: Bracket
- Tank Material: Aluminum
- Core Material: Aluminum
- Overall Height: 23
- Overall Width: 23 1/2
- Core Height: 17 1/4
- Core Width: 21 1/2
- Inlet Location: Center
- Inlet Diameter: 1 1/2
- Outlet Location: Passenger
- Outlet Diameter: 1 3/4
- Core Row Quantity: 2 Row with 1" Tubes
- Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare
- Internal Transmission Oil Cooler: Yes
- Filler Neck Attached: Yes
- Core Thickness: 2 1/4
- Core Tube Width: 1
This package includes a 2 Row 1" Tubes All Aluminum Radiator. Shipping Shipping
